Xi'An Xu&Hui Electromechanical Technology Co., Ltd.
China Manufacturer with main products: Cable Fault Locator, Hipot Tester, Transformer Tester, Switch Tester, CT PT Tester, Earth Tester, High Voltage Pulse Generator, Relay... |

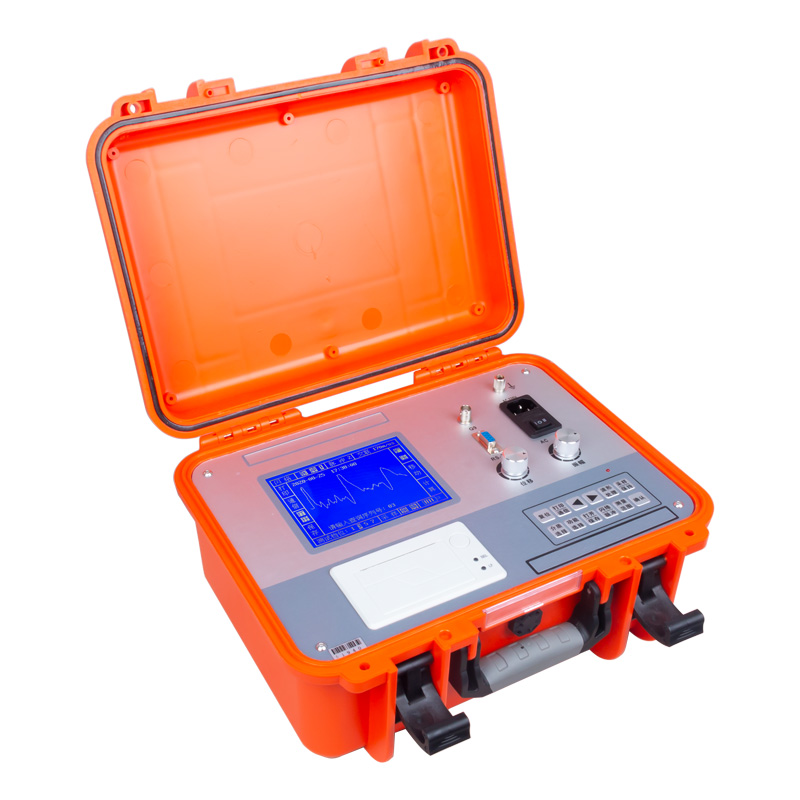

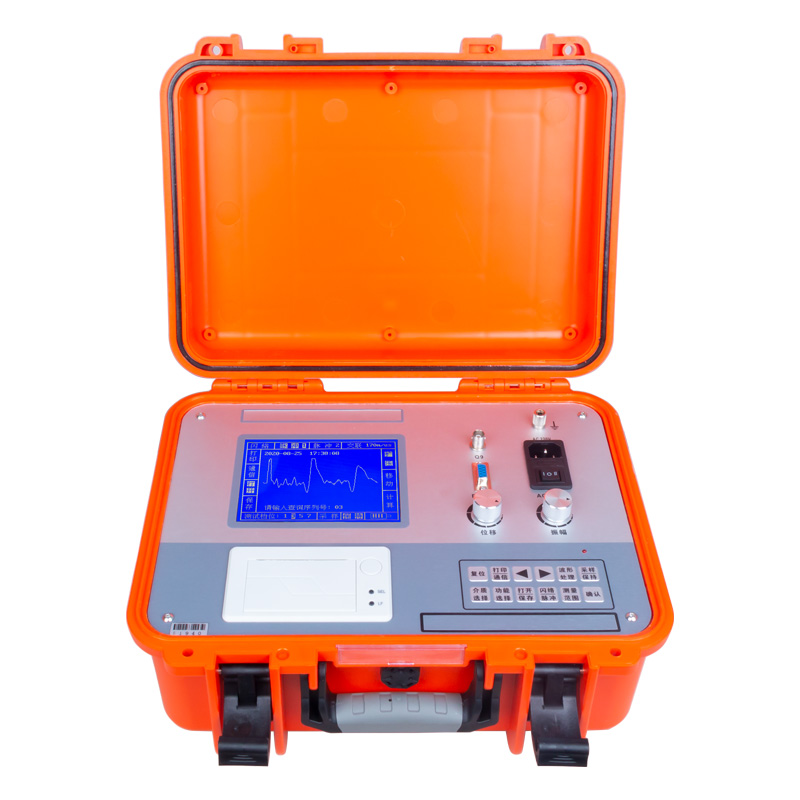

XHGG501B Tdr Cable Fault Locator Cable Testing Equipment
| Supply Ability: | 100 Acre(s) per Quarter |
|---|---|
| Shipping: | Express, sea, air |
| Payment Terms: | T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanxi in China |
| Packaging Details: | wooden case |
Quick Details
- Usage: Auto Testing Machine
- Power: Electronic
- Brand Name: XZH TEST
- Warranty: 1 year
- weight: 4.5 kg
- Model Number: XHGG501B
- product name: cable fault locator
- function: test cable fault
- Dimension: 350mm*280mm*170mm
- Measuring distance: 60km
- Power supply: AC 220V+/-10% 50Hz
- deliver time: 7-15 days
- MOQ: 1 set
- packing: wooden case
Specifications
Main Advantages:
- with distance, speed and resistance measurement function.
- with Micro-printer can print out the wave form and measuring results
- Automatic continuous sampling and never lose any discharge waveform.
Technical details:

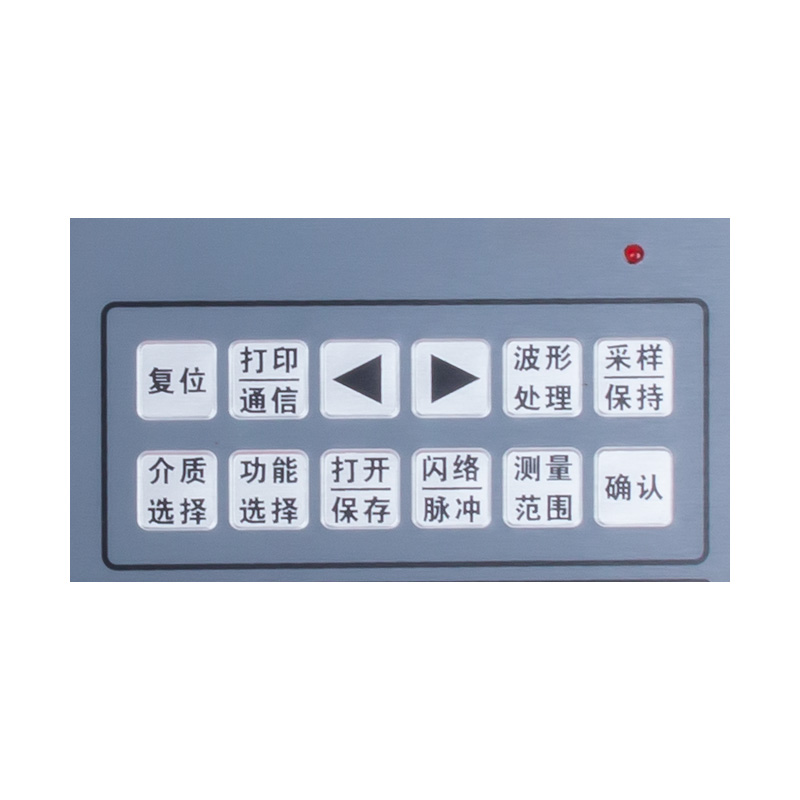

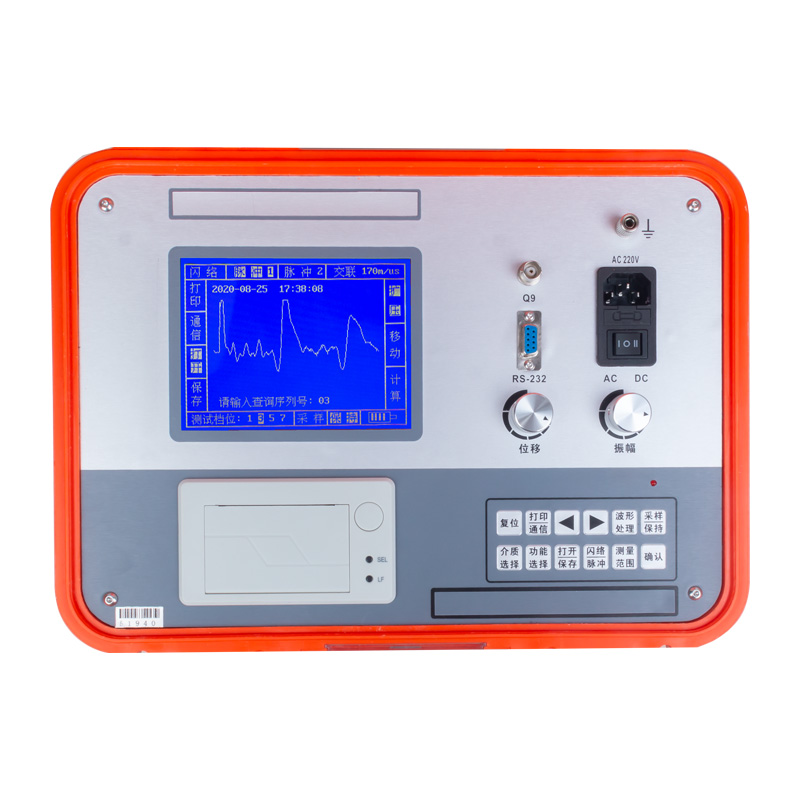

- Display: Industrial grade 5.7"LCD display---Angle view>160,2,S CM centralized control, push button operation, with strong anti -interference ability;.
- Measuring method: TDR Measurement method Flash-over sampling and impulse Current method
- PulseAmplitude: 100Vp-p
- PUlse width: 0.1uS...2uS
- Output impedance:50
- Resolution:0.5m
- Dynamic range:>75db
- Measuring distance:60km
- Dead zone: None
- Accuracy of distance measurement:±1%
- Power supply:AC 220V+/-10% 50Hz
- DC24V/7Ah,Continuous work for6 hours
- Data storage: 10 set
- Weight:4.4kg
- Dimensions: 350mm*280mm*170mm
- Working conditions: temperature: -10℃~ +45℃Relative humidity:90%
