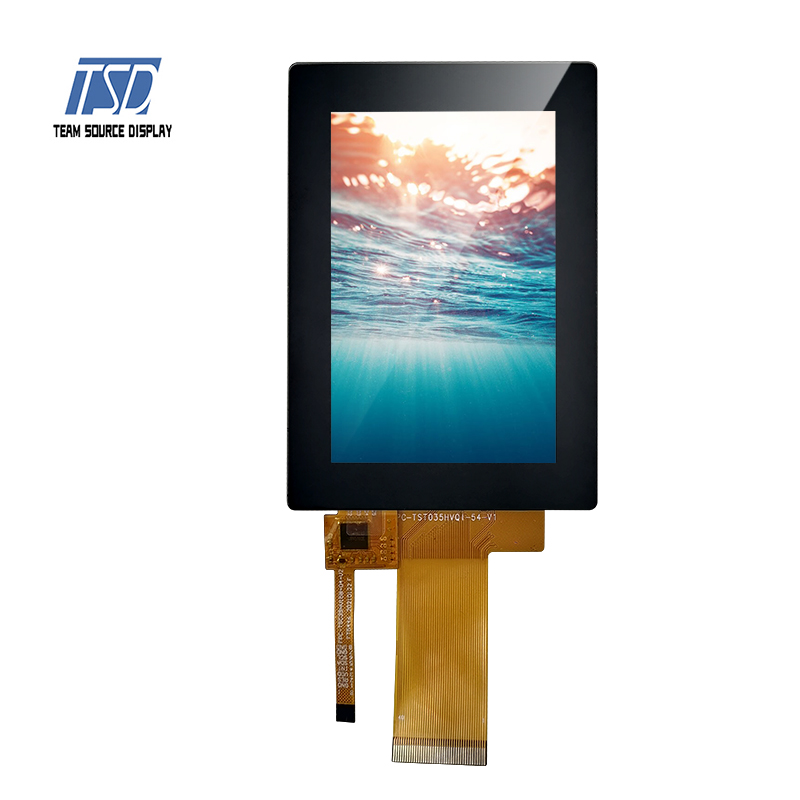

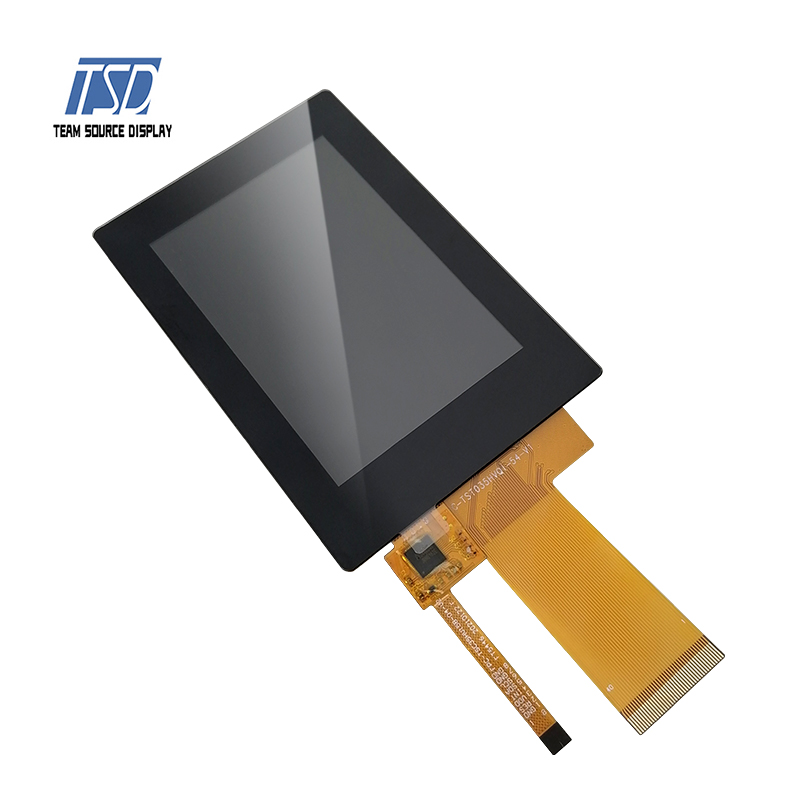

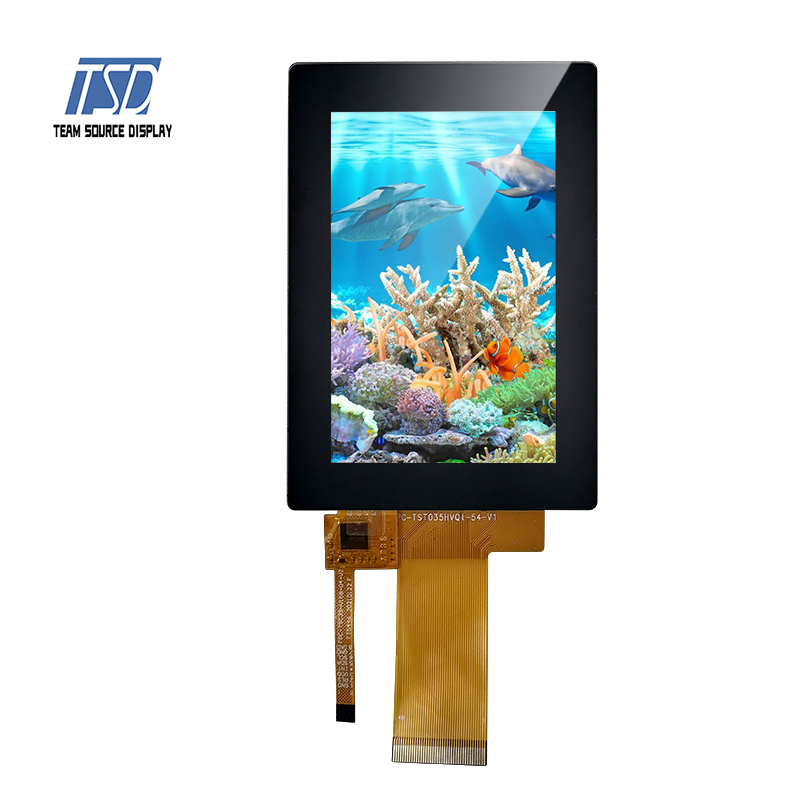

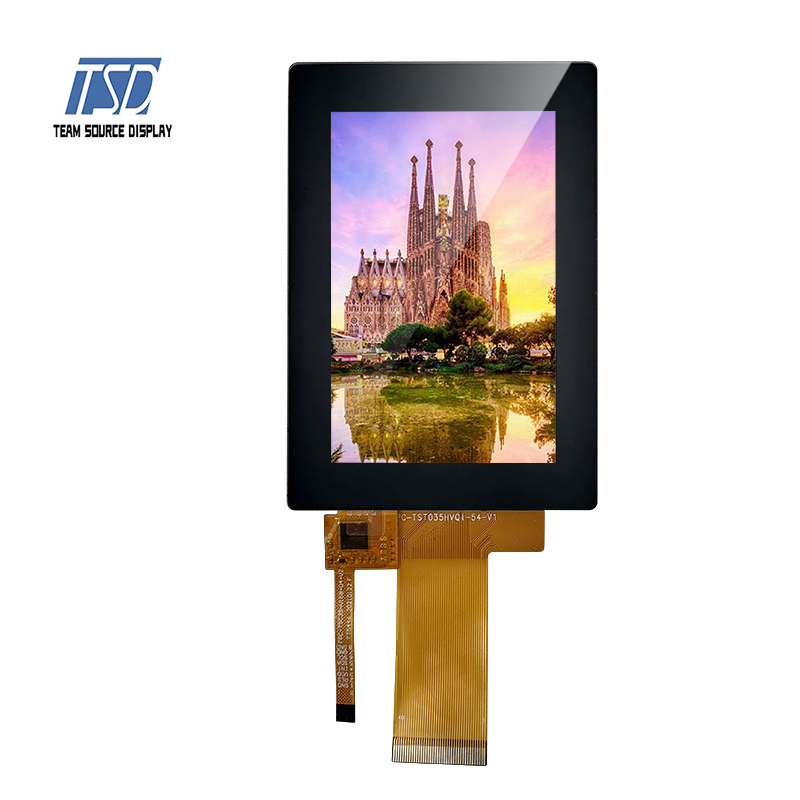

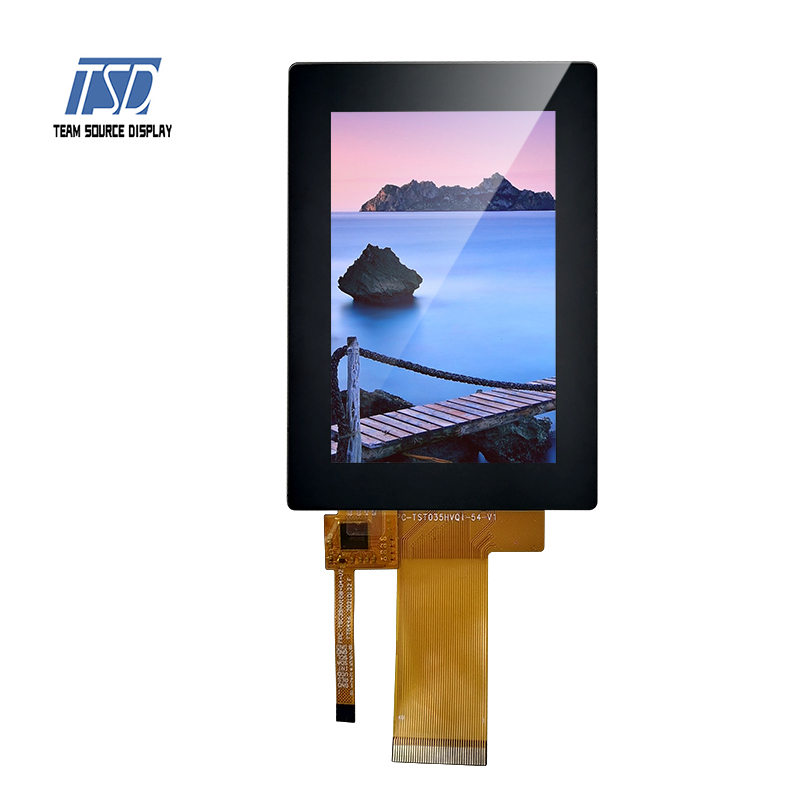

3.5 Inch 320x480 Resolution ILI9488 IC 380nits TFT LCD Display Module with MCU/SPI/SPI+RGB Interface
| FOB Price: | 9.00 - 20.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000,000 Piece(s) per Month |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Quick Details
- Type: TFT
- Brand Name: TSD
- Interface Type: MCU/SPI/SPI+RGB
- Resolution: 320xRGBx480
- application: Smart Home, Industry
- Model Number: TST035HVQI-100C
- Outline mm: 68x100x2.1mm
- Active Area: 48.96x73.44mm
- Viewing: All O'clock
- Driver IC: ILI9488
- Luminance: 380nits
Specifications
3.5 Inch 320x480 Resolution ILI9488 IC 380nits TFT LCD Display Module with MCU/SPI/SPI+RGB Interface
Product Description
Team Source Display model 3.5 inch TST035HVQI-100C is a high quality color TFT LCD panel with capacitive touch screen. this 3.5 inch IPS LCD module was compose of LCD, backlight, driver circuit and FPC. the resolution of this 3.5 inch LCD panel is 800x480, and support connect by TTL/RGB interface and drive by EK9716+EK73002 driver IC.
the outline size of this TST035HVQI-100C is 68x100x2.1mm and the active area size is 48.96x73.44mm. We support to custom the size, color, logo of CTP.
CTP specifications:
COVER GLASS+SENSOR GLASS+FPC
COVER GL ASS: 1.1mm
SENSOR GL ASS: 0.55mm
Connection: FPC: PINGH=0. 5H
IC: FT5446DQS
Resolution: 320*(RGB)*480
Voltage: 2 8-3.3V
Transmittance: ≥86%
Surface hardness: 6H(750gf)
Tem. Op: -20°C^ +70°C, ≤85%RH
Tem. St: -30°C^ +80°C, ≤90%RH
Product Paramenter
| Type | 3.5 Inch TFT LCD Display |
| Model Number | TST035HVQI-100C |
| Resolution | 320xRGBx480 |
| Outline mm | 68x100x2.1mm |
| AA mm | 48.96x73.44mm |
| Interface | MCU/SPI/SPI+RGB |
| Luminance | 380nits |
| Driver IC | ILI9488 |
| Viewing Direction | All O'clock |
| TP/Lens | CTP |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Original Place | Dongguan, CN |
| Brand Name | TSD |
| Warranty Period | 1 year |
Supply Ability |
1500000 per month |
Customized |
FPC, CTP/RTP, logo, color, size etc |
Payment |
T/T Paypal, WU, CC etc. |
| Color Depth | 16.7M |
| Size | 7 inch |
