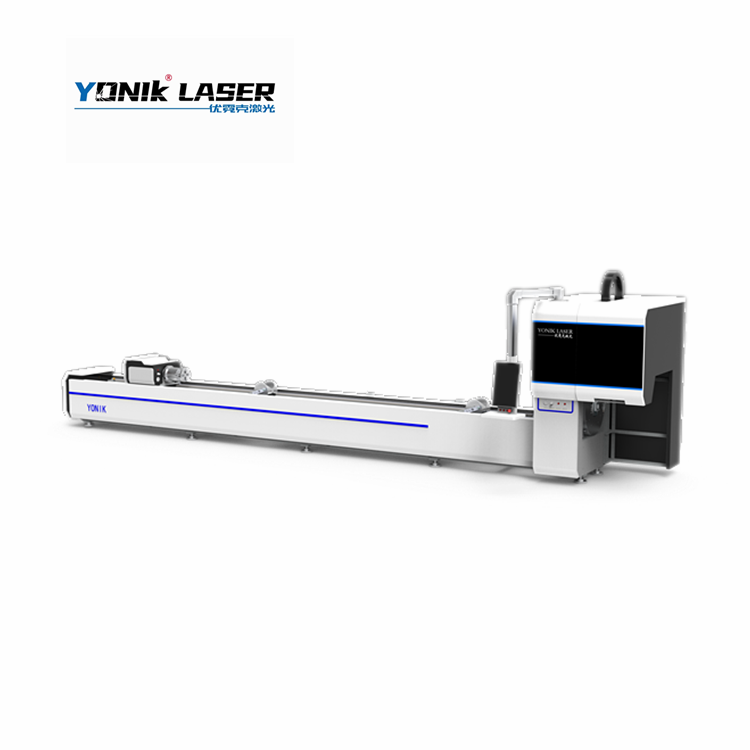

Yonik Universal Laser Pipe Cutting Machine
| FOB Price: | 20000.00 - 40000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set(s) per Month |
| Shipping: | by sea |
| Payment Terms: | T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | standard export package |
Quick Details
- Application: Laser Cutting
- Certification: CCC
- Brand Name: Yonik
- Graphic Format Supported: DWG,DXF
- Applicable Material: Metal
- Laser Type: Fiber Laser
- After-sales Service Provided: Overseas third-party support available
- Model Number: 6016
- Cooling Mode: Water Cooling
- CNC or Not: Yes
- Cutting Speed: 85m/min
- Cutting Area: max length 6500mm , max diameter 350mm
- Cutting Thickness: accordin to customers workpieces
- Condition: New
- name: Laser Pipe Cutting Machine
- model: 6016 6022 6035
- max pipe length: 6500mm
- application: pipe , tube cutting
- single pipe weight: max 480kgs
Specifications
Universal Laser Pipe Cutting Machine
L the chuck has a self-adjusting center function for fast centering clamping.
L Cost-effective, can cut max length 6.5 meters, tail material 90mm.
L Support round pipe, square pipe, rectangular pipe, oval pipe, I-beam, channel steel, angle steel.
Mode |
YONIK-6016E |
YONIK-6022E |
YONIK-6035E |
Profile Cutting Sizes |
Length≤6500mm, Φ15mm≤round pipe diameter≤Φ160mm, 15mm≤Rectangular and square tube diagonals≤ 160mm |
Length≤6500mm, Φ15mm≤round pipe diameter≤Φ220mm, 15mm≤Rectangular and square tube diagonals≤ 220mm |
Length≤6500mm, Φ15mm≤round pipe diameter≤Φ350mm, 15mm≤Rectangular and square tube diagonals≤ 350mm |
Single Pipe Weight |
≤160kgs |
≤240kg |
≤480kg |
X Axis Travel |
240mm |
240mm |
400mm |
Z Axis Travel |
180mm |
180mm |
300mm |
Tail Waste |
90mm |
100mm |
150mm |
X/Y/Z Axis Positioning Accuracy |
±0.05mm/m | ||
X/Y/Z Axis Repositioning Accuracy |
±0.03mm/m | ||
Maximum Acceleration of Three-chuck Walking |
1G | ||
Maximum Speed of Three Chucks |
85m/min | ||
Maximum Rotating Speed of Three Chucks |
100r/min | ||
Other machine lengths and clamping pipe diameters can be customized, optional automatic feeding | |||
