Shenzhen Atgrating Technologies Co., Ltd.
China Manufacturer with main products: Fiber Sensing System |

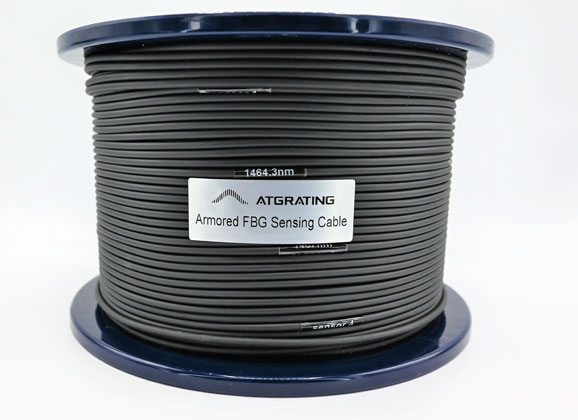

Armored FBG Sensing Cable AtGrating Technologies
| FOB Price: | 100.00 - 1000.00 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Piece(s) per Week |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Brand Name: AtG
- Wavelength: N/A
- Data Rate: N/A
- warranty: N/A
- Connector: N/A
Specifications
Armored
the armored fiber optic cable is a cable with ultra-sensitivity used for quick and easy strain monitoring in secure projects for periphery intrusion warning systems.
An array of FBG sensors composes the core of the cable. the interlayer of the cable is a PE, PU or Polytef coating to protect the sensor and cable structure.
the cable is used to accelerate and simplify processing and figuration intuitively which offers the numerous benefits inherent in every, while improving ruggedness to meet, if not exceed, industry expectations.
the cable specifications listed here are the most common configurations. There are significant variations in cable structure during the manufacturing, including sensors of other wavelengths, terminations of other types of optical connectors, as well as cable availability of custom lengths and customer-defined spacing between sensing points.
Features of Armored FBG Sensing Cable
High Sensitivity
Ruggedized
Easy Handling and Deployment
Long Cable Distance
Application of Armored FBG Sensing Cable
Perimeter Monitoring
Building Security
Energy
Civil Engineering
Specifications of Armored FBG Sensing Cable
Parameters |
Unit |
Values |
Center Wavelength |
nm |
1460 ~ 1610 |
Wavelength Tolerance |
nm |
+/-0.5 |
Strain Sensing Sensitivity |
pm/g |
8 |
FBG Length |
mm |
5~10 |
Reflectivity |
% |
10~90 |
Reflection FWHM |
nm |
0.2~0.3, other |
SLSR |
dB |
≥15 |
Inner-Cable Fiber Type |
-- |
SMF-28 |
MID-Layer Cable Extrusion Material |
-- |
PE, PU, or Teflon with up to 1.5mm OD |
Outer-Cable Diameter |
mm |
3, 4, 5, other |
Pull Strength |
kpsi |
>100 |
Temperature Compensation |
-- |
Yes, with various options |
Optical Connector |
-- |
FC/APC, FC/UPS, other |
as one of, we have types of related products for sale, if you have needs, please contact us.
