Mini Tubular Liquid Level Gauge

FOB Price:	10.00 - 100.00 USD/Piece
Supply Ability:	2,000 Piece(s) per Month
Payment Terms:	D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China

Quick Details

Pressure: High Pressure
Standard or Nonstandard: Standard
Power: Hydraulic
Structure: Single-stage Pump
Brand Name: linkglass

Specifications

Tubular Liquid Level Gauges are designed to view liquid levels using clear or red line Borosilicate tube to observe liquid levels. All valves use a stuffing box configuration to seal the glass tube, and have a ball check shutoff to prevent loss of vessel contents in case of glass failure. Operating pressure and temperatures are subject to the limitations of the tubular gauge glass and washer composition.
Glass tube level gauge is a kind of direct reading liquid level measuring instrument, which is suitable for the spot detection of liquid position in the general liquid storage equipment in the industrial production process. It is simple in structure and accurate in measurement. It is a traditional spot liquid level measuring tool. Generally used for direct detection.

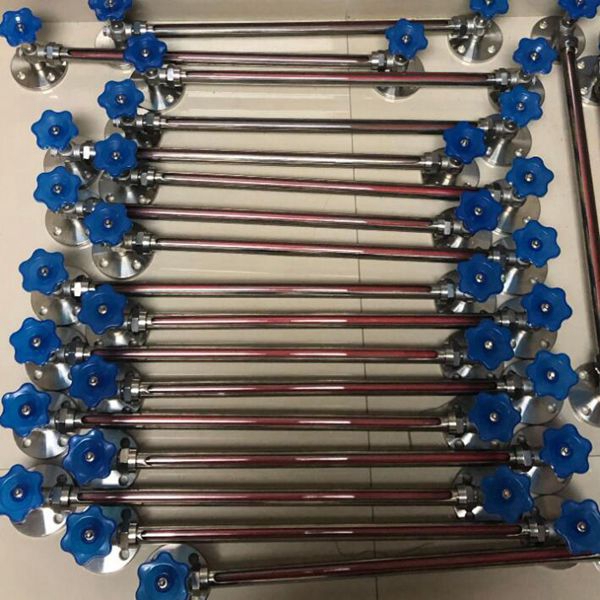

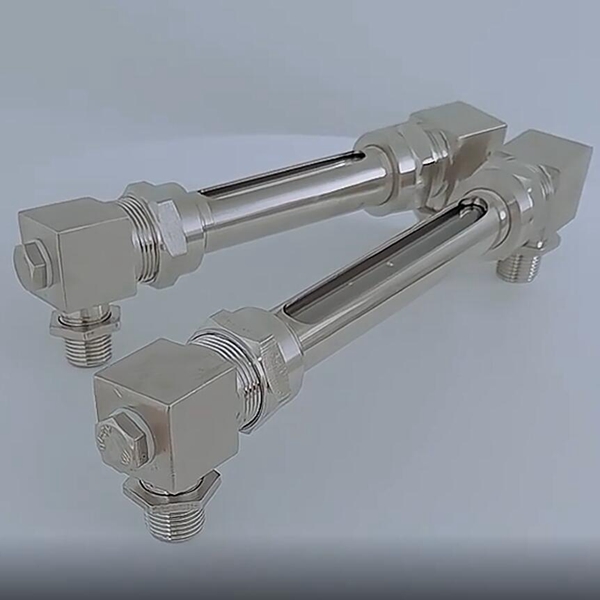

mini tubular liquid level gauge

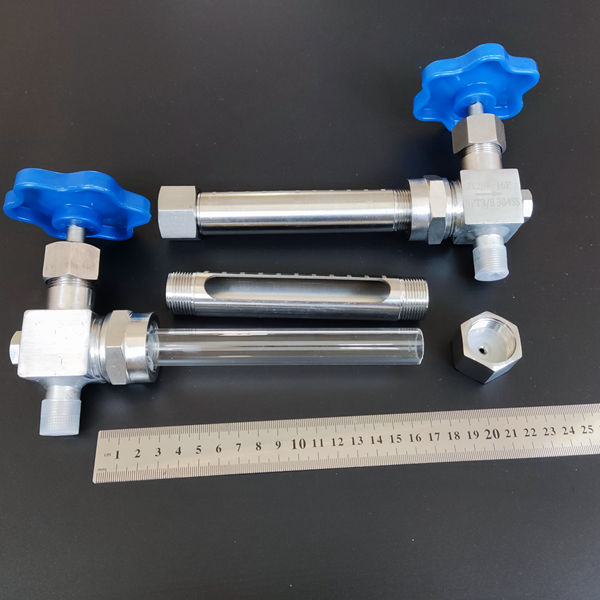

Body material:304SS,316SS,Carbon steel,Bronze,etc
Sealing:Rubber,etc
Glass tube:Borosilicate glass,clear or redline.
Protective tube:Stainless steel or bronze
Connection:Thread connection or Flange connection,1/2''or 3/4''male NPT.

these valve bodies are rated for 500 PSIG at 450F. The actual pressure limitations are of the wall thickness of the glass tube,at the same time the work temperature is the other factors of influence of pressure. these sets are usable with oils and petrochemical liquids. Use with water or steam is not recommended due to the possibility of the steel valves developing rust or corrosion.
the following pressure values are for industry standard high pressure gage glass use. the steam services values are for reference only. for actual steam service, choose stainless steel valves.

Necessary information supplied before place order:
1,Center to center distance.
2,Thread diameter.
3,Body material.
4,Glass tube diameter
Additional information
1,Medium in the tank.
2,Work temperature and work pressure
