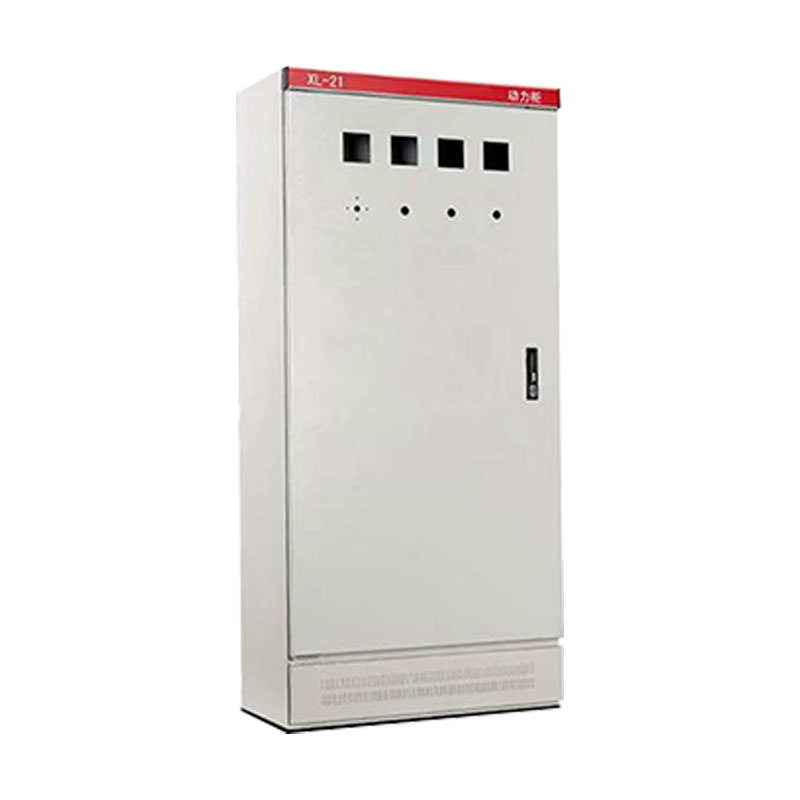

Zhongjun 21 Cabinets, XL Type Power Distribution Cabinet Is Closed Dust-Proof Type, Support Customization
| FOB Price: | 304.50 - 996.00 USD/Piece |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Sichuan in China |
Quick Details
- Brand Name: Zhongjun
- Rated Voltage: 220v/380v
- application: Power distribution cabinet
- Material: Cold-rolled steel plate
- name: 21 cabinets
Specifications
21 cabinets (can be added with outdoor roof for outdoor use)
Material Cold rolled steel plate (customizable stainless steel)
Surface treatment Phosphating primer treatment, powder coating
Mounting plate Galvanized sheet
Color RAL7032 and RAL7035 two textures
Standard configuration door panel, cabinet, sealing strip, mounting plate, door lock
Steel plate thickness Cabinet: 1.5mm (optional 2.0mm)
Door panel: 2.0mm
Mounting plate: 2.5mm, protection class IP65

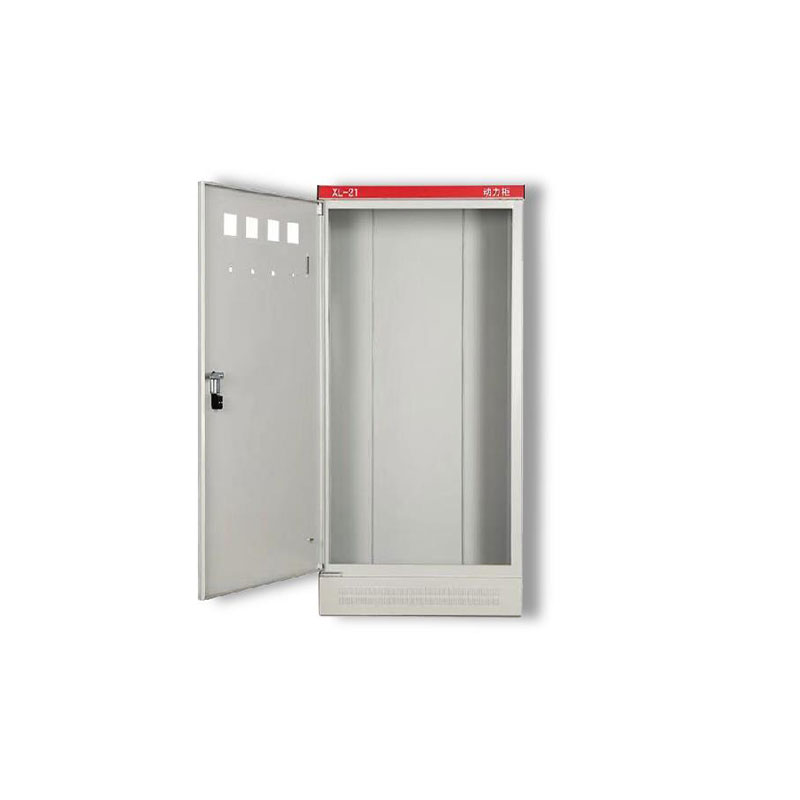

XL type power distribution cabinet is closed and dust-proof, and the cabinet doors are stamped and bent using first-stage cold-rolled steel plate. Different from other cabinet types, it is similar to a large distribution box for lighting and power distribution. It has the characteristics of flexible power distribution scheme, convenient combination, strong practicability, novel structure and convenient maintenance. The front side is a single left-open door (can also open the front and rear doors), the door is equipped with voltmeters, ammeters and other measuring instruments and operating appliances, signal appliances, leakage protection, etc., is a simple structure, reliable operation, low cost power distribution device. The box has good dust resistance, so it is also suitable for use in dusty factory places. Cabinet accessories can be equipped with lifting rings or rollers for easy handling and moving.
Specifications and models:
Carbon steel XL177040, Carbon steel XL188060, Carbon steel XL218060
Stainless steel XL177040, Stainless steel XL188060, Stainless steel XL218060
