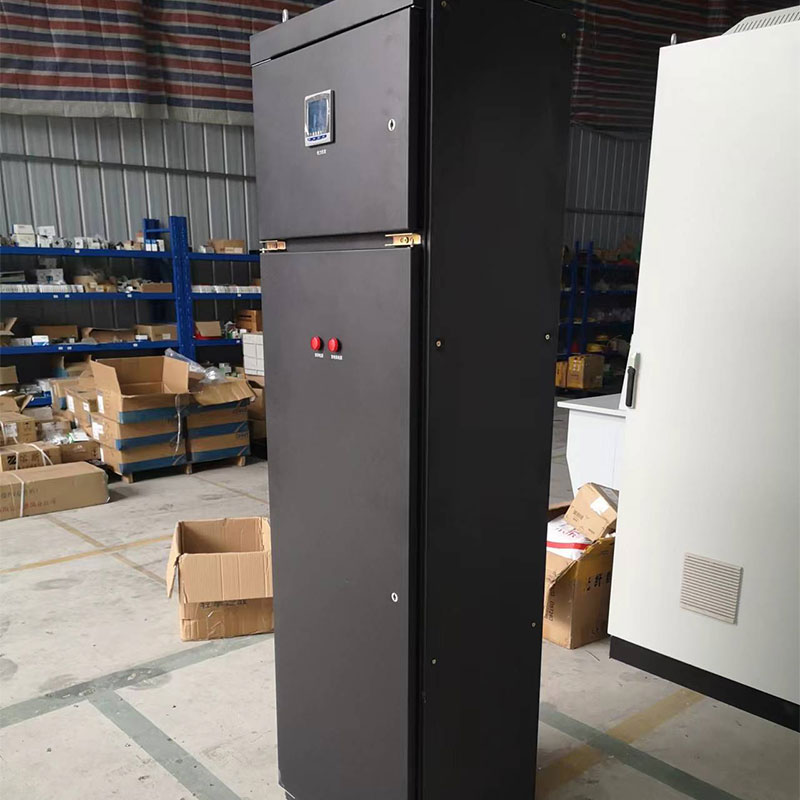

Zhongjun GGD Cabinet, Low-Voltage Switchgear, GGD Type AC Low-Voltage Distribution Cabinet, Support Customization
| FOB Price: | 346.50 - 388.50 USD/Piece |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Sichuan in China |
Quick Details
- Brand Name: Zhongjun
- Rated Voltage: 220v/380v
- application: Power distribution cabinet
- Material: Cold-rolled steel plate
- name: GGD cabinet
Specifications

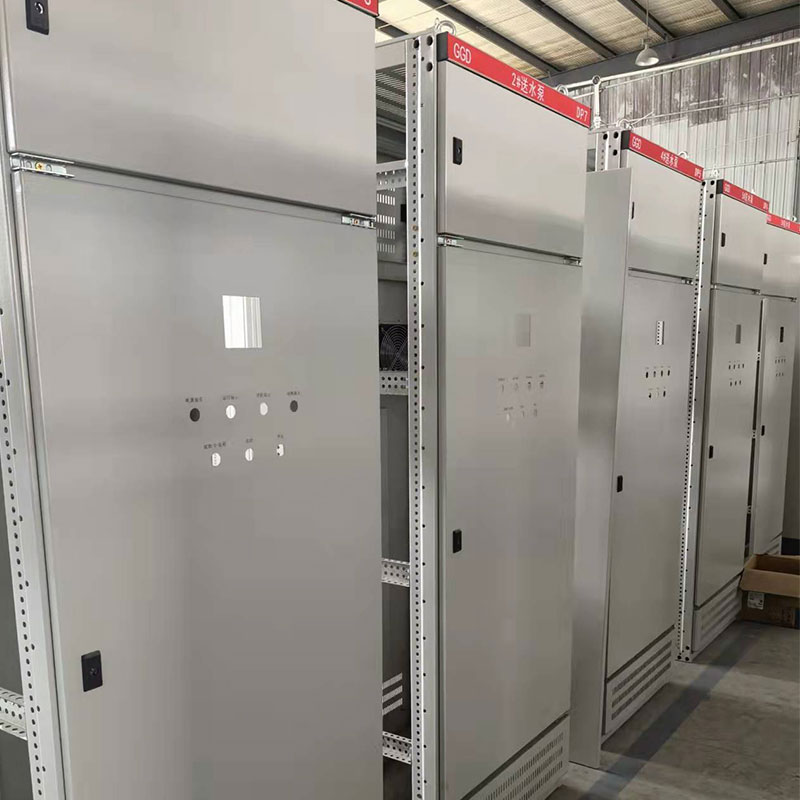

GGD cabinet
Material: Cold-rolled steel plate (other material models are optional)
Surface treatment: the exterior of the cabinet phosphating primer treatment is powder coated
Color: RAL7032 and RAL7035 textures
Mounting plate Galvanized sheet

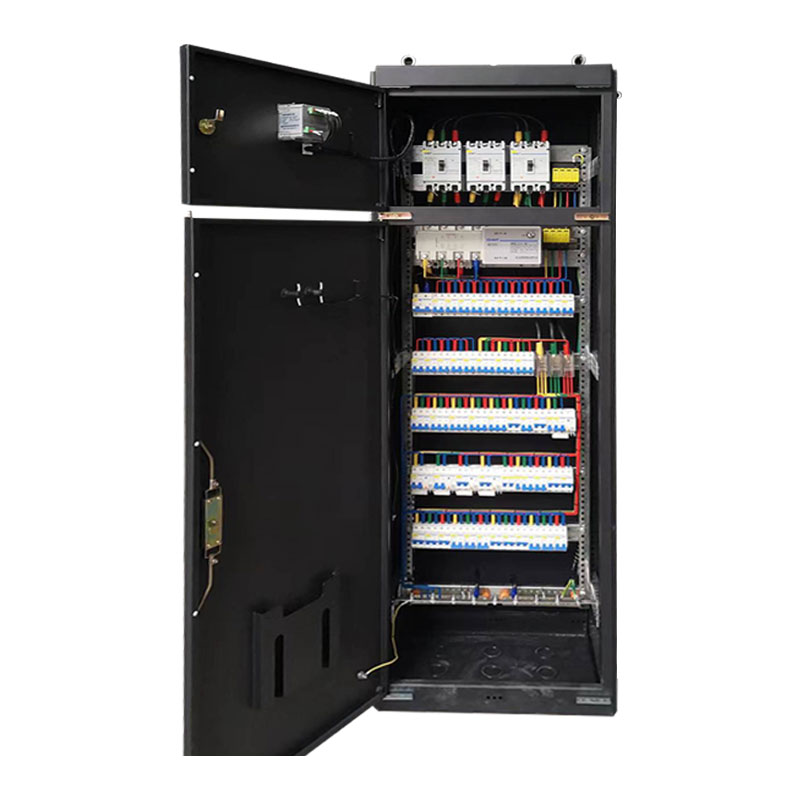

Standard configuration: front door, back panel, mounting plate, cabinet, seal, door lock, side panel (optional)
Steel plate thickness:
Frame: nine-fold profile 1.5mm;
Door panel: 2.0mm;
Back panel, side panel: 1.5mm
Protection class: IP30;
Mounting plate: 2.5mm (optional 3.0mm)
High load-bearing and high strength, suitable for use scenarios with load-bearing requirements. High protection level, suitable for outdoor or wet and other harsh environments to resist vibration, can be used in vehicle vibration environment. Electromagnetic shielding, electrostatic shielding, effective shielding electromagnetic or electrostatic interference. Personalized customization, multi-style, non-standard and other customized combined electric cabinets, suitable for parallel use, the surface of the cabinet can provide silk screen font services according to customer needs. The top plate can be removed and the side panels can be removed, making it easier to work and more convenient. The door panel is very high from the ground, about 25mm, to ensure flexible and smooth door opening
the unique nine-fold profile and the main frame welded by high-strength tee connections ensure the high strength of the cabinet. the special door panel square tube reinforcement system can be screwed to the door panel for easy removal and installation. Dense 25mm pitch modulus holes on the frame ensure flexibility and versatility, and an optional 3.0mm galvanized mounting plate can be pushed into the cabinet from the front using a plastic slider through the rails, and U-shaped folded edges on both sides make the mounting plate stronger and easier to handle. Professional turnout locks, load-bearing rings and a variety of functional accessories highlight the luxurious quality of the cabinet.
Product Specifications:
GGD226060, GGD228060, GGD228080
