Affordable Handheld Air Sampling Pump 1500mA Li Battery Portable CH4 O2 CO H2S Multi Gas Detector Analyzer

FOB Price:	118.00 - 1180.00 USD/Unit
Supply Ability:	200 Unit(s) per Week
Shipping:	Express DHL Fedex Ups
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	Carton box

Quick Details

Brand Name: SA
Weight: 260g/600g(with air pump)
Sampling Method: Natural Diffusion
Size: 130*66*30 mm
Alarm type: Sound/Light/Vibration
Model Number: SA CD4
Product Name: Multi gas detector
Detect gas: CH4/LEL/O2/CO/H2S
Color: Yellow/Orange
Temperature: -20~+50
Certificated: SGS/CE/ISO
Battery: 1500mA Li-battery
Display: LCD
Usage: industry/Personal Safety
Sensor: Infrared/Electrochemical/Catalytic Combustible

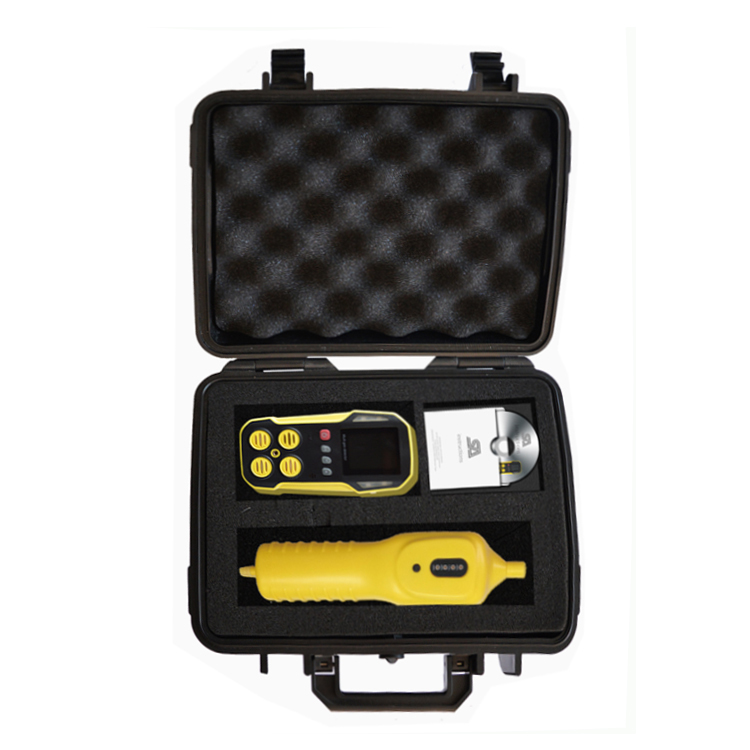

Package: Carton/kit suitcase

Specifications

Handheld Portable 4 Multi Gas Monitor Detector

SA Technology latest model SA500 handheld portable 4 multi gas monitors detector,which is based on advanced infrared and Electrochemical technology for measuring of 100%LEL,1000ppm CO,30%O2 and 100ppm H2S concentration,with optional H2, CO2,SO2.NO,NO2, gas flow items.SA500 4 MultiGas monitors detectorAdopts dual infrared sensor (CH4&CO2) and internal electrochemical sensor(O2,H2S) design achieves easy maintenance in daily operation. It's non-thermostat container design,special correction method greatly eliminate the temperature impact on infrared sensorsthe portable 4 multiGas monitors detectorWill provide a percent by volume reading of the methane (100%CH4) and carbon dioxide (100%CO2) levels.the oxygen (30%O2) readings on the detector may be useful in determining if there is an inbound air leak in the collection system. A portable 4MultiGas monitors detectorEquipped with carbon monoxide (CO) analyzer may be useful for detecting a subsurface fire.Based on these results, adjustments or repairs can be made to restore safe conditions and optimize the heating value of the gas produced.
Compact,rugged and robust,the SA500 portable 4MultiGas monitors detectorIs well-suited for many applications where presence of multi gas needs to be monitored (Underground coal,digesters,methane recovery,waste and water treatment)

DETAILED SPECIFICATIONS

Prepared for measurement of up to 4(6) gases 100% LEL,100% CO2,30% O2,0-1000ppm H2S

with combustion gas/Coal/exhaust gas/Flue leakage gas measurement
Backlit high resolution color display and light sound and vibration alarm portable 4Multi gas monitors detector
Mini-USB interface to PC and SD-card slot for large volume data logging,Internal data storage for measurements
High energy Li-battery,for up to 12 hours operation time

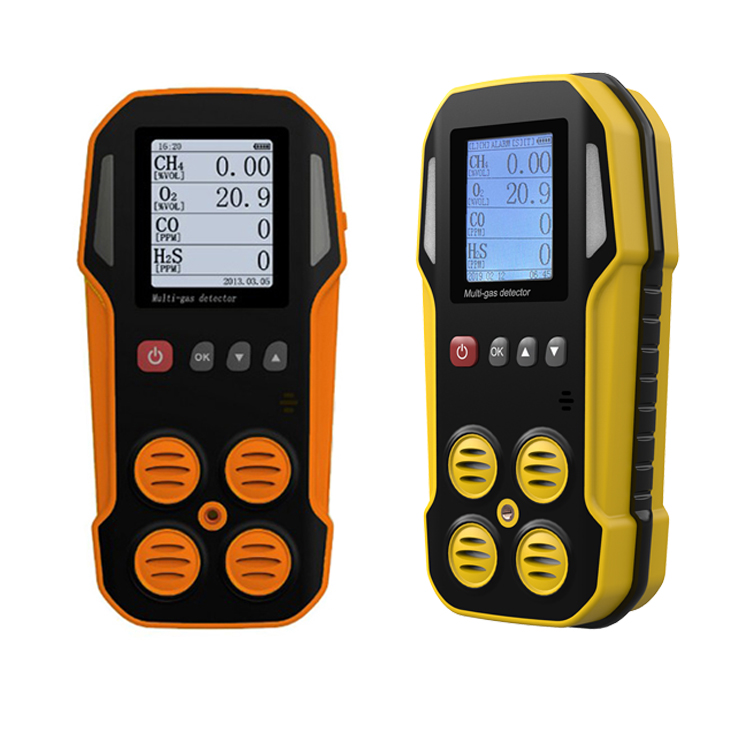

Modern,slim line enclosure with more color choose.like yellow/orange/black,the color can be customized

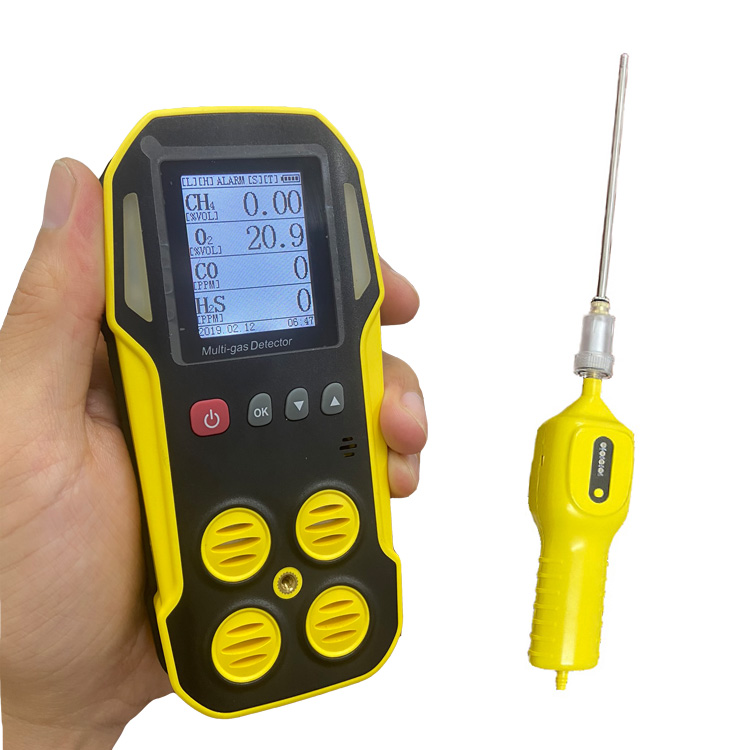

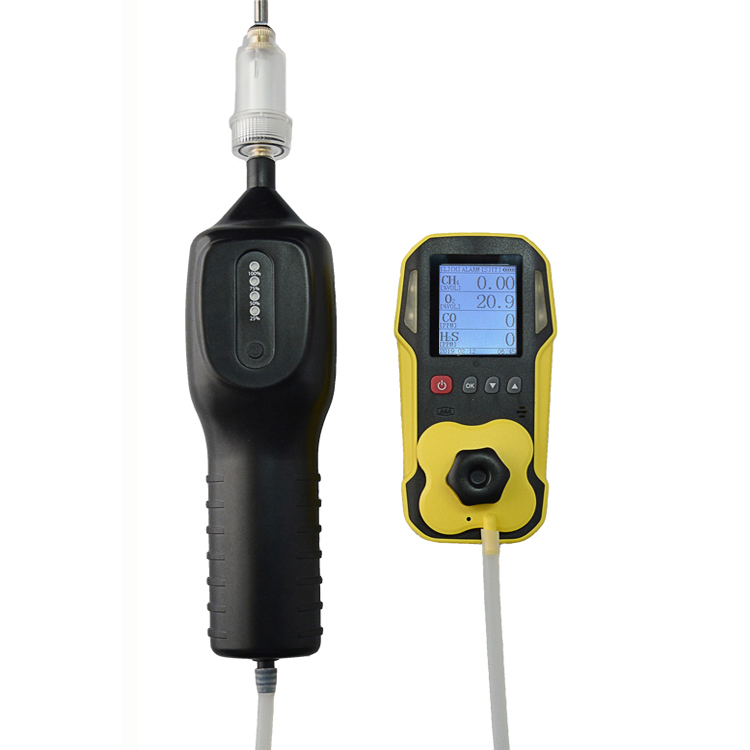

Air samplingExternal pump is available

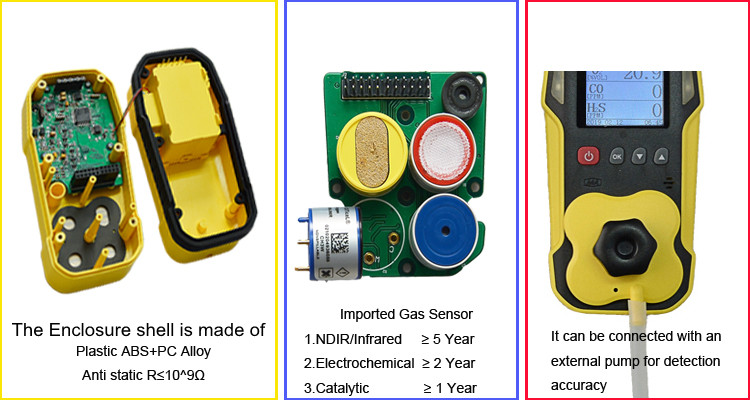

Characters of Portable 4MultiGas monitors detectorRobust design and high quality ABS plastic+PC alloy enclosure,large backlit LCD display screenVisual&audible vibration alarm when the toxic or combustible gas exceeds the setting point
Loud 75dB audible alarm,vibrating alarm,dual color red visual alarm
Long continuous working hours more than 12 hours after fully recharged
Imported high sensitive sensor guarantee the readings quick and accuracy of Portable 4MultiGas monitors detector
Wide range models,like portable multi gasAnalyzeror single gasAnalyzer,4 in 1 gasAnalyzer,3 in 1 gasAnalyzer,2 in 1 gasAnalyzer
Alarm Support Full range adjustable,and STEL,TWA alarm
up to 5 gas can be choose as target gas(option),(EX,CH4,CO,O2,CO2,H2S,SO2,H2,NH3,NO2,LEL)
Long life service,1500MA rechargeable lithium battery portable 4 multiGas monitors detector
High protection level,IP54/66/67 for optional,Water proof and dust proof portable 4MultiGas monitors detector
Self-diagnose(Auto calibration),Zero adjustment,Battery level indication,Flashlight,Handheld,LCD backlight
Plug-in Imported high sensitive sensor technology with data logging,like NDIR infrared,electrochemical gas sensor for choosing

Benefits:[High Sensitive&Accurate Measurement]Handheld 4MultiGas monitors detectorfor detecting 5 gases, measurement range:100%CH4,100%CO2,30%O2,1000ppmCO and 100ppm H2S with resolution:0.5%vol/1ppm
[High&Low alarm function with triple alarm]WHen gas concentration reach preset high or low alarm value, the multi 4 gas monitor will sound,light alarm with vibration,STEL/TWA alarm value is adjustable based on your requirements.

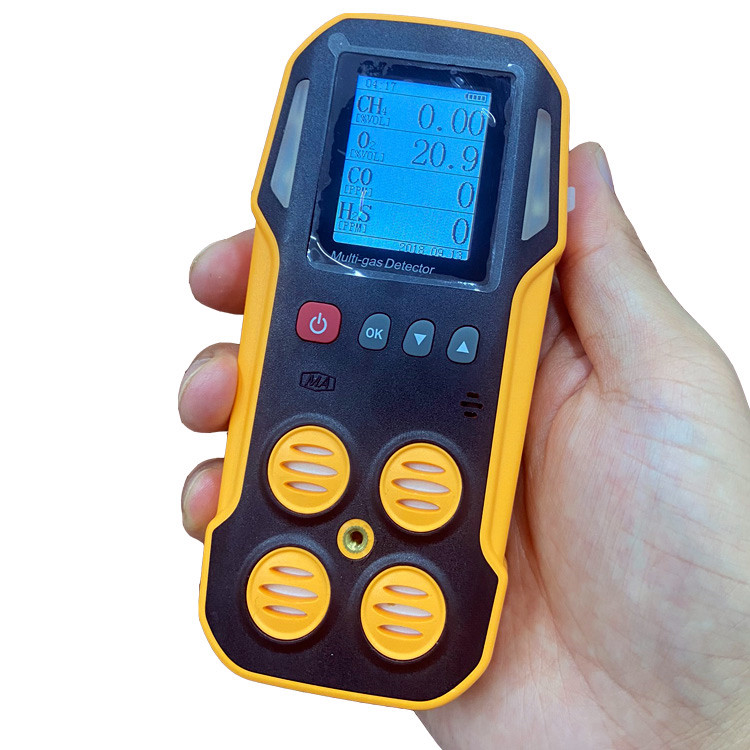

[Digital LCD display with backlight function]High density digital LCD screen display real time gas concentration value, backlight function is suitable for operation in dark areas;with compact size and unique alligator clip design,it is convenient for user to carry and operate.SupportAutomatic calibration.

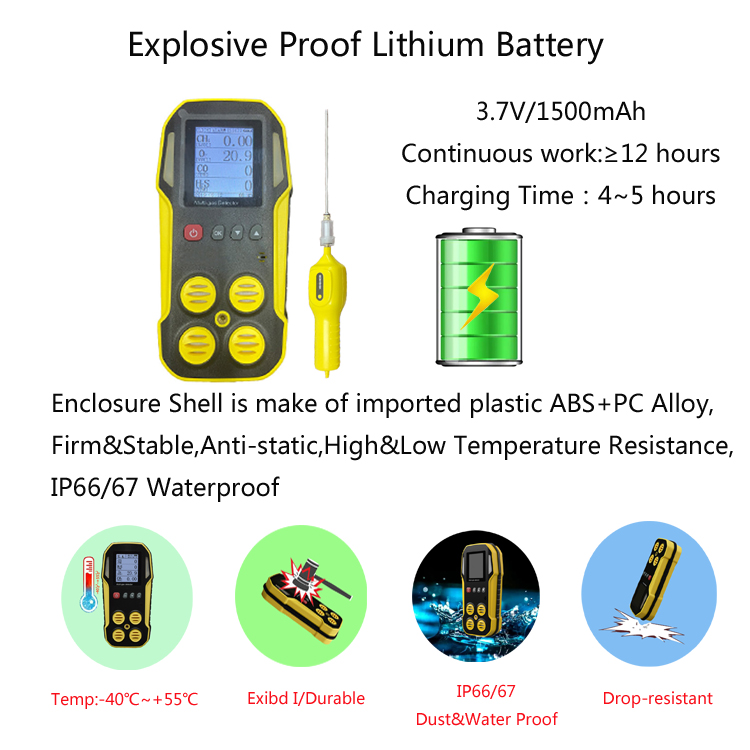

[Durable Power Supply]Built-in rechargeable 3.7V/1500mAh Li-battery portable 4 multiGas monitors detectorAnalyzer,which can work continuously more than 12 hours with full charge.
[Data Logger&Transfer]this portable 4MultiGas monitors detectorDevices record and transfer the gas data in real time,with the record memory 16M,the memory time is adjustable between 0.1 minute to 10 minute.

Usage
Portable MULTI portable 4Multi gas monitors detectorTester DETECTOR SUITABLE for:Oil&GAS,Petroleum,Chemical Industry,Environmental Protection,Metallurgy, Refining&Chemical Industry,Natural Gas,Biochemical Medicine,Agriculture,Fire Fighting, Archaeology,Power energy.etc.1.Monitoring of gas from agriculture digesters
2.Monitoring of biogas in the agri-food industry
3.Monitoring of the biogas produced in water treatment plants
