Home >Products Catalog > Explosion Proof LED Emergency Exit Sign Lights SES Series

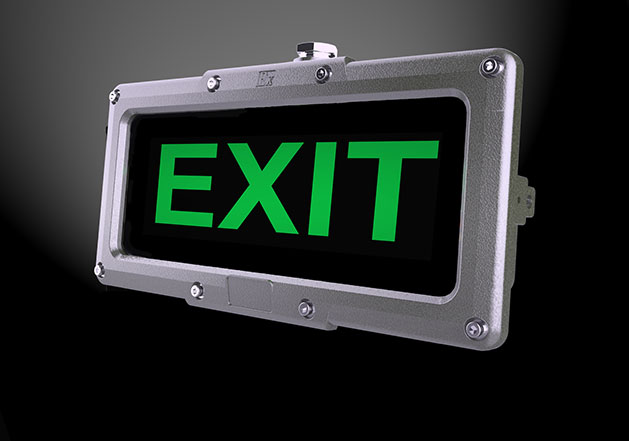

Explosion Proof LED Emergency Exit Sign Lights SES Series

FOB Price:	10.00 - 1000.00 USD/Set

In Stock

Inquiry Now

Quick Details

Light Source: /
Type: /
Color: /
Material: /
Brand Name: SUREALL

Specifications

Advantages

Class I, Division 1, Groups C, D

Ex tD A21 T80℃ Db IP66

Class I, Division 2, Groups A, B, C, D

Zone 1, Zone 2

Class II, Division 1, Groups E, F, G

Zone 21, Zone 22

Class II, Division 2, Groups F, G

-40℃ ~ +55℃

Class III

Type 4X,IP66

Ex d e IIC T6 GB

LED 3W/5W

for purpose of guiding the exit direction, with battery-powered lighting exit signs, SES series explosion proof exit sign request small quantity but play vital usage for explosion proof lighting,, paint booth lights and gas station canopy lights. Protected by flame proof housing, hazard class division of this flame proof light can be class 1 div 1 and class 1 div 2 emergency lighting and this model work as zone 1 atex rating explosion proof exit light.

Features

Explosion Proof Emergency Lights SES Series

Tailor-made glass front-panel with "EXIT" mark or arrows

Apch7g

Back and upside chamber for convenient connection in narrow space

Apch7r

Brilliant heat dissipation structure for long lasting life

Apel Emergency Light

Selection Table

Explosion Proof Emergency Lights SES Series

Data Sheet

Explosion Proof Emergency Lights SES Series

Compliance	IEC Standard IEC60079-0, IEC60079-1, IEC60079-7, IEC60079-11 Ex d e IIC T6 GB Ex tD IIIB A21 T80℃ Db IP66 Zone 1, Zone 2 Zone 21, Zone 22
	EU Standard EN60079-0, EN60079-1, EN60079-7, EN60079-11 II 2 G Ex d e IIC T6 GB II 2 D Ex tD A21 T80℃ Db IP66 Zone 1, Zone 2 Zone 21, Zone 22
	NEC & CEC Standard Class I, Division 1, Groups C, D Class I, Division 2, Groups A, B, C, D Class II, Division 1, Groups E, F, G Class II, Division 2, Groups F, G Class III
	UL Standard UL844, UL1598, UL1598A
	CSA Standard CSA C22.2 No.137
Rated Voltage	220V AC 50/60Hz
Wattage(W)	3W / 5W
Emergency Duration	90min / 180min
Battery Specification	Lithium battery
IP Grade	Wet Locations, Type 4X, IP66
Ambient Temperature	-40℃~ +55℃ /-40°F ~ +131°F
Cable Entry	NPT 3/4" or M25X1.5
Terminals	Terminal blocks ≤ 2.5mm2, cable diameter 10-14mm
Mounting Type	Wall Bracket

as one of, we can offer different kinds of for sale, if you have needs, please leave us a message.
