1.8m UV Hybrid Printer with White Varnish Colors GEN6 Heads

FOB Price:	27800.00 - 28800.00 USD/Set
Supply Ability:	50 Set(s) per Month
Shipping:	port Shenzhen
Payment Terms:	L/C, D/A, D/P, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	polywood

Quick Details

Type: Inkjet Printer
Color & Page: Multicolor
Automatic Grade: Automatic
Usage: Paper Printer,flatbed and roll to roll
Brand Name: YOTTA
Condition: New
Certification: CE
Weight: 1200 KG
Dimensions(L*W*H): 4.55*1.35*1.42m
Gross Power: 6000W
Voltage: 220V
Model Number: YD-H1800R6
Plate Type: Flatbed Printer
Printhead: Ricoh GEN6
Colors: CMYKLCLMWV
Print Width: 1.8m
Materials: flatbed and roll to roll
Material Thickness:: 50mm
RIP Software: Photoprint or Onyx
Warranty:: 1year

Specifications

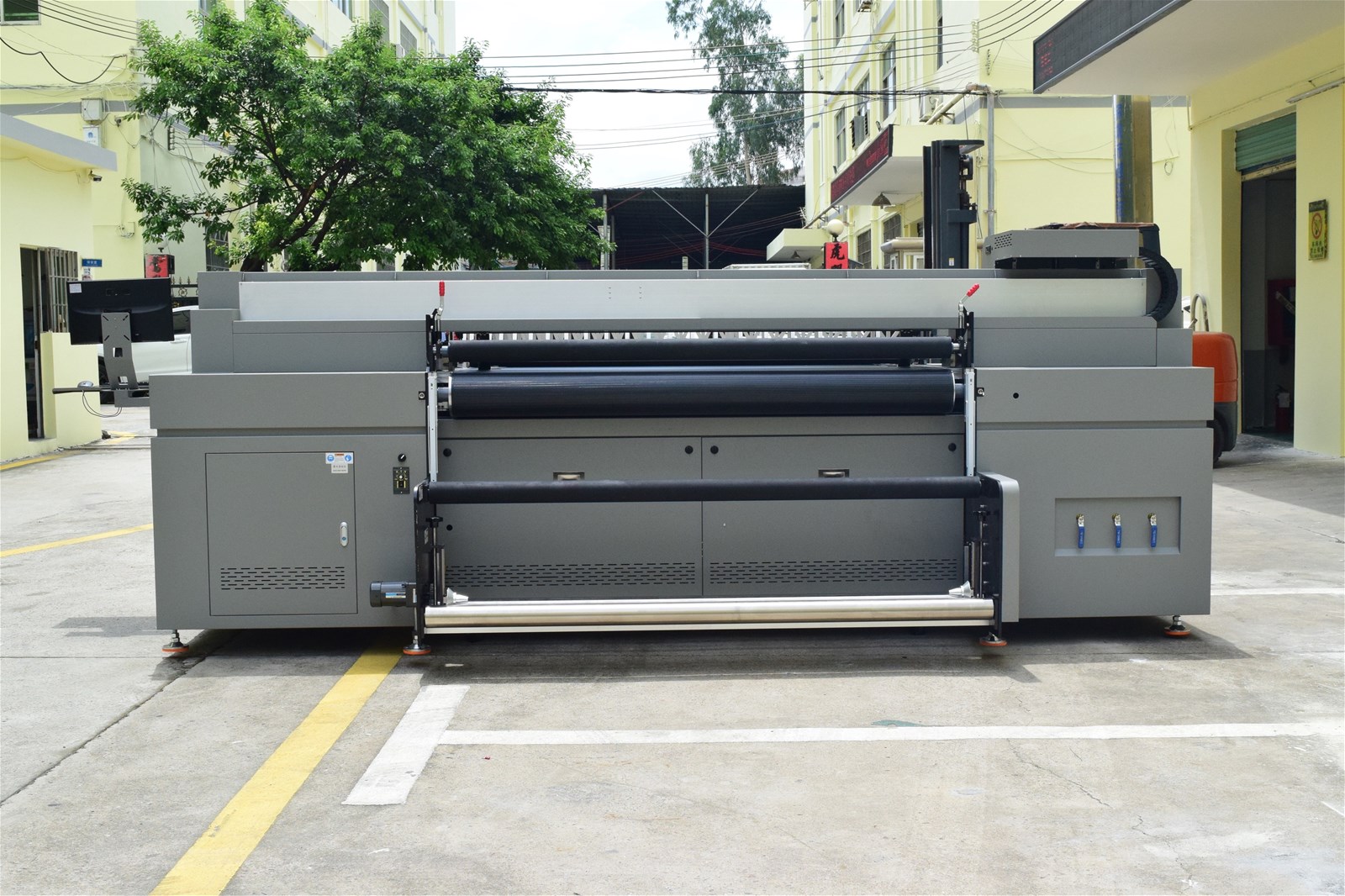

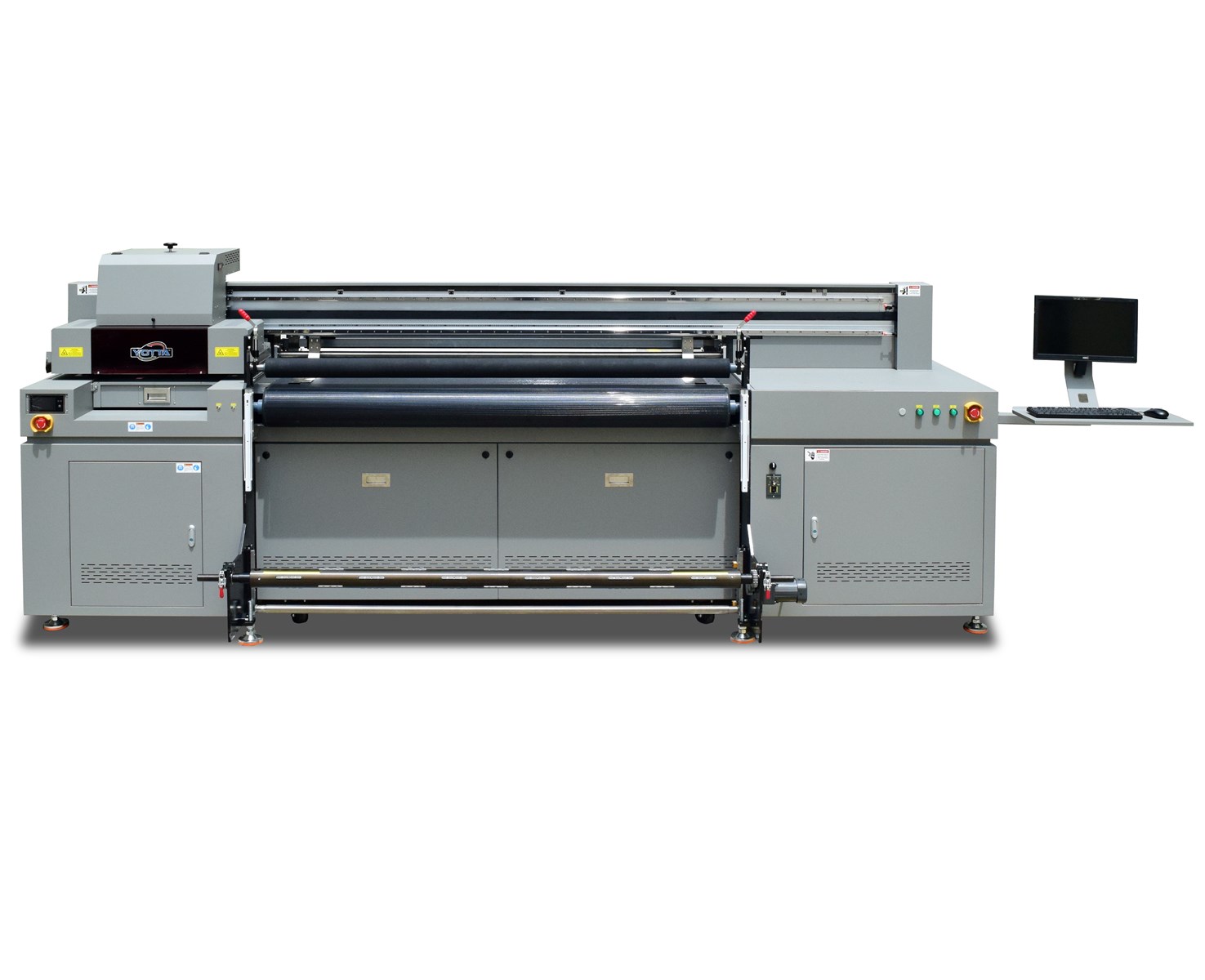

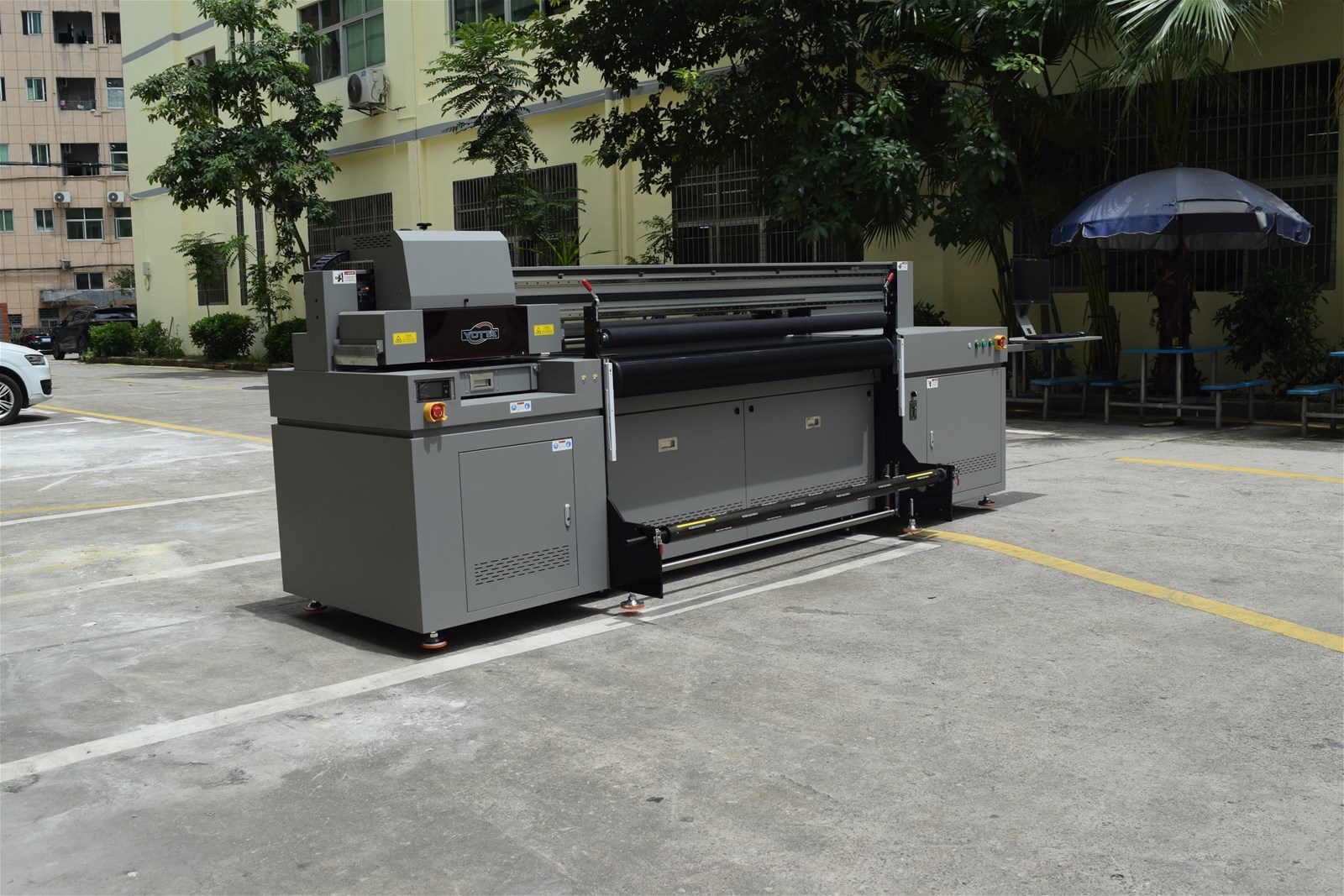

1.8m UV hybrid printer with White Varnish Colors GEN6 Heads

Description:

YOTTA's YD-H1800R6 small format UV hybrid printer adopts Ricoh Gen6 print head (Ricoh GEN5 and Kyocera KJ4A print head optional), fast speed and high resolution are its prominent advantages. It's able to increase print head according to customer requirement, which can enhance the performance of machine. Its highest configuration is 12 print heads that can achieve printing of CMYK,LcLm+W+V. What's more, it can print special effect of varnish. YOTTA's YD-H1800R6 small format UV hybrid printer is more suitable for personalized customization and mass production. Furthermore, it is easy to operate by computer, which is very efficient and stable.

Decoration: ceramic, ceiling, window, door
Advertisement: billboard, bulletin board, photo
Packaging: box, carton, some special appearance

Special features of YOTTA's YD-H1800R6

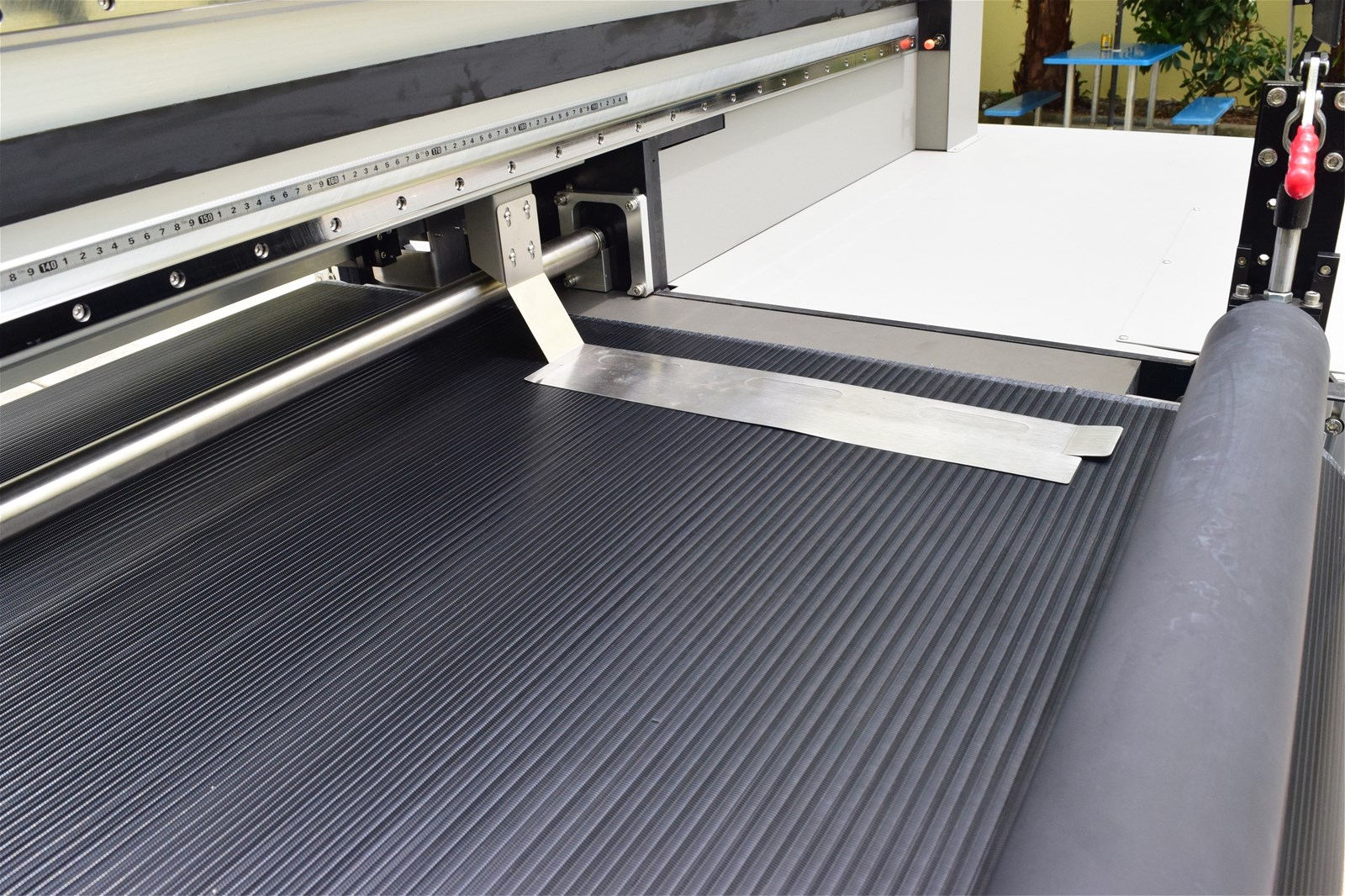

1. Seamless Wire mesh belt

Polyester made belt, it can make a trace less printing effect when printing thin material like PVC film.

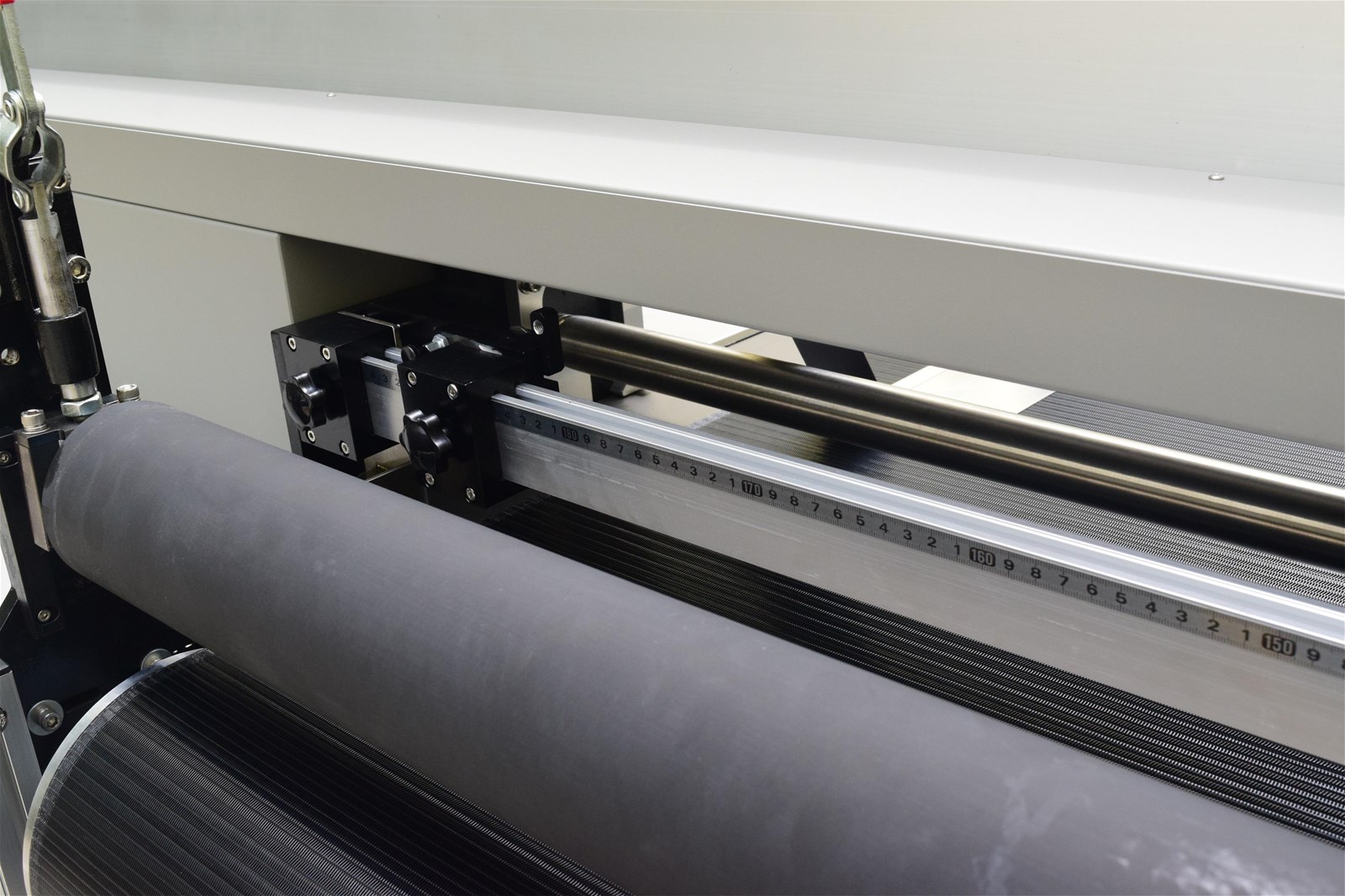

2. Lead rail

Lead rail, which is HIWIN from Taiwam, can make machine running stable and reduce noise during the running process. What is more. It is easy to maintain and its lifetime can keep ten years under normal working environment.

3. Germany IGUS towline

YD-H1800R6 small format UV hybrid printer is suitable to high speed, which can protect wires from abrasion and can prolong service life.Besides, It can work stably in a long time.

4. White Ink Circle and stir

White Ink is special and will subside so that it will affect printing color or will be easy to block print head. after installing this, white Ink can circle automatically. If there is sediment at ink box, stir can work auto to prevent ink sediment.

5. Automatic measurement system

this function can measure the distance between print head and materials that will reach the best printing effect. It is precision and also can save time that we measure materials thickness by ourselves. Besides, that can avoid damage caused by human mistakes.

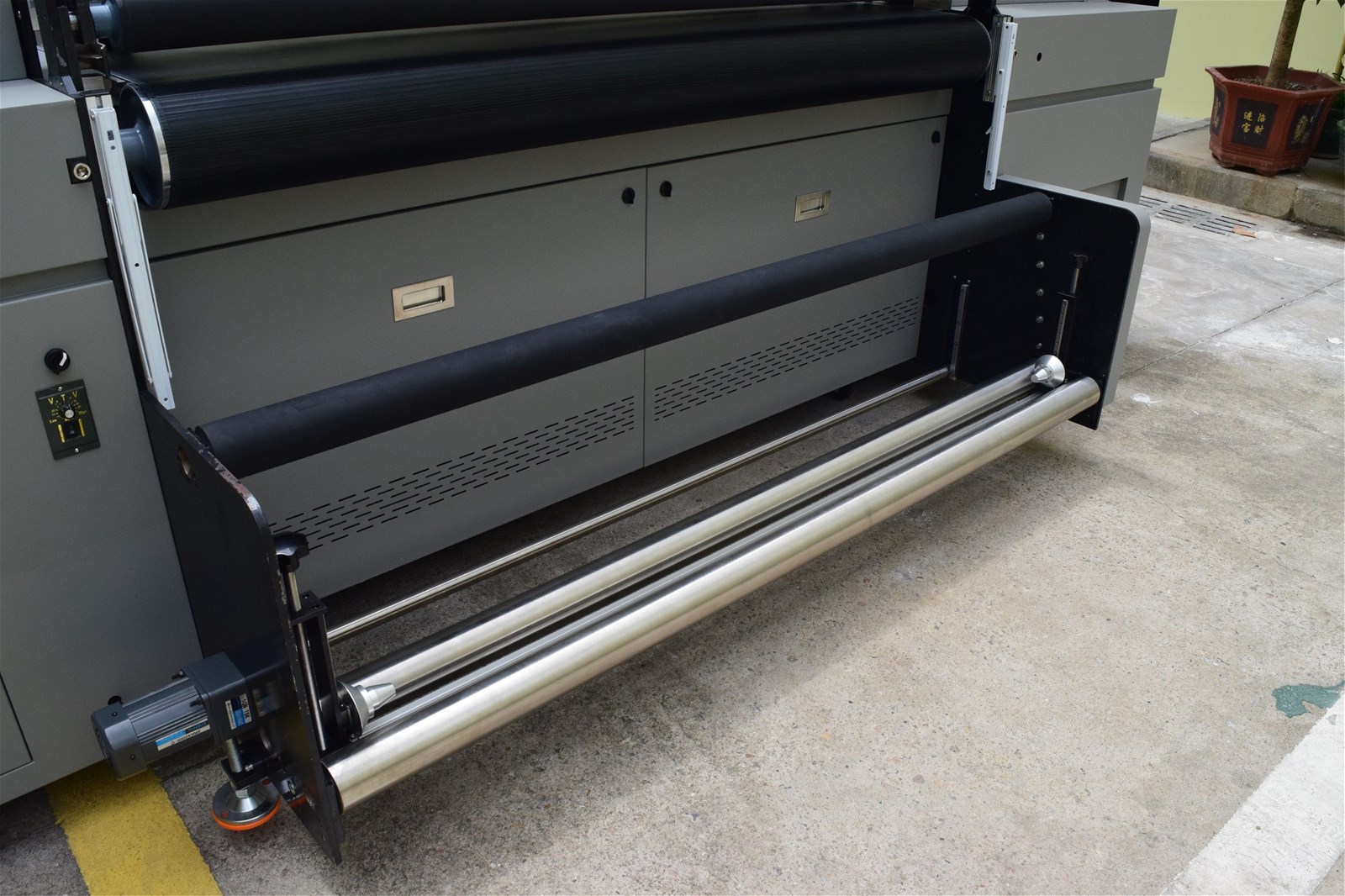

6. Feeding and taking up system

Feeding and taking up systems all adopt torque motor, it can adjust the tension strength while printing depends on the material thickness, while printing different materials all has a reasonable torque value to ensure the printing quality.

7. Secondary ink cartridge thermostat

the printing temperature of print head is normally at 45-50C. In winter or some cold places, the print head temperature gradually rises after machine is started, and finally reaches 45C, which will takes time to preheat. with the device, it can be kept at around 45C, and it can work normally after machine is started. and there is a temperature display to know the temperature of the current secondary ink cartridge.

8. Anti-static function

When printing material with static, ink will spray over and the printing effect won't be good enough. with anti-static bar, it can remove the static from material for best printing effect.

9. Double negative pressure

Independent negative pressure system for White and color, making suitable individual viscosity and gravity for both of them, finally gets best printing result.

Applications:

18m UV hybrid printer with White Varnish Colors GEN6 Heads

Specification: :

Specifications

Model	YD-H1800R6
Print width	1800mm
Print head	GEN6 grey level piezo print head
Print resolution	600*2400 DPI
Print speed	4Pass,34M2/h 6Pass,23M2/h 8Pass,18M2/h
Ink color	CMYK, Lm, Lc, W, V(Optional)
Ink type	UV ink (Eco-Friendly)
Number of heads	2-8 pcs
Material thickness	0-50MM
Material type	Rigid and flexible materials
