YGC-GHFS Photosynthetically Active Radiometer Sensor
| FOB Price: | 100.00 - 200.00 USD/Bag |
|---|
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Output: Analog Sensor
- Theory: Ultrasonic Sensor
- Usage: Temperature Sensor
- Brand Name: YIGU
- material: IP65
- Model Number: YGC-GHFS
Specifications

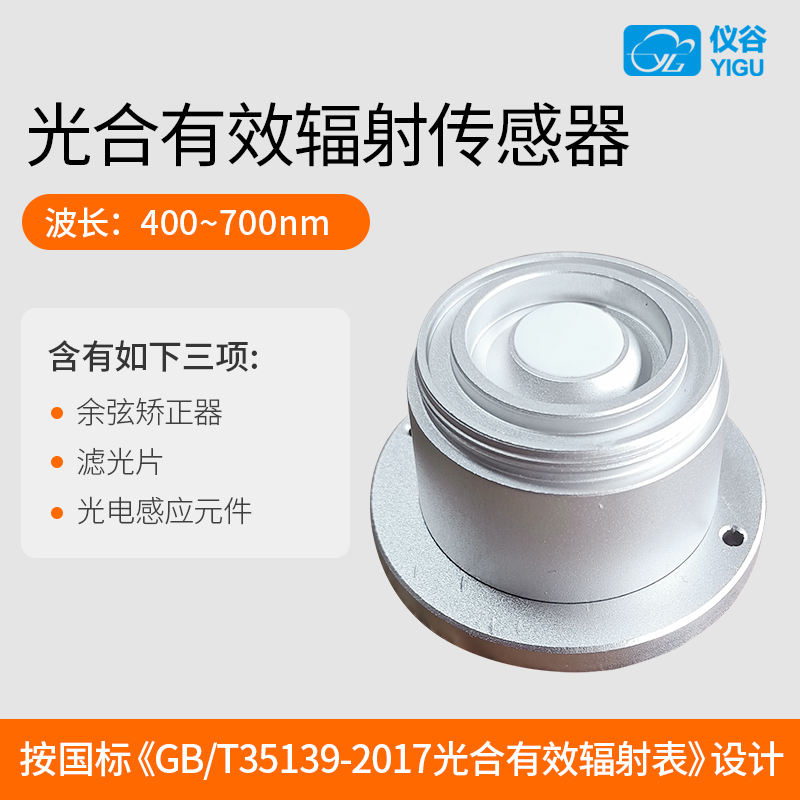

YGC-GHFS photosynthetically active radiometer sensor
Brand: Yigu
Product name: Photosynthetically active radiometer/sensor
Model: YGC-GHFS
Power supply: DC5V/DC9-30V
Measuring range (energy type): 0-1500W/m2
Spectrum range: 400~700nm
Resolution 1W/m2
Protection grade: IP67
Scope of application: It can be widely used in environment, agriculture, aquaculture, greenhouse, laboratory and other occasions requiring photosynthetic effective radiation measurement.
Technical parameter
-Photosynthetically active radiation sensor-
Measuring range (energy type) 0-1500W/m2
Power supply mode: DC 5V DC 9-30V
Output signal current 4 20mA
Voltage 0~5V
Serial port RS485 (Modbus) RS485 (Ascii)
RS232(Modbus)RS232(Ascii)
Standard line length: 2m Others:
Spectral range 400~700nm
Range 0-1500W/m2
Resolution 1W/m2
Response time ≤ 5 ms (95%)
Non linear ± 4%
Directional response (corrected to within 80 ° of zenith angle) ± 10%
Temperature response (- 20 ℃ 60 ℃) ± 5%
Annual stability ± 3%
Spectral response bandwidth (400 ± 10) nm (700 ± 10) nm
Spectral selectivity error ± 5%
External response of specified bandwidth ≤ 10%
Protection grade IP67
Working environment Working temperature: - 40~80 ℃; Relative humidity: 0~100% RH
Power consumption ≤ 100mW@5V
