>Products Catalog > Tasso PT960 2*12 Inch 3-Way Line Array Speaker, the High-Quality Audio System Professional Speaker

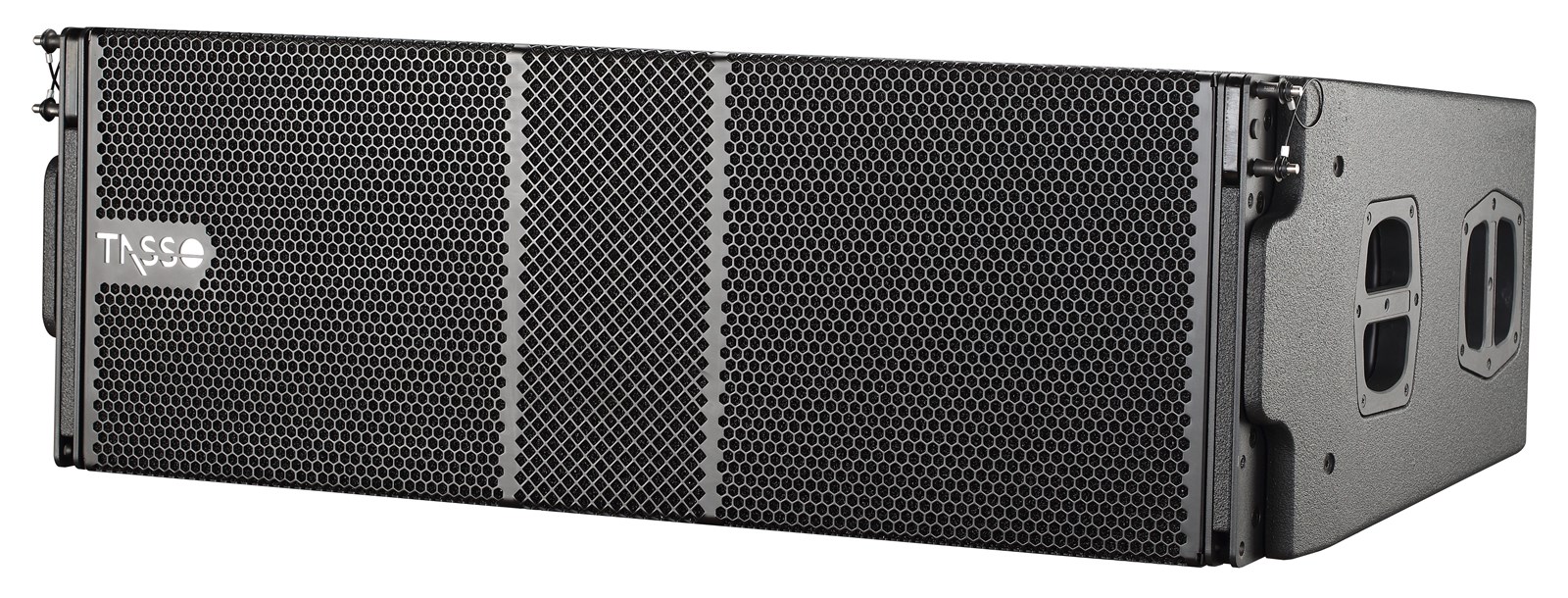

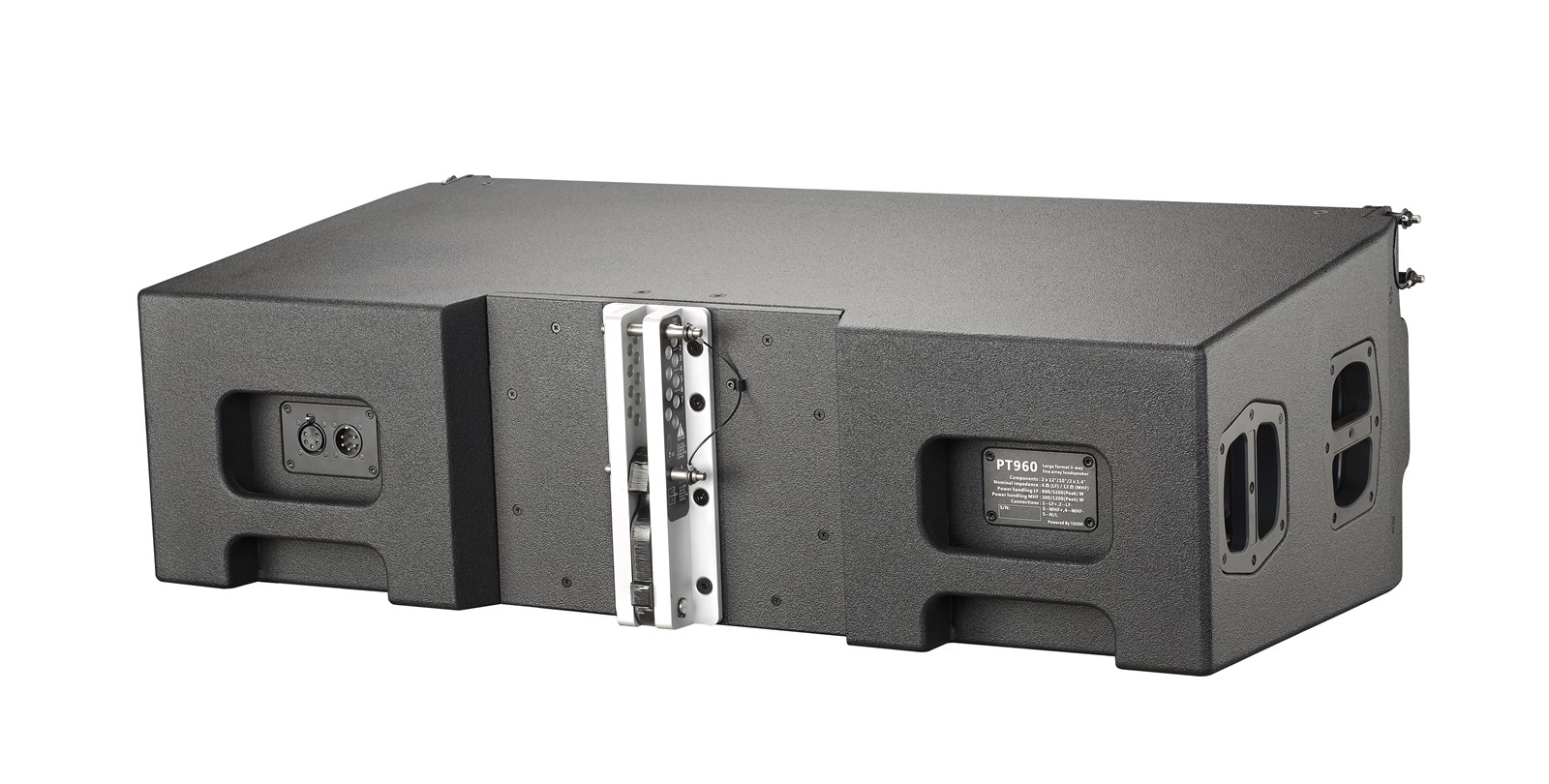

Tasso PT960 2*12 Inch 3-Way Line Array Speaker, the High-Quality Audio System Professional Speaker
| Shipping: | Carton Box & Flight Case |
|---|---|
| Payment Terms: | T/T, Western Union, Other, CASH |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Brand Name: Tasso
- Frequency Response: 48Hz-17KHz
- Name: PT960
- Certification: Y
- Channel: NA
Specifications
PT960 Architectural specifications
the loudspeaker system shall be 3-way actively driven between the low frequency and the MID/high sections. A passive crossover shall be used between the MID/high frequency sections. the loudspeaker shallowly be operated by a dedicated, compatible controller amplifier.

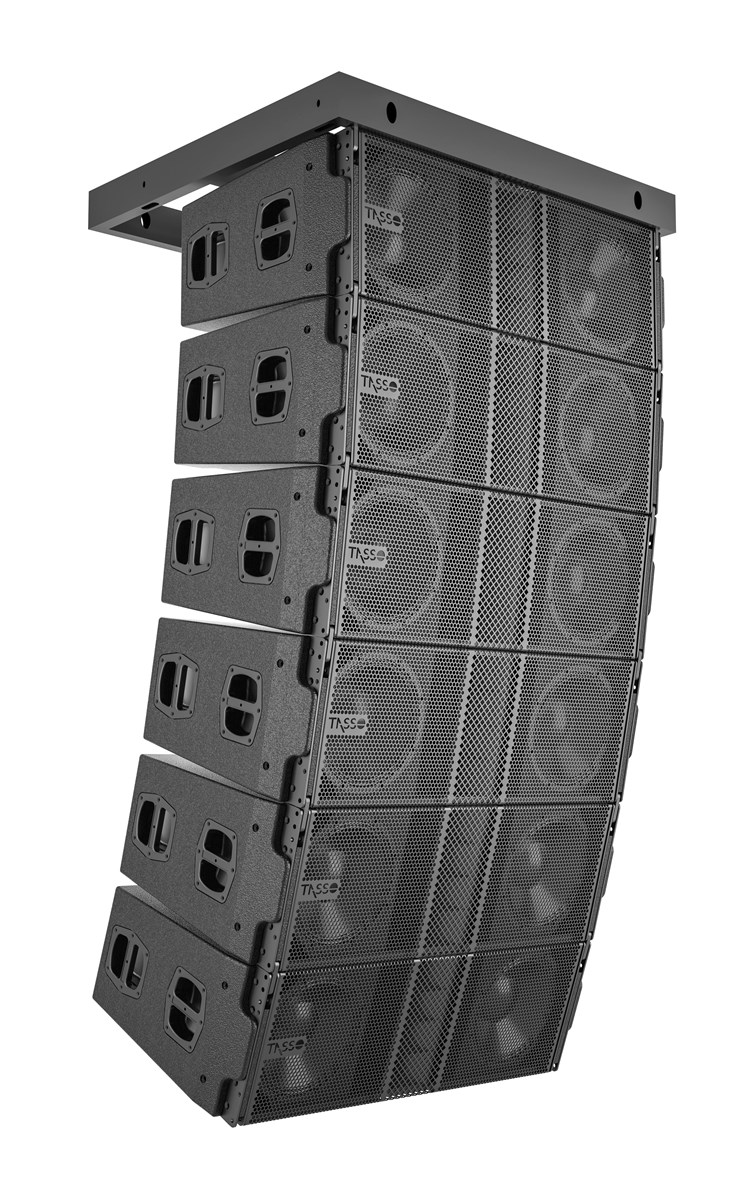

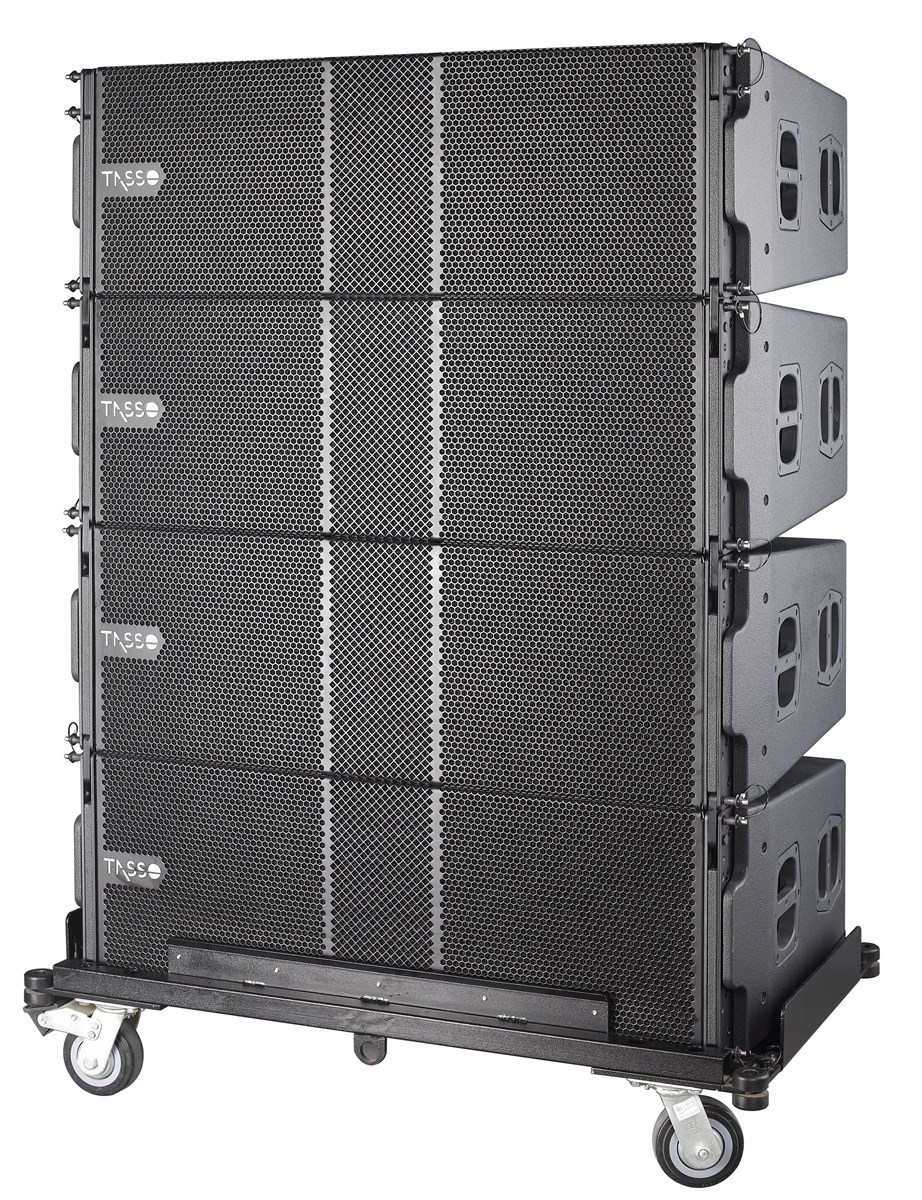

the loudspeaker shall produce a cylindrical wave segment suitable for use as an element in a line array and maintain an extremely accurate horizontal dispersion pattern down to very low frequencies (80°>250Hz). the loud speaker shall have a design that exhibits extremely low power compression and for this reason shall utilize the rear rigging elements as a heat sink for the midrange driver. the loudspeakers hall consist of two 12" LF neodymium drivers in a vented enclosure, one hornloaded 10" midrange driver and two coaxially mounted 1.4" exit compression drivers with 3" voice coils coupled to a waveshaping device. the enclosure shall be constructed from marine plywood with an impact resistant and weather protecting PCP (Polyurea Cabinet Protection) finish. The cabinet front shall be protected by a perforated steel grill backed with acoustic foam. The cabinet shall incorporate a three point rigging system for the assembly of vertical line source arrays of up to 24 cabinets in conjunction with a dedicated flying frame.
Type |
PT960 3-way line array |
Component |
12"2+10"+2x1.4" |
Nominal Impedance |
LF:8Ω; MHF:12Ω |
RMS Power Handling |
LF:1000W; MHF:350W |
Peak Power Handling |
LF:4000W; MHF:1400W |
Frequency Response |
48Hz-17KHz |
Max. SPL |
145dB |
Dispersions |
80° |
NW/GW(Kg) |
60/63 |
