Ponovo PW636i Protection Relay Test System for Different Types of Protection Relays
| FOB Price: | 1.00 - 30000.00 USD/Set |
|---|---|
| Shipping: | By air |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Packaging Details: | Carton |
Quick Details
- Usage: Auto Testing Machine
- Power: Electronic
- Brand Name: Ponovo
- Warranty: 12month
- weight: 20kg
- Model Number: PW636i
- Color: gray-white
- output: 6*32A, 4*300V
- Power supply: 110~240Vac, 50/60Hz
Specifications

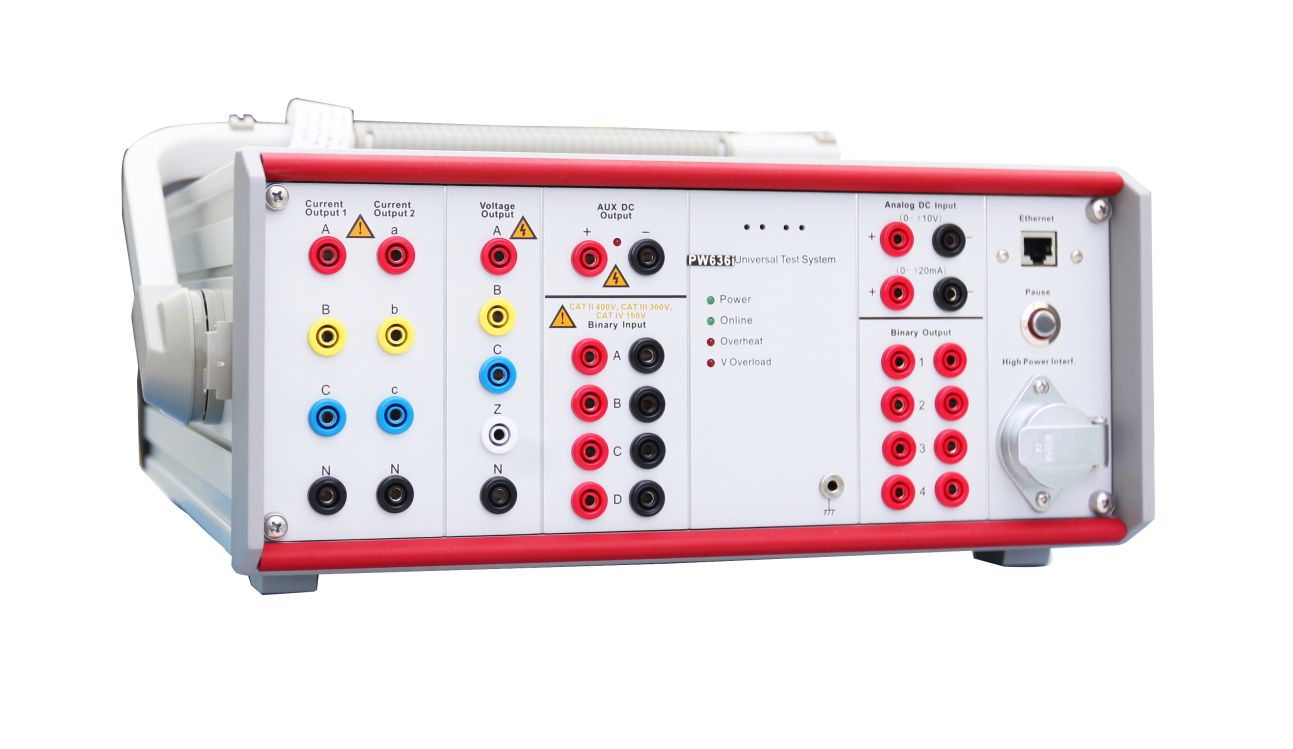

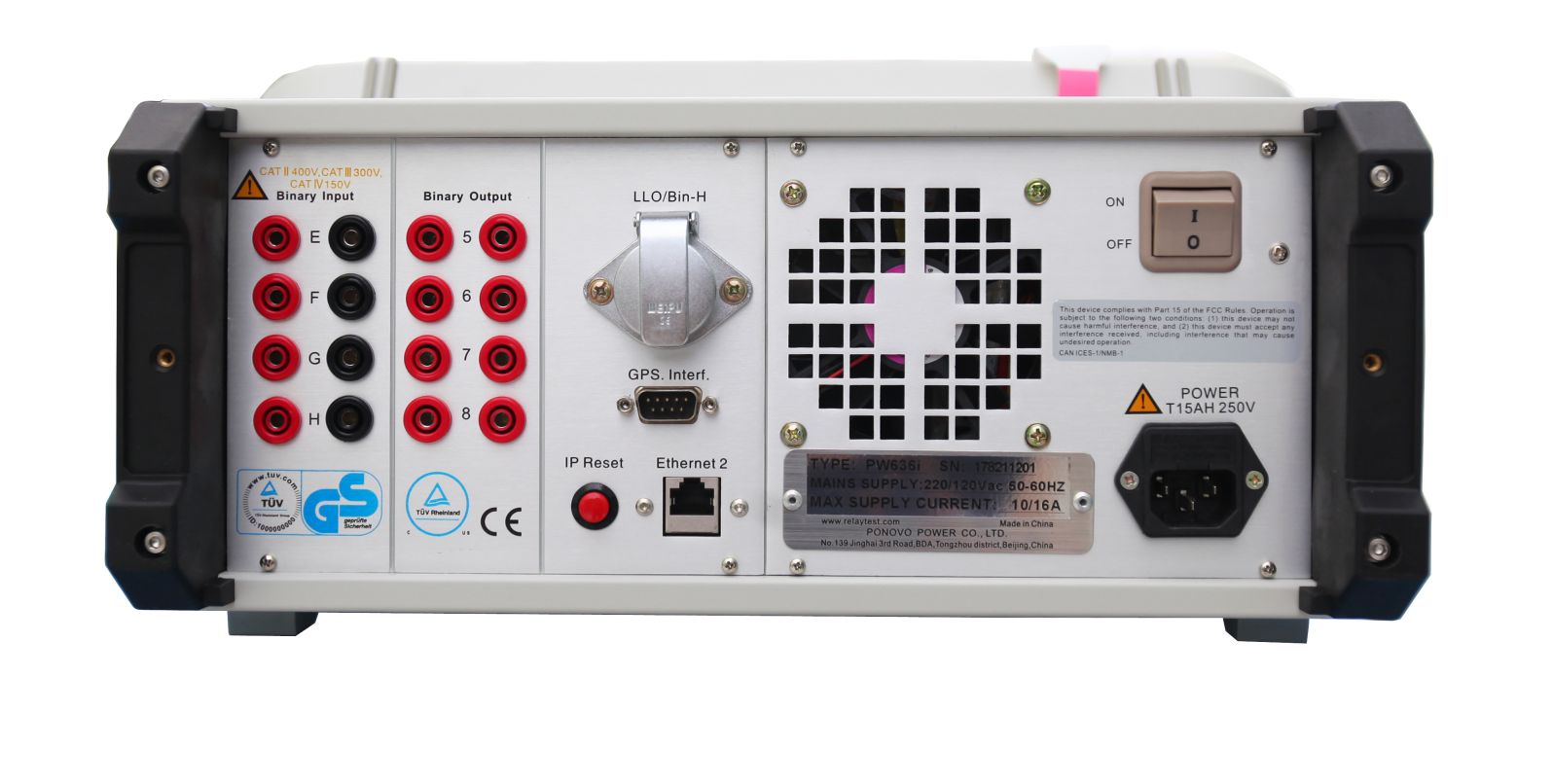

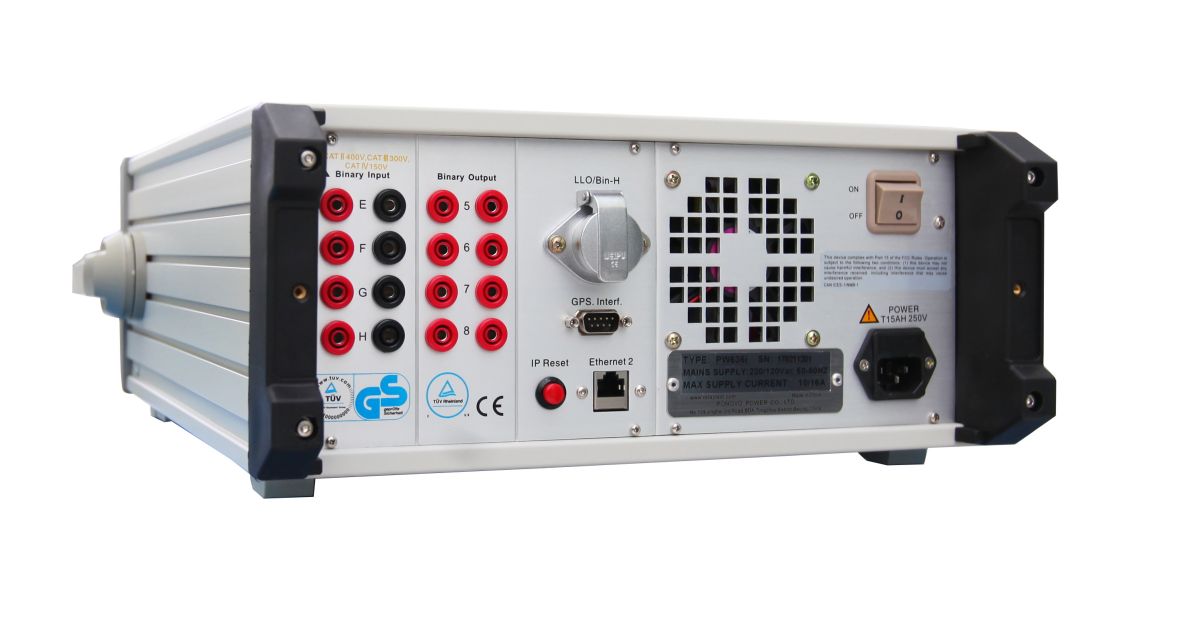

Ponovo PW636i Protection Relay Test System
Universal testing system PW636i (6x32A, 4x300V) can test all types of protective
Relays, including modern IEC61850 based relays. Other test works, such as
Transducer, energy meter, indication meter, etc., can also be done easily. It's the
Ideal test device for all power utilities, power plants, relay manufactures, panel
Manufactures, research institutes, universalities, testing companies, etc.
Features
*632A, 4300V
*8 binary inputs and 8 binary outputs,
*4 counter inputs, 12 low level outputs
*Adjustable threshold for binary inputs
*Auxiliary DC (0-300V)
*DC measuring inputs
*in-built output monitoring and recording function
*Large output power
*High accuracy
*Support IEC61850 based test
*Current booster interface for testing high burden relay
*Support importing setting value of relays via XRIO/RIO/PONOVO's Powertest default set files automatically
InBuilt Analog Monitoring & Recording Unit
this inbuilt analog monitoring and recording unit
Samples the actual current/voltage outputs and real
Time output waveform can be displayed in the software.
this makes it easy to check the correctness of wiring
Before the test and observe the output during the test
Process.

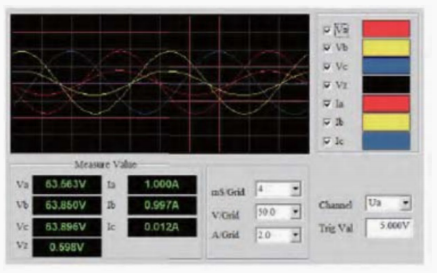

RealTime Outputs Display
Realtime output waveform display helps the fast
Troubleshooting of wiring and test circuitry before test
Actual started.
User can also use this provision to analyze the external
Signals, such as phase angle, power, harmonic, etc.
IEC 61850 Function
PW460 provides analog voltage/current
Signal to relay and the GOOSE message from
Relay is received and analyzed by relay test Equipment.
Application
*Relay test
Distance protection
Differential protection
Directional relay
Timeinversed current relay
Autoreclosing, etc.
*Measuring and control device
Synchronizer
Transducer
Energy meter
Df/dt, etc.
*System simulation
Transient, steadystate fault simulation
Playback of COMTRADE format file
*Calibration
0.5 Class energy meter
Disturbance recorder
Indicating meters, etc.
Main Specifications
| Current | |
| Range | 6 x 0~32A |
| Power(typical) | 6x 450VA at 32A 3 x 800VA at 64A |
| Accuracy (typical) | <0.05% rd+0.02% rg. at 0~32A |
| Voltage | |
| Range | 4 x 0~300V |
| Power(typical) | 4x 75VA at 300V 3 x 100VA at 300V |
| Accuracy (typical) | <0.03% rd+0.01% rg. at 0~300V |
| Frequency | |
| Sine signal | 1 1000Hz |
| Transient signal | DC 10.0kHz |
| Accuracy | 0.3ppm |
| Phase angle | |
| Range | -360°~+360 |
| Accuracy (typical) | 0.05 |
| Auxiliary DC supply | 0~300V |
| Power | 88W at 110V, 176W at 220V, 90W at 300V |
| Binary input | |
| Number | 8 |
| Type | 0-400Vdc threshold or potential free |
| Counter input | |
| Number | 4 |
| Sample rate | 25kHz |
| Binary output | |
| Number | 4 |
| Type | Relay |
| Number | 4 |
| Type | Semiconductor |
| Low level output | |
| Number | 12 |
| Accuracy (typical) | 0.025% |
| DC measurement | |
| Voltage measuring | 0±10V |
| Current measuring | 0...±20mA |
| IEC61850 GOOSE | Optional |
| Dimension | 360*157*367mm |
| Weight | 20kg |
