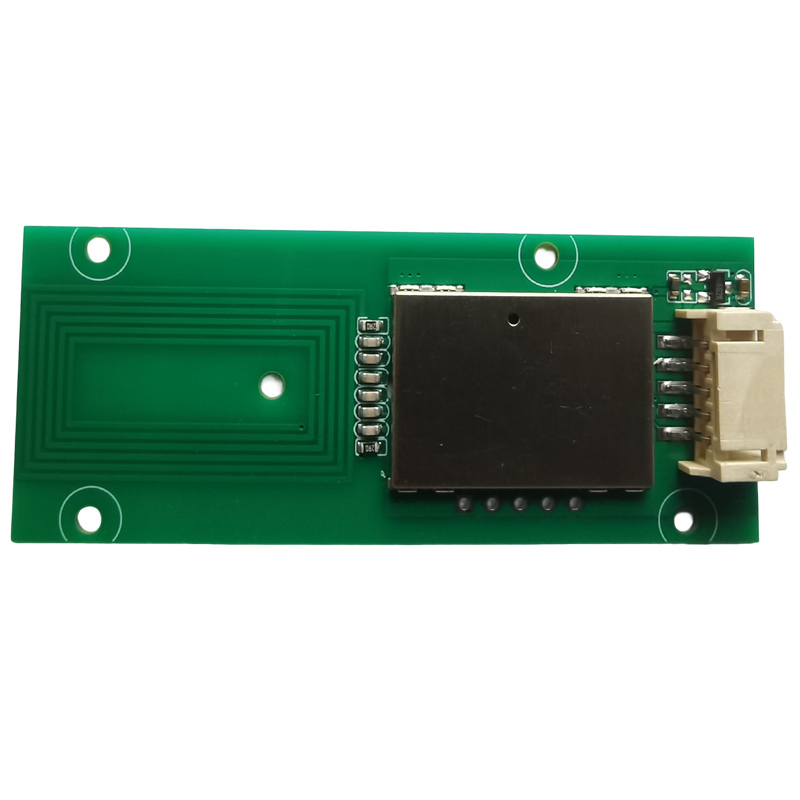

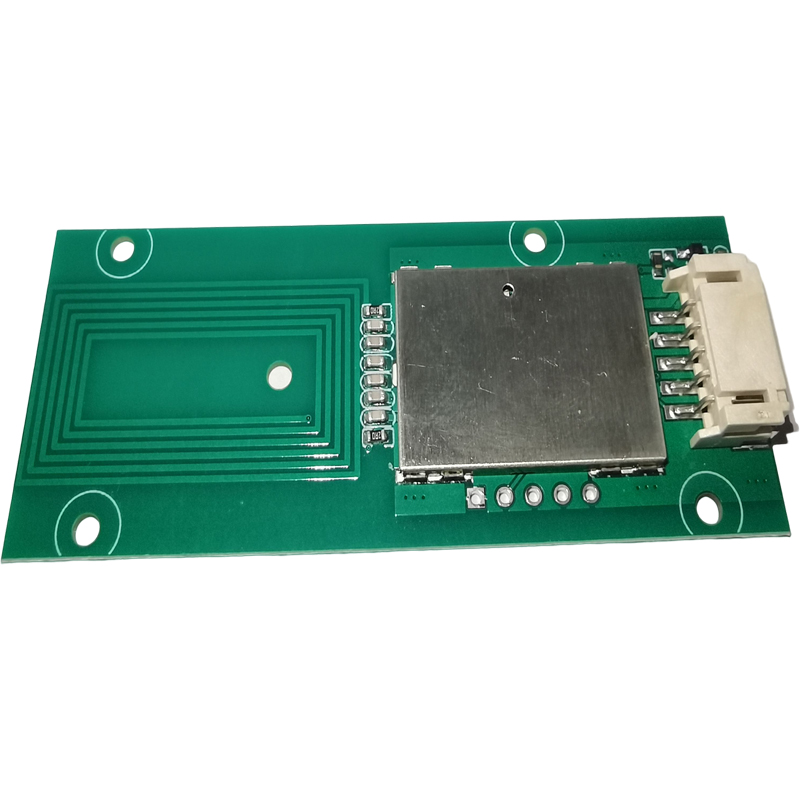

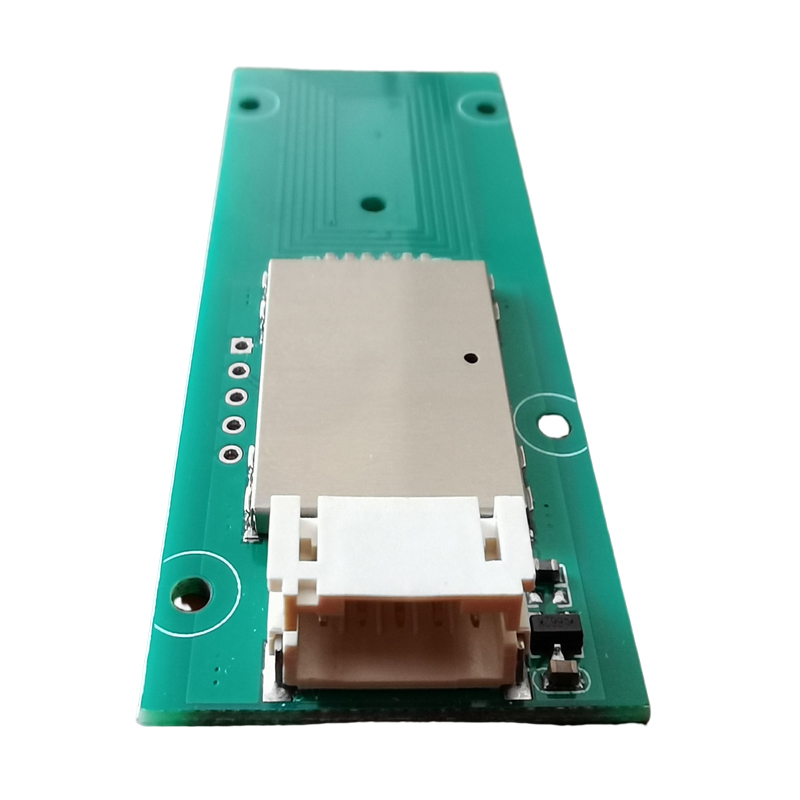

RFID Card Reader Software for Windows 10 with High-Frequency Multi-Protocol Read & Write Module.

Supply Ability:	50,000 Piece(s) per Month
Payment Terms:	T/T, Western Union

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Quick Details

Brand Name: Omnigift
Card type: Mifare S50/S70,UltraLight,Mifare Pro,Mifare PLUS,Mifare Desfire
Communication: card read
Dimension: 68*27*6.5mm
Frequency: 13.56mhz
Model Number: OM-HM216
Standard: ISO14443A/B,ISO15693
Supporting card: Mifare S50/S70,UltraLight,Mifare Pro,Mifare PLUS,Mifare Desfire,ISO1444A CPU card,ISO14443B CPU card,ISO15693 card
Baud Rate: 9600~115200
Interface: USB
Power supply: 5V
Card Reading Distance: 0~8cm(depending on label size )
Current: 100mA
Antenna: Built in

Specifications

Features:

2. Transmission Speed up to 848kbit/s

3. Support android system development

4. Adopt ARM core CPU

5. Small size, easy to insert

6. Support 14443A/B+15693

7. Single-sided Components, half-hole patch package

Application:

1. Tablet PC

2. Lift Control

3. POS Terminal

4. Parking System

5. Access Control

6. Handheld Terminal

7. Attendance Application

8. Recreational Machine

9. Barrier Gate/rapid-open gate

Module NO.:

Module NO.	Interface
OM-HM216-H	USB-HIE
OM-HM216-T	TTL(5V)
OM-HM216V-T	TTL(3.3V)

Frequency	13.56MHz
Standard
Support cards	S50/S70,UltraLight,Mifare Pro,Mifare PLUS,Mifare Desfire,ISO1444A CPUcard,ISO14443B CPUcard,ISO15693card.
	115200
Interface	USB
Power Supply	5V
Reading Distance	(dEpending on Label size )
	100mA
Operating Temperature	-20℃~80℃
Antenna	Built in one
Dimension	276.5mm

rfid card reader software for windows 10 with highfrequency multiprotocol read and write module
