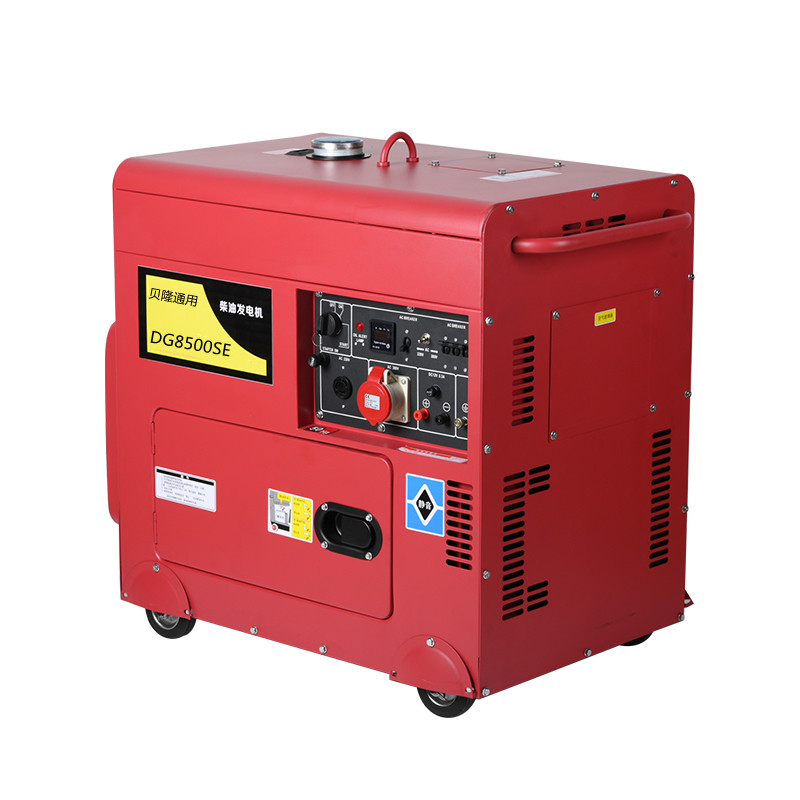

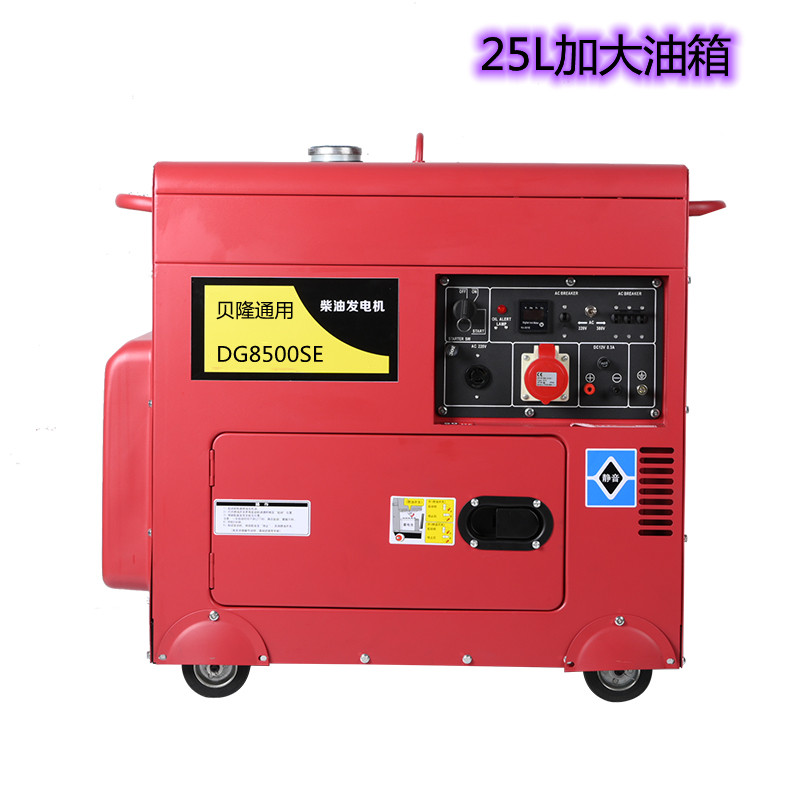

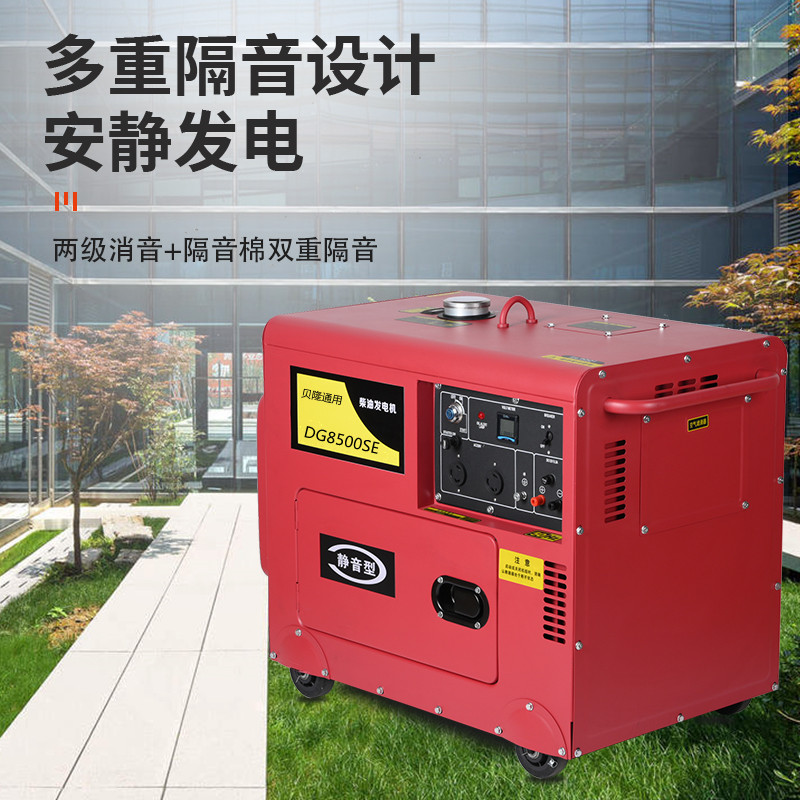

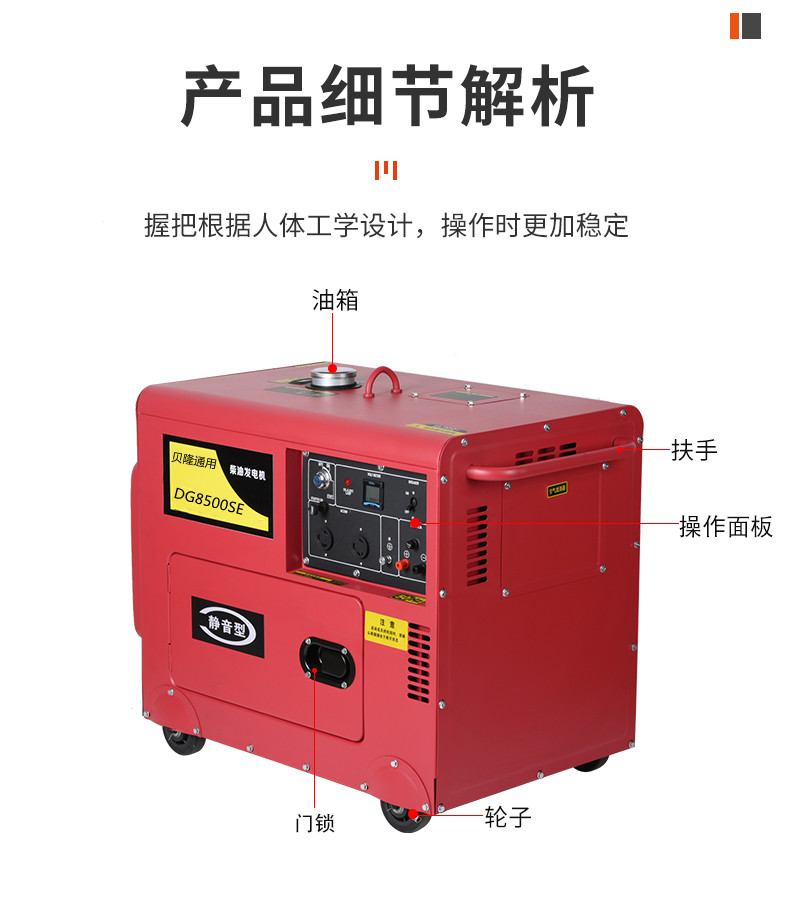

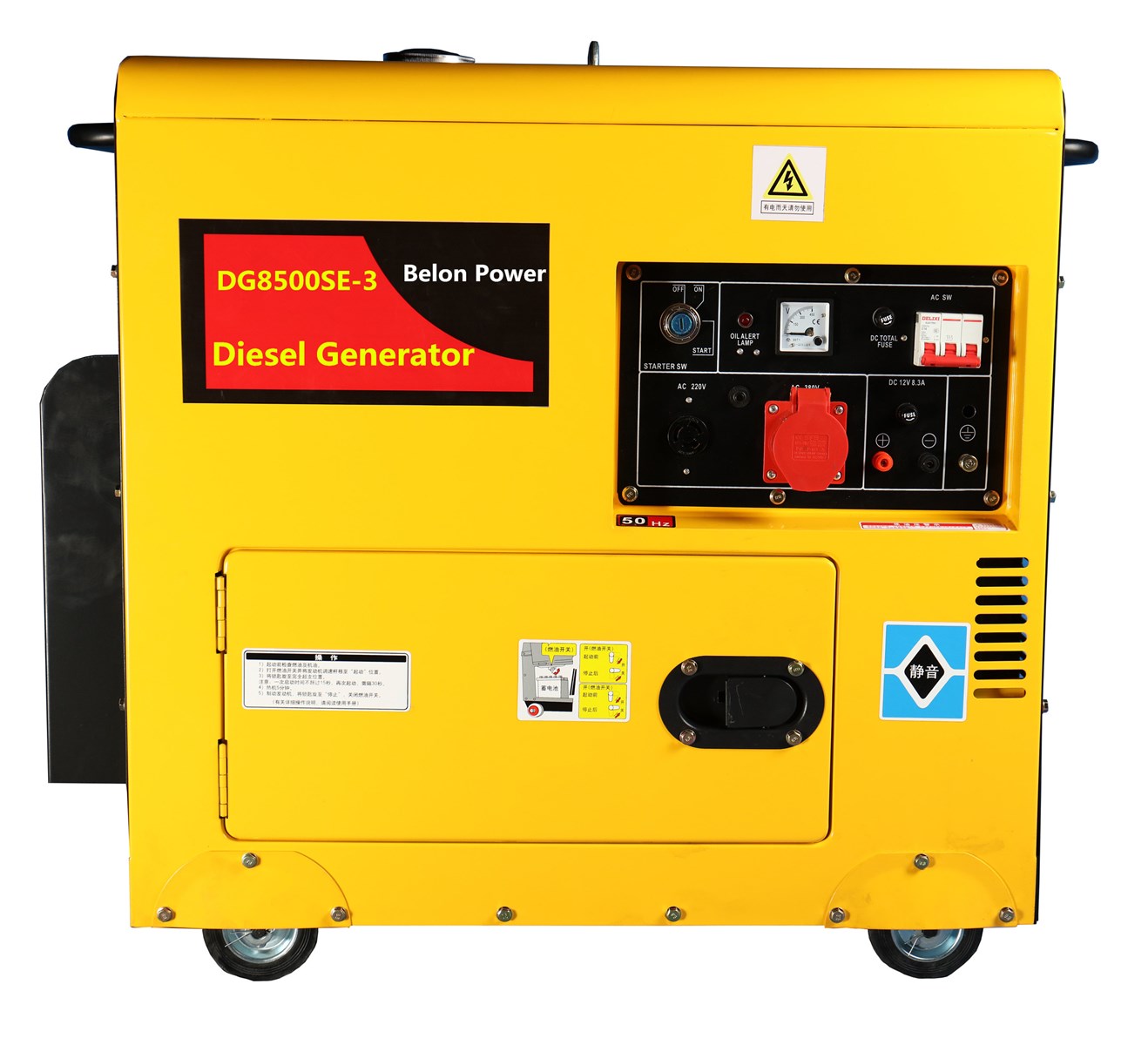

Belon Power 6kw Silent Diesel Generator 6kva Low Noise Diesel Generator 192F Diesel Engine 100% Copper Alternator
| FOB Price: | 678.00 - 688.00 USD/Unit |
|---|---|
| Supply Ability: | 6,000 Unit(s) per Month |
| Shipping: | By Sea |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | 1 unit/carton |
Quick Details
- Rated Power: 6kw
- Frequency: 50/60HZ
- Speed: 3000/3600RPM
- Output Type: single phase,three phase or dual power
- Brand Name: Belon Power
- Rated Current: 8.3A
- Rated Voltage: 220/380v
- Model Number: DG8500SE,DG8500SE-3,DG8500SED
Specifications
Belon Power 6kw silent diesel generator 6kva low noise diesel generator 192F diesel engine 100% copper alternator
| Model | DG8500SE | DG8500SE-3 | DG8500SE-3D |
| Frequency[Hz] | 50 60 | 50 60 | 50 60 |
| Voltageg[V] | 110/220.115/230.120/240 | 220/380.230/400.240/415 | 220.230.240.110/220.115/230.120/240.230/380.230/400.240/415 |
| Rated Power( KW) | 6 7 | 6 7 | Single phase5.0/Three phase 6 Single phase 5.5/Three phase7.0 |
| Max. Power(KW) | 6.5 7.5 | 6.5 7.5 | Single phase 5.5/Three phase 6.5 Single phase 6.0/Three phase 7.5 |
| Rated Output Current(A ) | 26 30 | 8.6 10 | Single phase22/Three phase8.6 Single phase 24/Three phasea 10 |
| DC Output | 12V 8.3A | 12V 8.3A | 12V 8.3A |
| Phase | Single phase | Three Phase | Single phase/Three phase |
| Excitation Method | Brush self-excitation | Brush self-excitation | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) | 1.0(0.8) | 1.0(0.8) |
| Insulation Class | F | F | F |
| Fuel Tank Capaciity[L] | 12.5 | 12.5 | 12.5 |
| Engine Model | 192FE | 192FE | 192FE |
| Start Method | Electric Start | Electric Start | Electric Start |
| Engine Type | Single cylinder,4-stroke,air-cooled, vertical | Single cylinder,4-stroke,air-cooled, vertical | Single cylinder,4-stroke,air-cooled, vertical |
| Bore*Strokke[mm] | 92 * 75 | 92 * 75 | 92 * 75 |
| Displacement | 0.499 | 0.499 | 0.499 |
| Compression Ratio | 19.5: 1 | 19.5: 1 | 19.5: 1 |
| Speed[rpm] | 3000 3600 | 3000 3600 | 3000 3600 |
| Power [Kw] | 7.5 8.2 | 7.5 8.2 | 7.5 8.2 |
| Oil Capacity[L] | 1.65 | 1.65 | 1.65 |
| Fuel Consumption[g/kwh] | ≤280 ≤290 | ≤280 ≤290 | ≤280 ≤290 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) Uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) | SAE10W30 (CD grade or above) Uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) | SAE10W30 (CD grade or above) Uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS | ATS | ATS |
| Remote Control | Remote Control | Remote Control | |
| Intelligent digital display panel | Intelligent digital display panel | Intelligent digital display panel | |
| Size [mm] (L*W*H) | 910*525*780 | 910*525*780 | 910*525*780 |
| Packing Size [mm] (L*W*H) | 940*540*900 | 940*540*900 | 940*540*900 |
| Net Weight/Gross Weight[Kg] | 160/167 | 160/167 | 160/167 |
