>Products Catalog > Small Diesel Generator > 9KW Silent Water-Cooled Diesel Generator EV80 Diesel Engine 10kva Water-Cooled Soundproof Diesel Generator

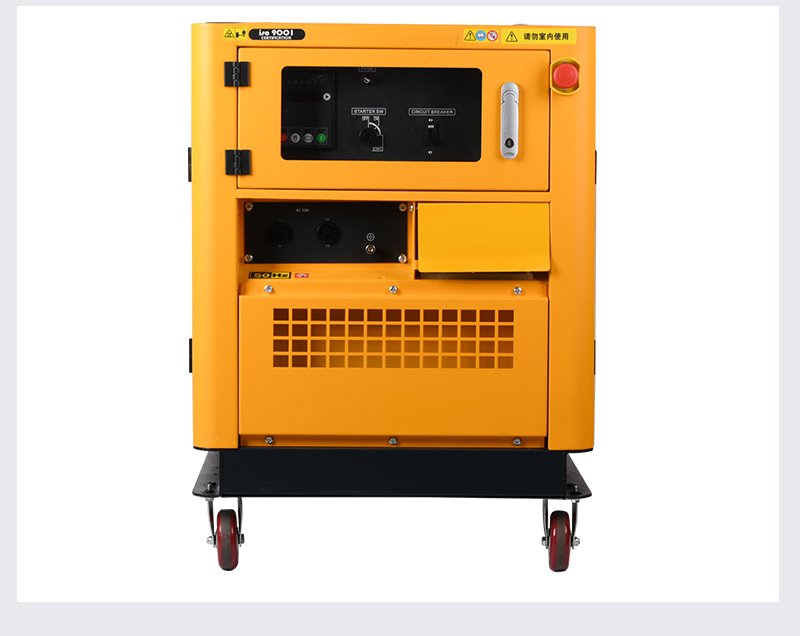

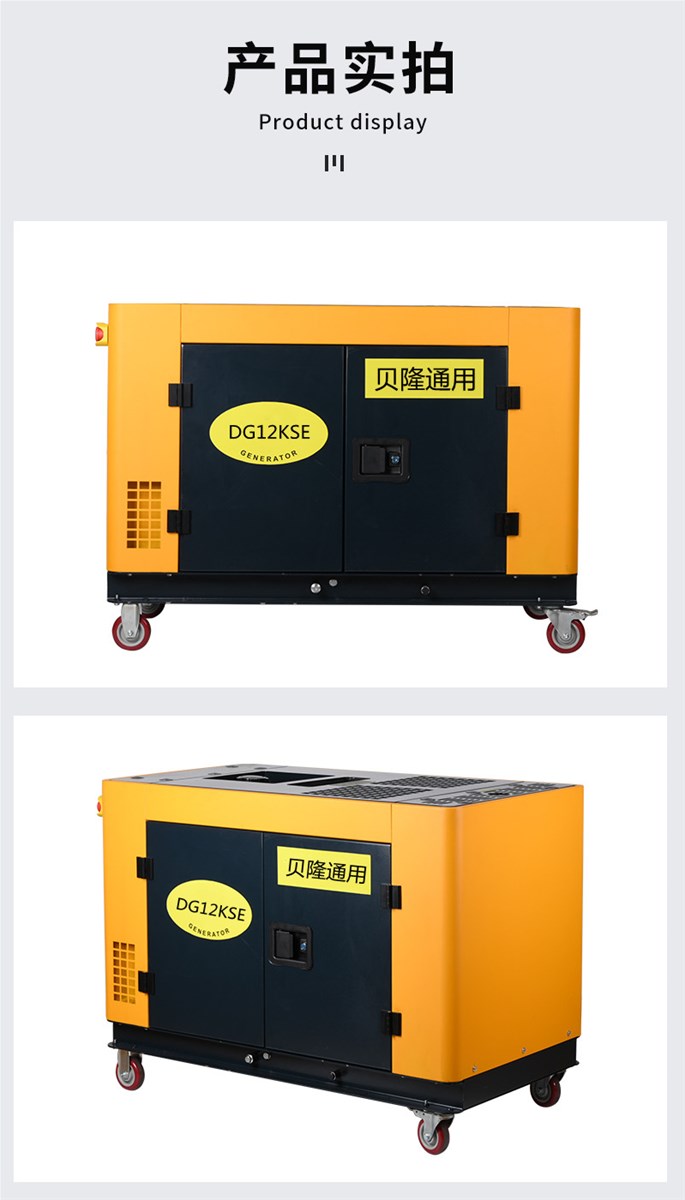

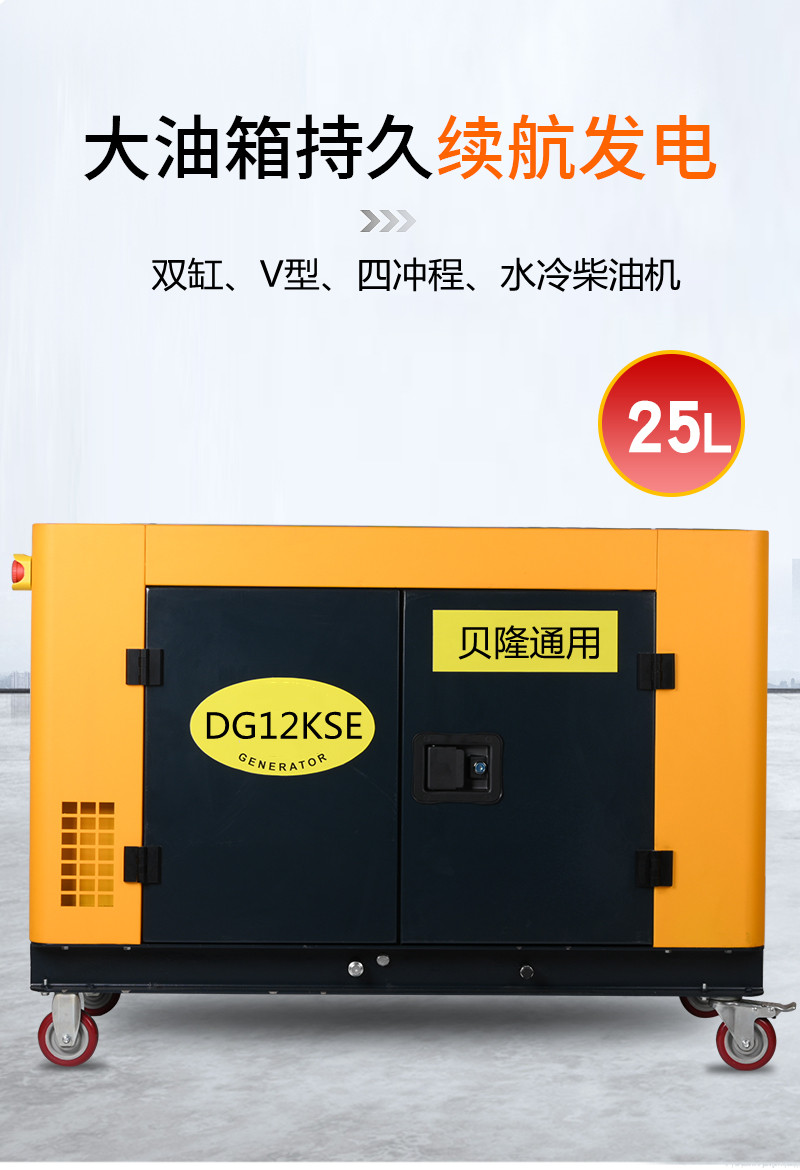

9KW Silent Water-Cooled Diesel Generator EV80 Diesel Engine 10kva Water-Cooled Soundproof Diesel Generator
| FOB Price: | 2200.00 - 2250.00 USD/Unit |
|---|---|
| Supply Ability: | 6,000 Unit(s) per Month |
| Shipping: | By Sea |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Chongqing in China |
| Packaging Details: | 1unit/carton |
Quick Details
- Rated Power: 9kw
- Frequency: 50/60HZ
- Speed: 3000/3600RPM
- Output Type: single phase,three phase or dual power
- Brand Name: Belon Power
- Rated Current: 8.3A
- Rated Voltage: 220/380v
- Model Number: DG12KSE
Specifications
9KW Silent Water-cooled diesel generator EV80 diesel engine 10kva water-cooled soundproof diesel generator
| Model | DG12KSE | DG12KSE-3 | DG12KSE-3D |
| Frequency[Hz] | 50 60 | 50 60 | 50 60 |
| Voltageg[V] | 110/220.115/230.120/240 | 220/380.230/400.240/415 | 220.230.240.110/220.115/230.120/240.230/380.230/400.240/415 |
| Rated Power( KW) | 9 9.5 | 9 9.5 | Single phase 8.0/Three phase 9.0 Single phase 8.5/Three phase 9.5 |
| Max. Power(KW) | 10 10.5 | 10 10.5 | Single phase 9.0/Three phase 10 Single phase 9.5/Three phase 10.5 |
| Rated Output Current(A ) | 39.1 41.3 | 13 13.7 | Single phase 34.7/Three phase 13 Single phase 37/Three phase 13.7 |
| DC Output | 12V 8.3A | 12V 8.3A | 12V 8.3A |
| Phase | Single phase | Three phase | Single phase/Three phase |
| Excitation Method | Brush self-excitation | Brush self-excitation | Brush self-excitation |
| Power FactorΦ | 1.0(0.8) | 1.0(0.8) | 1.0(0.8) |
| Insulation Class | F | F | F |
| Fuel Tank Capaciity[L] | 25 | 25 | 25 |
| Engine Model | 2V80 | 2V80 | 2V80 |
| Start Method | Electric Start | Electric Start | Electric Start |
| Engine Type | Two cylinders,V-type,water-cooled, vertical | Two cylinders,V-type,water-cooled, vertical | Two cylinders,V-type,water-cooled, vertical |
| Bore*Strokke[mm] | 2-80 * 79 | 2-80 * 79 | 2-80 * 79 |
| Displacement | 0.794 | 0.794 | 0.794 |
| Compression Ratio | 23; 1 | 23; 1 | 23; 1 |
| Speed[rpm] | 3000 3600 | 3000 3600 | 3000 3600 |
| Power [Kw] | 12 13 | 12 13 | 12 13 |
| Oil Capacity[L] | 2.2 | 2.2 | 2.2 |
| Fuel Consumption[g/kwh] | ≤290 ≤297 | ≤290 ≤297 | ≤290 ≤297 |
| Fuel No. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. | Diesel: 0#(Sumner), -10#(Winter) Use No. 0 diesel in summer, and use No. -10 or No. -20 diesel in winter. |
| Oil No. | SAE10W30 (CD grade or above) Uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) | SAE10W30 (CD grade or above) Uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) | SAE10W30 (CD grade or above) Uses CD or above grade 15W-40 oil (or SAE equivalent grade oil) |
| Optional | ATS | ATS | ATS |
| Remote Control | Remote Control | Remote Control | |
| Intelligent digital display panel | Intelligent digital display panel | Intelligent digital display panel | |
| Size [mm] (L*W*H) | 1400*650*820 | 1400*650*820 | 1400*650*820 |
| Packing Size [mm] (L*W*H) | 1500*750*920 | 1500*750*920 | 1500*750*920 |
| Net Weight/Gross Weight[Kg] | 310/330 | 310/330 | 310/330 |
