Good Quality Reliable Sinker EDM Machines

FOB Price:	1000.00 - 100000.00 USD/Set
Supply Ability:	20 Set(s) per Month
Shipping:	Shanghai
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Mid East, Eastern Asia
Place of Origin:	Jiangsu in China
Packaging Details:	Exported Wooden Cases

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: ISO9001
Weight: 1600kg
Brand Name: worthycnc
Condition: New
Warranty: 1 year
Voltage: customised
Model Number: EDM350
CNC or Not: CNC

Specifications

Detailed description

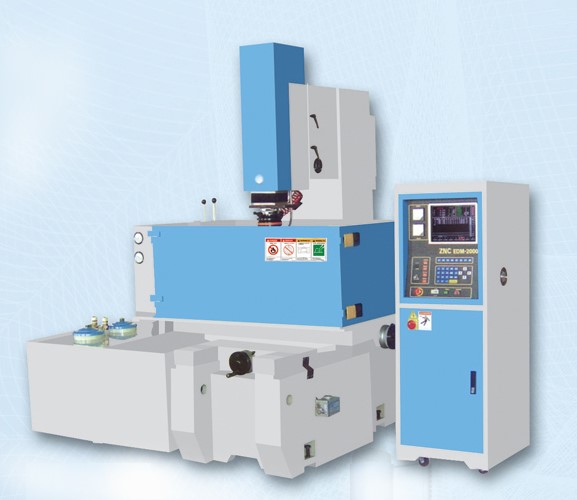

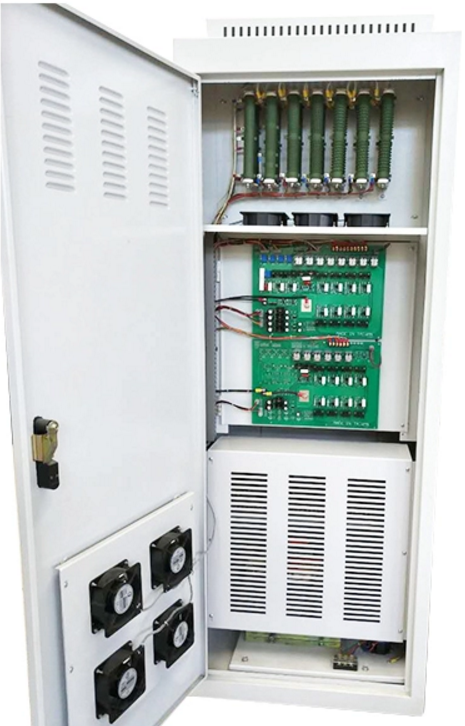

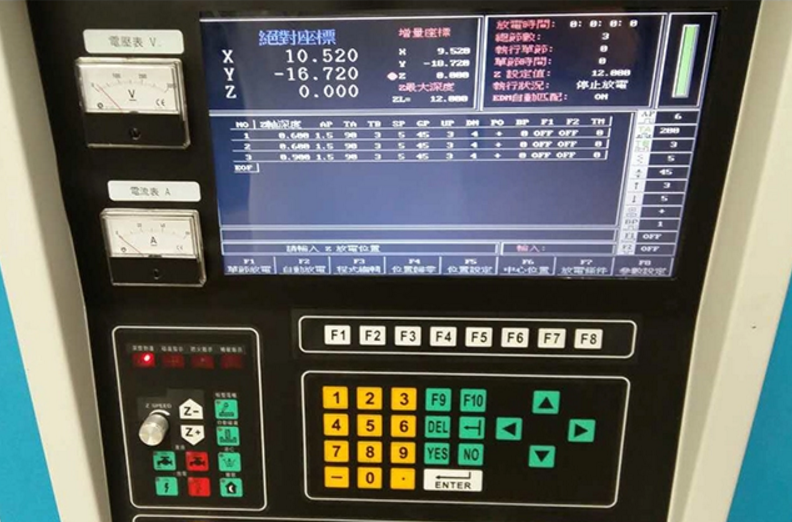

Sinker EDM machines
Parameters / Model No.	EDM350	EDM450	EDM540	EDM650
Working table travel X*Y (mm)	350*250	450*350	500*400	650*550
Working table size L*W (mm)	600*350	700*420	800*480	1000*600
Principal axis travel (mm)	180+(180)	200+200	250+250	250+300
Principal axis load (Kg)	50	70	120	200
Machine load (kg)	350	600	1200	2500
Size of oil reservoir (mm)	880570350	1150660450	1250750500	17201050500
Oil tank( mm)	13001000460	1250760550	12501150590	20001500500
Machine weight (kg)	1600	2200	2600	3600
Optimal surface (um)	≤0.3	≤0.3	≤0.3	≤0.3
Min Electrode consumption	0.30%	0.30%	0.30%	0.30%
Max machining speed (mm3/min)	400	400	400	400

I. Machine features

1. Machine body structure with advanced castings of resin sand stress relieving.

2. Adopting precision CAD design and high precision frame structure.

3. X, Y axle movement surface with "TURCITE" and ball screw.

4. X, Y axles are made up V-shape and plane structure, ensuring the precision life of mechanical.

5. Adopting Japan SANYO DC servo motor, linear bearing and high strength and precision of integral castings.

6. Using high frequency induction hardening heating treatment.

7. the table which is precision grinded work table.

8. Using centrifugal high pressure oil pump of WALRUS and 10u filter system.

9. the castings are stress relieving cast iron.

10. the desktop uses high frequency quenching.

11. X, Y axles adopts the screw nuts of "model steel "which is produced by Taiwan.that may install ball screw optionally.

12. with functions of large area process and deep holes process.

13. X, Y axles adopt imported or the same level of ball screw.

14. Import accessories including electrode tip, automatic fire extinguisher, lamps, hand pull pump, page switch, gasket and centimeter bring up competitive machine tools.

II. Machine precision (according to the standard GB5291-85): mm

Item	Result
Flatness of the working table	0.025
Straightness of vertical when the working table moves	X: 0.02
Straightness of vertical when the working table moves	Y: 0.02
Straightness of horizontal when the working table moves	X: 0.01/300
Straightness of horizontal when the working table moves	Y: 0.01/300
Parallelism of the working table to motion of the working table	X: 0.02/300
	Y: 0.02/300
Perpendicularity of transverse motion of the working table to lengthways motion of the working table	0.015/300
	0.015/300
Perpendicularity of assistant motion of Z-axis to the working table	0.02/100
	0.02/100
Straightness degree of motion of main axis	0.02/300
Perpendicularity of motion of main axis to the working table	0.01/100
	0.01/100
Torsion of motion of principal axis	0.01
Parallelism of linked plane of main axis to the working table	0.01/100
	0.01/100
Side rigidity of main axis	0.01
Torsional rigidity of main axis	0.01
