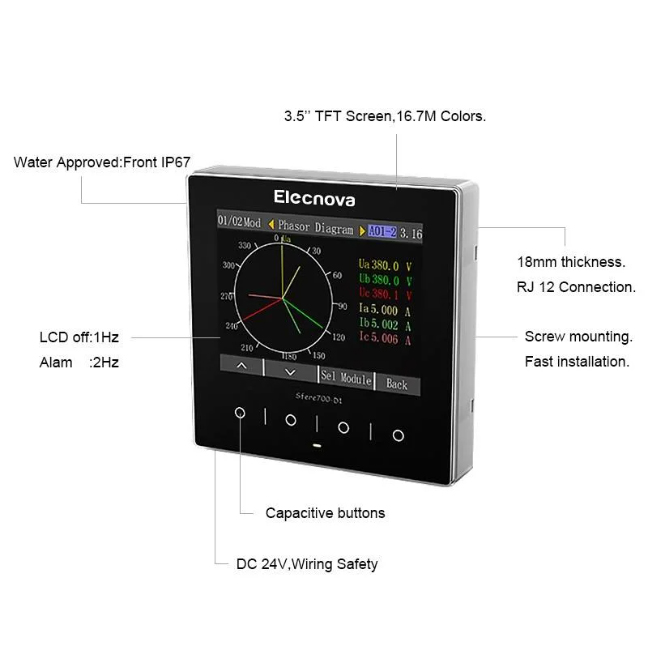

TFT Display Touch Button Compact Design 3 Phase Remote Power Monitoring System Multi Circuit Multi Channel Power Meter
| FOB Price: | 205.00 - 247.00 USD/Piece |
|---|
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: Elecnova
- color: /
- Theory: /
- Resolution: /
- Size: /
- Model Number: Sfere700-D1
Specifications
Basic Info.
Model NO.
Sfere700-D1
Task
Adjust
Structure
Combination
Mathematical Model
Linear
Signal
Continuous
Function
Monitoring, Measurement
Certification
ISO: 9001, CE
Condition
New
Customized
Customized
Material
Stainless Steel
Measuring Voltage Range
0-9999
Accuracy Class
0.5s
Display
TFT
Type
Energy Digital Kwh Meter
Frequency
45-65Hz
Normal Voltage
AC 100V/380V
Rated Current
AC 1A/ 5A
Communication
RS-485/Modbus/2-Wire
Specification
96*96mm
Trademark
ELECNOVA
Origin
China
Production Capacity
20000PCS/Per Month
Product Description

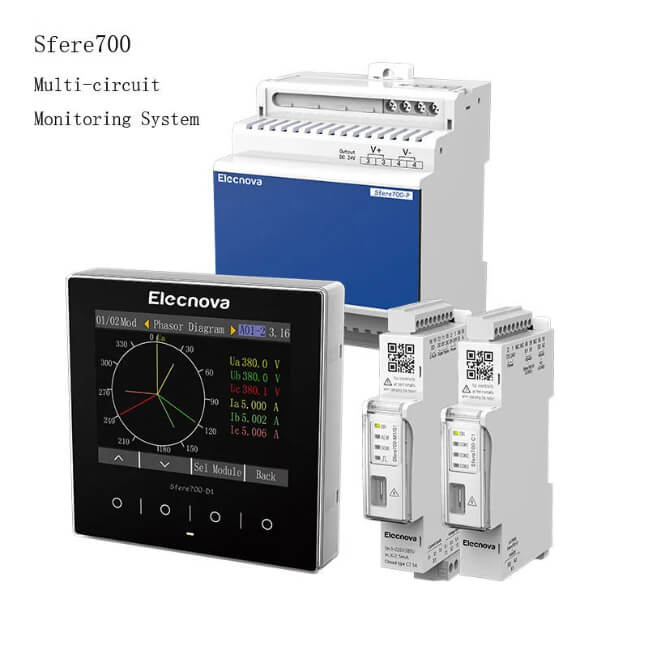

Product Name: Multi-circuit power monitoring system TFT display touch button compact design 3 phase remote power monitoring system multi circuit Multi Channel Power Meter
Sfere700-D1 is equipped with electrical variable measurement, energy metering and power quality analysis functions. Sfere700-D1 also can be extended with I/O modules for monitoring and controlling equipment at field, realizing system Integration with different smart electricity distribution system and energy management system, and sharing monitoring data and energy data.
Technical Specifications
Display Mode |
Sfere700-D1:TFT | |
Accuracy |
V/A |
0.2% |
P/Q/S/PF |
0.2% | |
F |
±0.01Hz | |
±kWh |
Class 0.2S | |
±kvar |
Class 2 | |
Voltage Input |
Rated value |
AC 100V/ 380V |
Overload |
Continuous: 1.2Vn Instantaneous: 2Vn/1010s | |
Burden |
≤0.1VA(per phase) | |
Impedance |
≥1.7MΩ | |
Frequency |
45Hz~65Hz | |
Current Input |
Rated value |
AC 1A/5A |
Overload |
Continuous: 1.2In Instantaneous: 2In/5s | |
Burden |
≤0.2VA(per phase) | |
Impedance |
≤20mΩ | |
Auxiliary Supply |
Working range |
AC 80~270V 50/60Hz, DC 100~350V |
Consumption |
≤5VA | |
Communication Port |
RS485, Modbus-RTU, 2-wire, up to 38.4kbps | |
Energy Pulse Output |
1 photocoupler output, pulse width(80±20%)ms | |
Digital Input |
2 AC wet contact inputs, Isolation: 5kVAC | |
Relay Output |
2 relay outputs, contact rated at AC 5A/250V or DC 5A/30V, Isolation: 2kVAC | |
Environment |
Operating temperature |
-25C~70C |
Storage temperature |
-30C~80C | |
Relative humidity |
≤93% | |
Altitude |
≤2500m | |
Insulation |
≥2kVAC | |
IP Degree |
Front IP64, Rear IP20 |

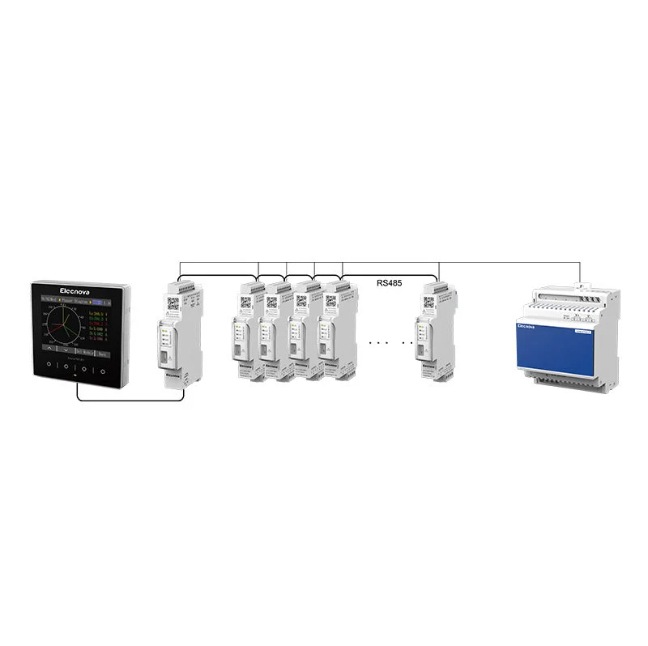

Typical Wiring
Application

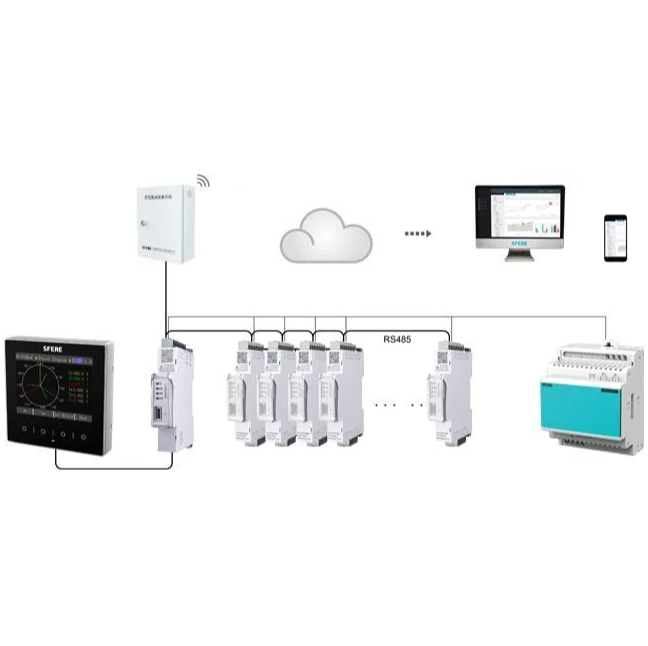

Sfere700-D1 energy meter can be used as single unit but also multi-devices running which control by an advanced monitoring software SFERE3000. SFERE3000 is a comunication management software which collect the data from the meters and upload them to the PC or Mobile phone tansmitted by the concentrator. It provides high performance of quality management such as power monitoring, error alam and long-range control to the factory, residencial area and commercial building etc. SFERE3000 is a patent product which developed by Jiangsu Sfere Electric Co., Ltd and the company owns the intellectrual property of it.
FAQ
Q: Are you trading company or manufacturer?
A: We are factory located in Jiangyin Jiangsu Province.
Q: Does your company provide customized manufacturing?
A: We provide OEM/ODM service to our customers. Our experienced R&D team will give our customer solution in a high efficiency way.
Q: how long is your delivery time?
A: 3-5 working days for the items were in stock, 15-21days for the items out of stock.
Q: Do you provide samples? Is it free or extra?
A: You need to pay for the sample and cover the freight as well.
Q: What is your terms of payment?
A: Order amount less than $3000, 100% paid before shipment, order amount more than $3000,30% as deposit, 70% before shipment, or by negotiated for the both parties.
