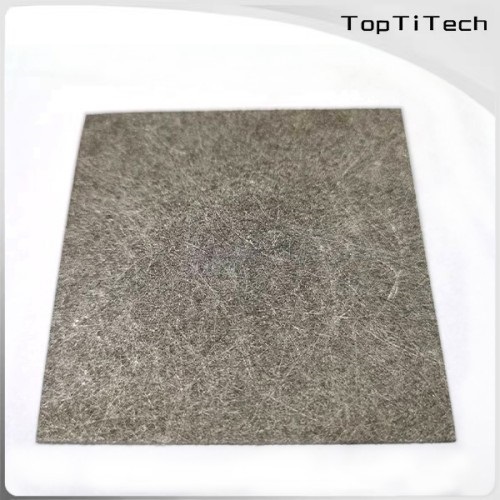

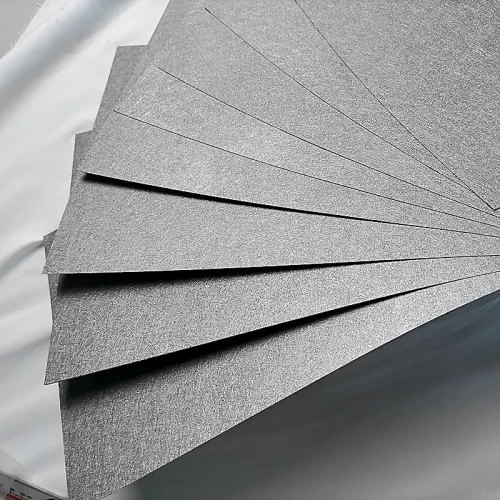

Pure Titanium Electrode Porous Fiber Felts for PEM Fuel Cell

Specifications

Pure Titanium Electrode Porous Fiber Felts for PEM Fuel Cell

Pure TitaniumELectrodePOrousFiberFElts, also known as ti felts or ti fiber felts, are commonly used in electrolyzer stacks as the diffusion layer or flow field material on the oxygen (anode) side. Unlike carbon-based gas diffusion layers that cannot be used at the oxygen evolution electrode due to immediate oxidation, titanium fiber felt is an ideal diffusion medium that provides electrical contact between the anode catalyst layer and bipolar plate or current collector component. Its unique properties, including high porosity and uniform pore size distribution, enable efficient gas transport and water management within the cell, enhancing the overall efficiency of the electrolysis process. Overall, the use of titanium fiber felt in electrolyzer stacks improves their durability, reliability, and efficiency in hydrogen production.

TOPTITECH's Pure TitaniumELectrodePOrousFiberFElts, made using pure titanium fibers through a unique paving and ultra-high temperature vacuum sintering process, meets international technical standards. with its superior properties, such as high porosity, uniform pore size distribution, strong corrosion resistance, good water permeability, efficient heat dissipation, high current density, low voltage, stable performance, and long service life, it outperforms titanium mesh and titanium powder sintered plates. this versatile material finds wide applications across multiple industries, including military, aerospace, civil, and medical. TOPTITECH's titanium fiber felt is a reliable alternative to imported products, providing superior quality and performance in domestic industries.

Parameter

Material: pure titanium fiber

Max Size: 1000x1000mm

Other Size:200x200mm, 205x205mm, 300x300mm, 305x305mm or customized

Porosity: 60%-80%

Thickness:0.25-2mm

Features

1. Uniform pore size distribution: Titanium fiber felt's consistent pore size distribution ensures efficient filtration and separation processes, providing reliable filtration performance.

2. Strong corrosion resistance: Titanium fiber felt's exceptional corrosion resistance makes it suitable for harsh environments and ensures reliable performance in applications requiring durability and longevity.

3. Good water permeability: Titanium fiber felt's good water permeability makes it useful for water filtration and wastewater treatment applications, providing clean and safe water for various applications.

4. High porosity: Titanium fiber felt's high porosity enables high gas and liquid flow rates, allowing for efficient heat transfer and suitable for thermal management applications.

5. Good heat dissipation: Titanium fiber felt's excellent heat dissipation properties make it ideal for high-temperature environments, ensuring stable performance and long-term durability.

6. High current density: Titanium fiber felt's high current density ensures efficient electrochemical reactions, enhancing the performance of electrochemical devices such as batteries, fuel cells, and electrolyzers.

7. Low voltage: Titanium fiber felt's low voltage characteristics ensure safe and reliable performance in electrical applications, particularly in electrochemistry where low voltage is required.

8. Stable performance and long service life: Titanium fiber felt's excellent mechanical and thermal stability provides stable performance and a long service life, making it a reliable material for various industrial applications.

Appilcation in PEM

Titanium fiber felt is used in proton exchange membrane (PEM) electrolyzers as a gas diffusion layer (GDL) to improve the performance of the electrolysis process. As a GDL, it enables efficient gas transport and water management within the cell, enhancing the overall efficiency of the electrolyzer. the high porosity and uniform pore size distribution of titanium fiber felt enable high gas and liquid flow rates, providing optimal conditions for the electrochemical reaction. Additionally, its high current density and low voltage characteristics enhance the performance of the electrolyzer by promoting efficient electrochemical reactions. Overall, the use of titanium fiber felt as a GDL in PEM electrolyzers improves their efficiency, durability, and reliability, making them an ideal choice for hydrogen production.
