PVC Plastic Film Forming Quartz Heater Lamp 200 Degrees C Fast Heating Infrared Lamp

FOB Price:	1.00 - 100.00 USD/Piece
Supply Ability:	6,000 Piece(s) per Month
Shipping:	by air
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	wooden box

Quick Details

Material: Glass
Color: Yellow
Brand Name: E-DEN
D*M: E-DEN
Model Number: IR lamp

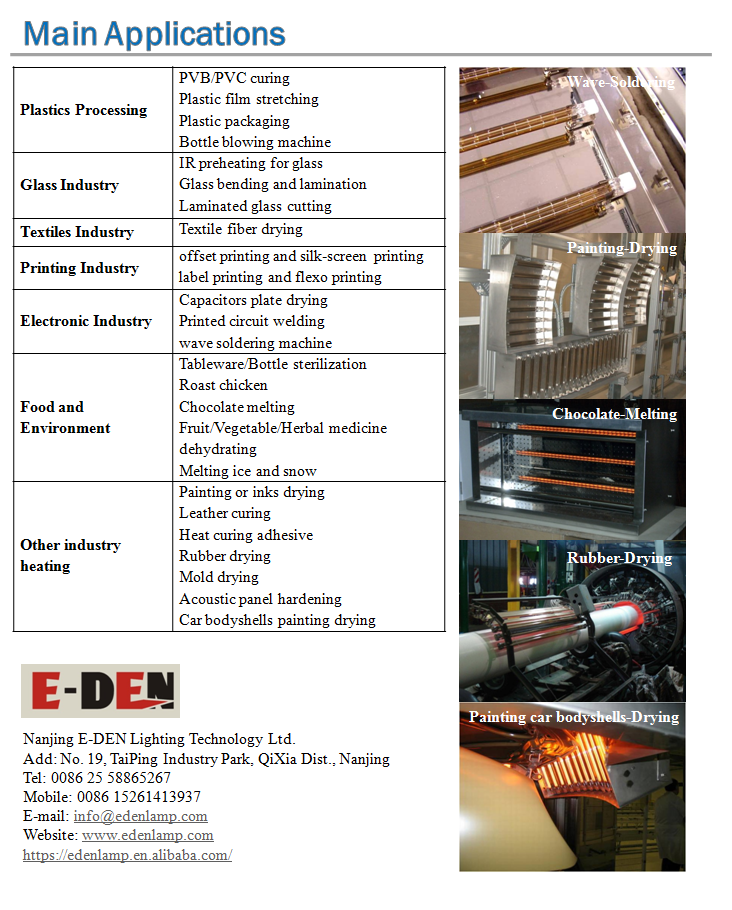

Application: Industry Heating Process
Single tube diameter: 11mm/12mm/14mm
Voltage: 50V-600V
Customized Wattage: 100W-8000W
Lamp total length: 160mm-1600mm
Reflector: White ceramic/Gold
Working position: Horizontal or Vertical
Response time: 1 second
IR Energy: Short wave
Plastic lamination: PVC, PET, PE

Specifications

E-DEN Infrared Lamps / Advantages

1: Can switch on and off frequently
2: 1~2 seconds fast response time to full power heating
3: Output power can be adjusted simply by voltage regulator (0V~lamp rated voltage)
4: Accurate(±1 ℃)heating temperature control with SCR regulator
5: Small installation space, flexible horizontal or vertical burning position
6: for all industrial applications, the highest working temperature up to 1000 ℃
7:Special Gold reflector (90% reflective rate) and Nano-ceramic reflector (70% reflective rate) coated on lamp quartz surface to reflect and increase the infrared radiation on heated objects
8: Different objects different matched IR radiation wavelength Short wave (1.0~1.4μm), Fast response medium wave (1.4~2.0μm), Carbon medium wave (2.0~2.5μm), Medium wave (2.2~3.2μm).
9: Higher density power output the highest surface power output of short wave lamp is 200KW/M2, Fast response medium wave lamp is 130KW/M2, Carbon medium wave lamp is 100KW/M2, Medium wave lamp is 60KW/M2.
10: We guarantee 5000 hours average working life.
