Home >Products Catalog > Eight Shafts Turrent Type Cutting Slitting Machine for Paper, Film Or Tape

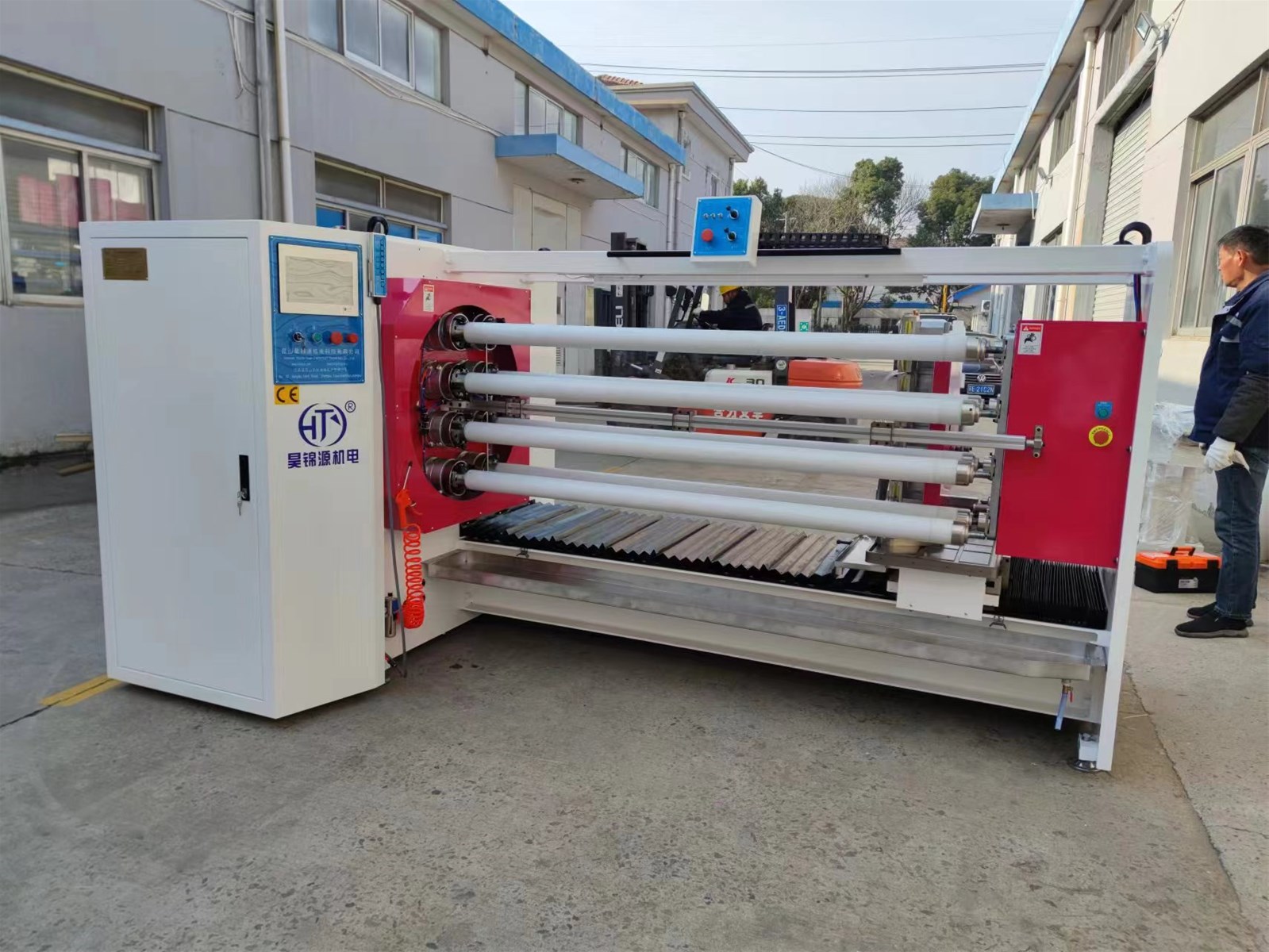

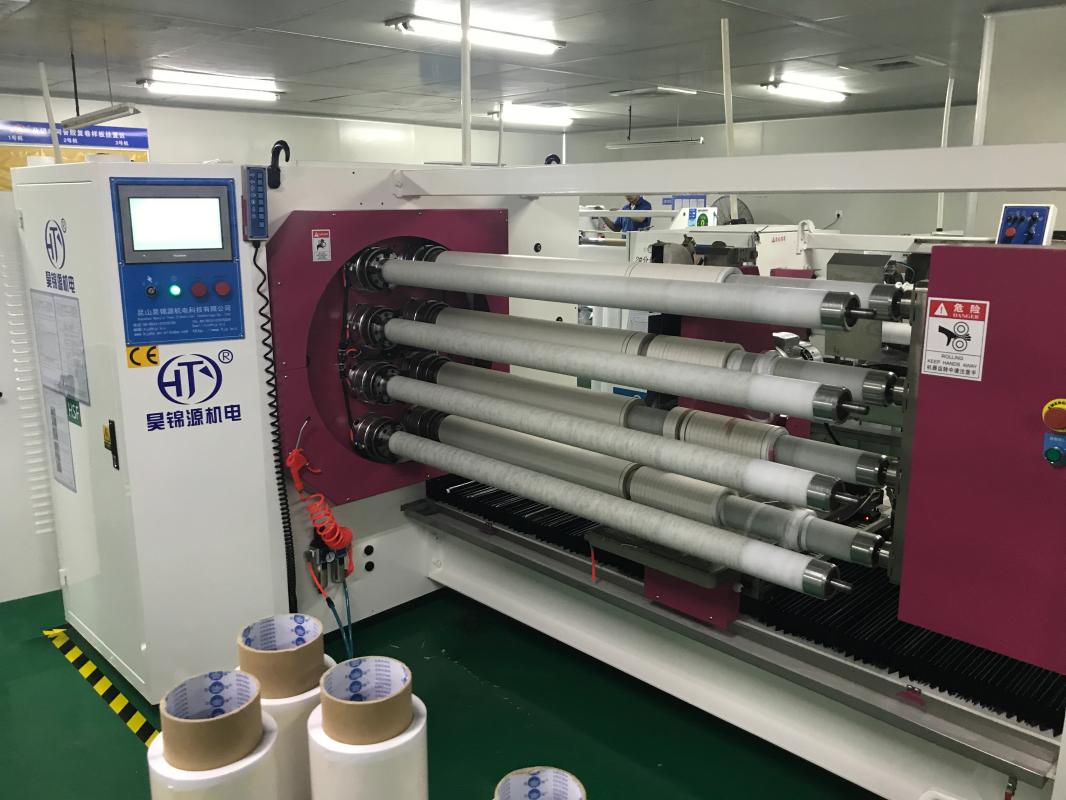

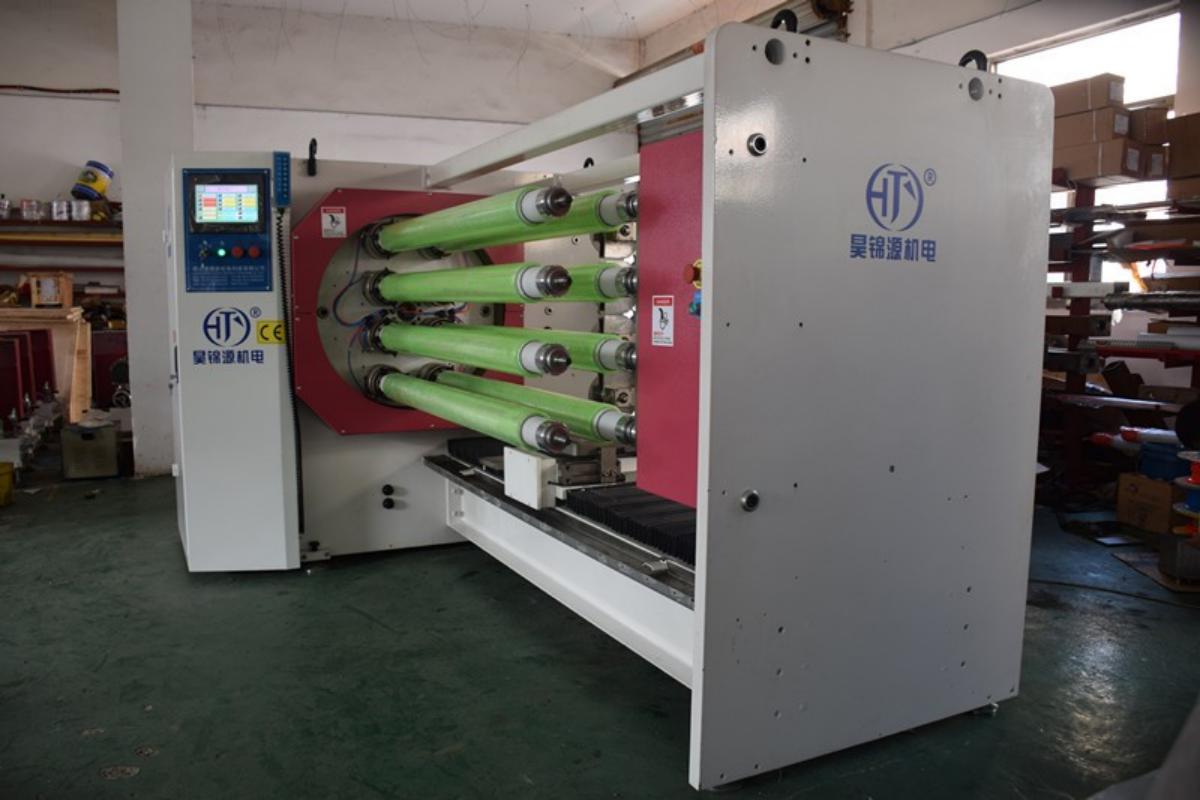

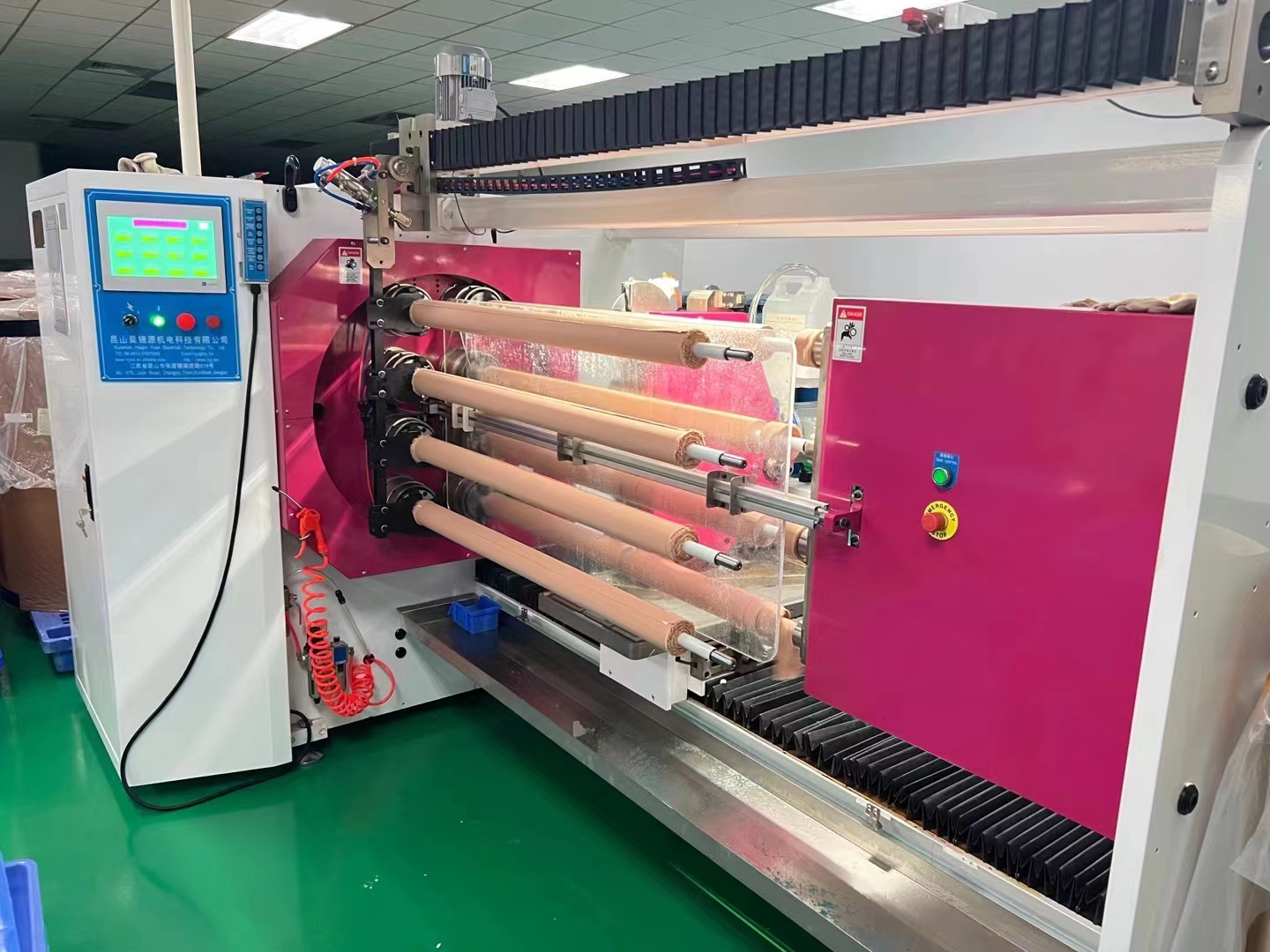

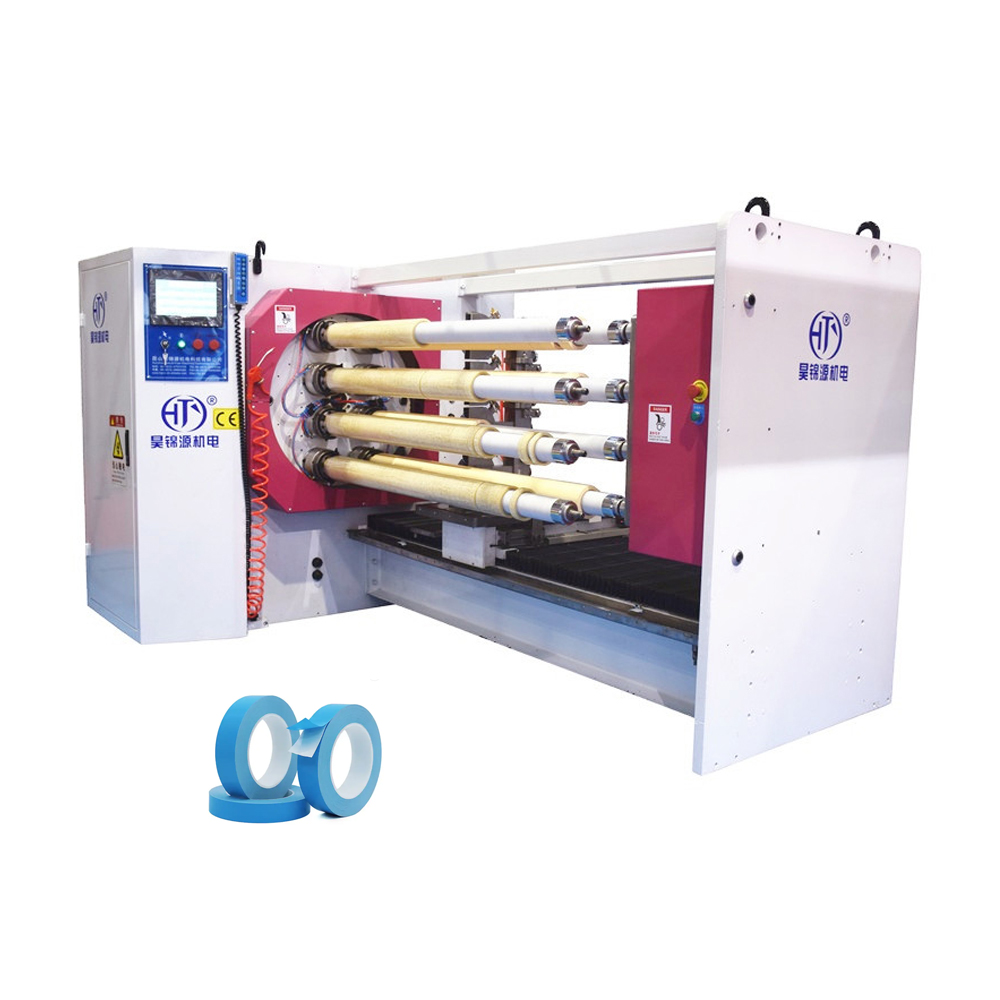

Eight Shafts Turrent Type Cutting Slitting Machine for Paper, Film Or Tape

FOB Price:	22000.00 - 26000.00 USD/Set
Supply Ability:	20 Set(s) per Month
Shipping:	FOB SHANGHAI, CIF PORT
Payment Terms:	L/C, D/A, D/P, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	PACKED WITH PLYWOODEN EXPORT CARTON

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE, ISO 9001
Brand Name: HAOJINYUAN
Type: Slitting Rewinder
Condition: New
Warranty: 1 YEAR
Weight: 3400KG
Dimension(L*W*H): 3250*1900*1700 mm
Power(W): 7000 w
Voltage: 380v or requested
Model Number: QJ08
Computerized: Yes
Cutting precision: 0.1mm
Max. Cutting O.D: 150mm
Min. Cutting width: 2mm
PLC: Japan Mitsubidshi 5U
Touch Screen: Japan Fuji
Keywords: Slitting

Specifications

BRAND	MODEL	Description
HAOJINYUAN	HJY-QJ08	8 Shafts Log Roll Tape Cutting Machine

Eight shafts log roll tape slitting machine has turret exchange system, suitable for high speed cutting log rolls of BOPP packing tape, PVC insulation tape, masking tape, wire harness tape, double sided tape, duct tape, aluminum foil tape, etc.
Main Features
1.Main driving part: AC motor with frequency converter is employed. the acceleration and the deceleration are fast and steady.
2. Central control unit: programmable central control is used and various sizes can be set on the same shaft for automatic
Transfer and cutting.

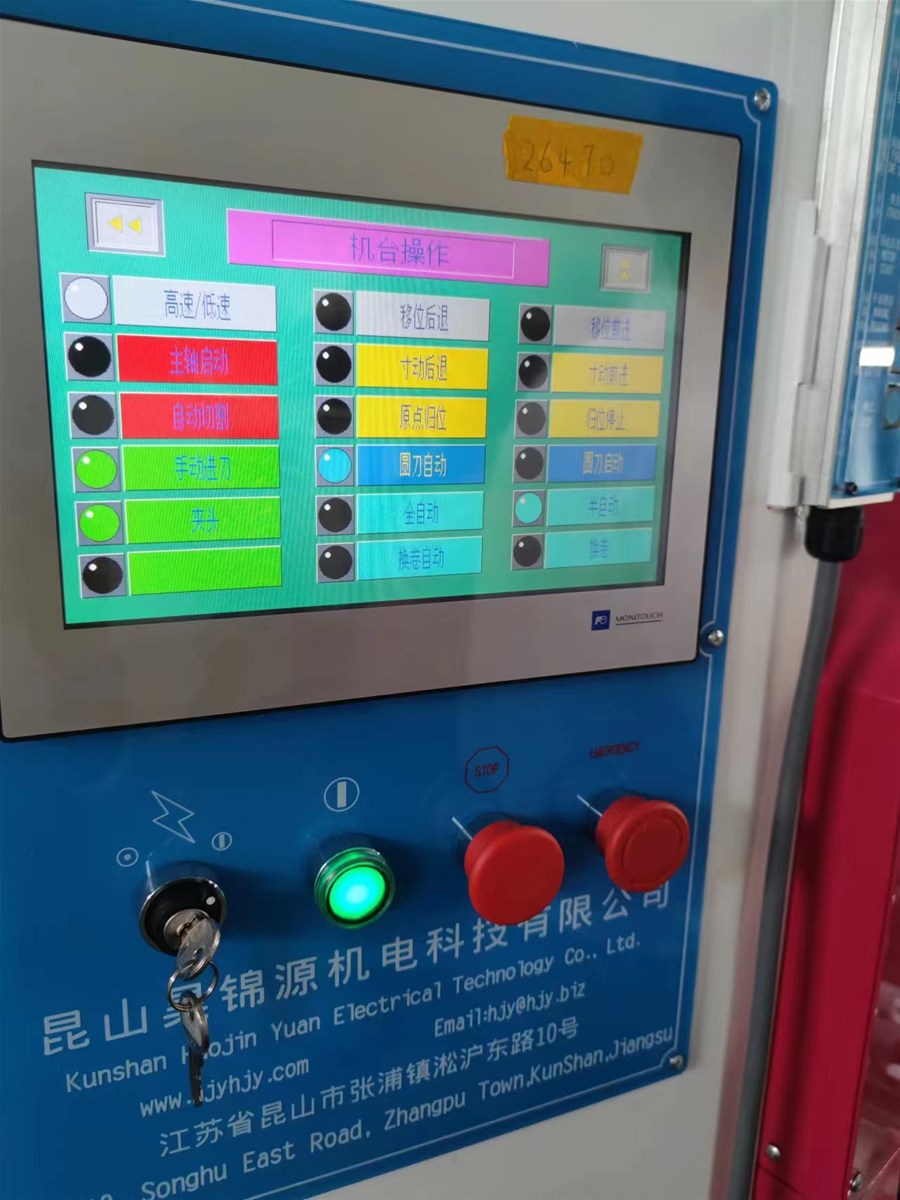

3. Operating panel: all functions are operated on the LCD touch panel.
4. Motor control system: the central control system is PLC programmable controller. Various sizes can be set on the same shaft,and the cutting width is adjusted automatically.
5. Cutting positioning system: cutting positioning is controlled by servo motor. the imported high precision enlarge to ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.
6. Blade feeding positioning system: blade feeding is controlled by servo motor, and the cutting speed is adjustable in three stages. the efficiency is improved and the best quality is guaranteed.
7. Auto angle adjustment of circular blade:servo motor is used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°). the cutting angle is changed directly when the cutting surface is not smooth, so the efficiency is improved.
8. Quick shaft change system: three kinds of shafts are available and quick change of shafts is applied for different materials.

Main Technical Parameter

Machine width	1000mm, 1300mm, 1600mm
Max. Cutting O.D.	150 mm
Inner core I.D.	1" - 3"
Min. Cutting width	3mm
