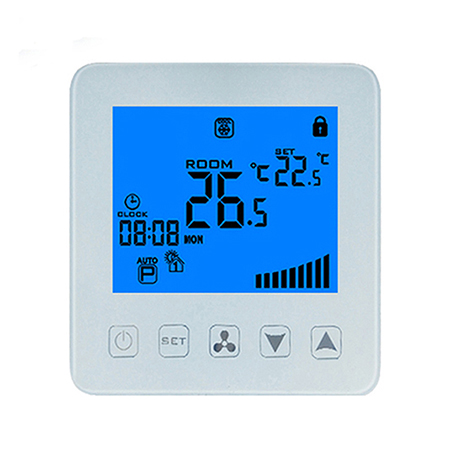

FC08-04 Smart WiFi Touch Key Thermostat for Fan Coil Unit

FOB Price:	14.00 - 20.00 USD/Piece
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

Type: HVAC Systems
Brand Name: JP Controls
Certification: CE, Rohs
Size: 86*86*14
color: White or black
Model Number: HY08AC-04
Power: 85-250Vac, 50/60Hz
Application: fan coil or air conditioning system
Current output: 3A max.

Specifications

HY08AC04 Touch screen netingworking thermostat of FCU
Features:

Fashionable appearance
Detect and Display Room Temperature
Large LCD display touch screen
Cool, heat, ventilating and auto mode
3-speed fan and auto mode control
7+4 periods programming (-NK,communicating type not included)
2-pipe or 4-pipe fan coil unit
Connect 2-wire or 3-wire valves
Key lock function to avoid mistake operation
Celsius (°C)/Fahrenheit (F°) set

Specifications:

Power Supply:

100-240Vac, 50/60Hz or 24V

Setpoint Range:

5-35°C

Set Unit:

1℃/step

Display Accuracy:

±0.5°C

Display:

LCD display touch screen

Mode Setting:

Cool, Heat, Ventilating

Fan Speed Adjust:

Low, Medium, High, Auto

Control Performance:

on/off

Temperature Sensor:

NTC 10K

Enclosure:

ABS plastic

Remote Control:

Remote controller optional

Networking:

RS485

Dimension:

86*86*14mm

Ambient Condition:

-10~50℃, 5-95% RH (non-condensing)

Mounting:

Wall mounted

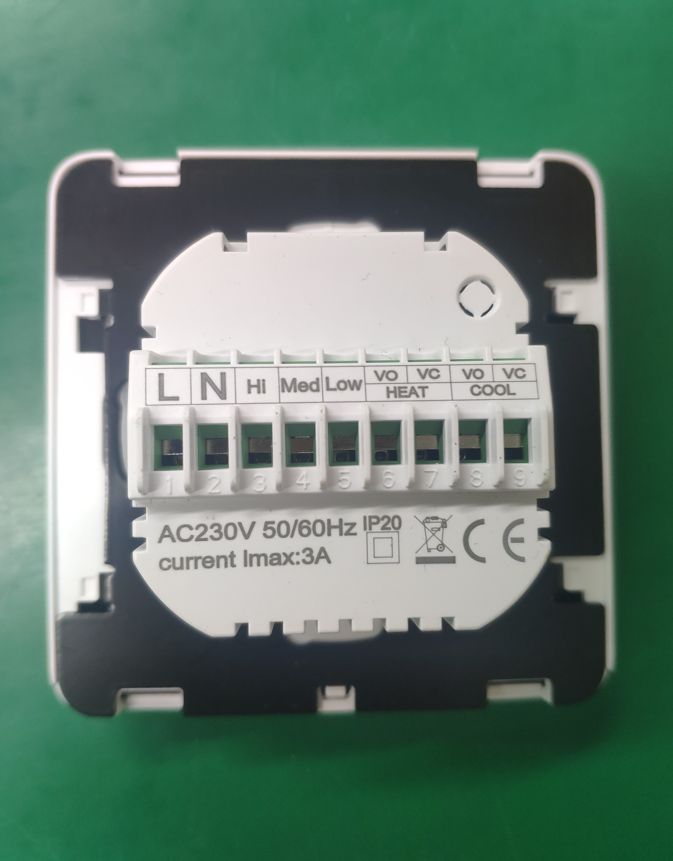

Wiring:

Terminal block max. 1.5mm2

Protection:

IP 20
