>Products Catalog > Heating Thermostat > ST-C85 Smart Wi-Fi Touch Screen Heating Thermostat 3A, 16A

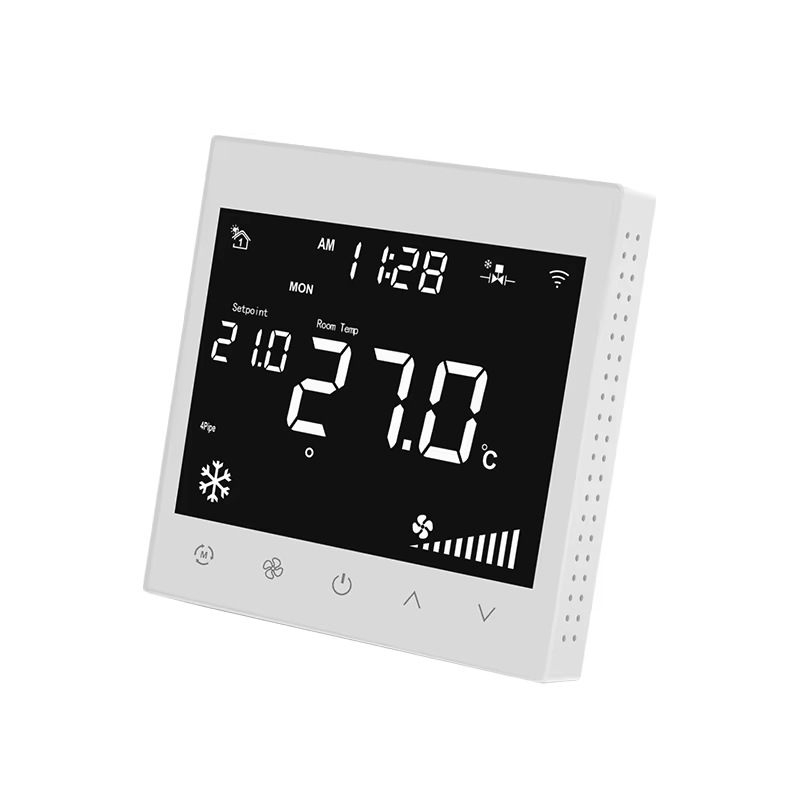

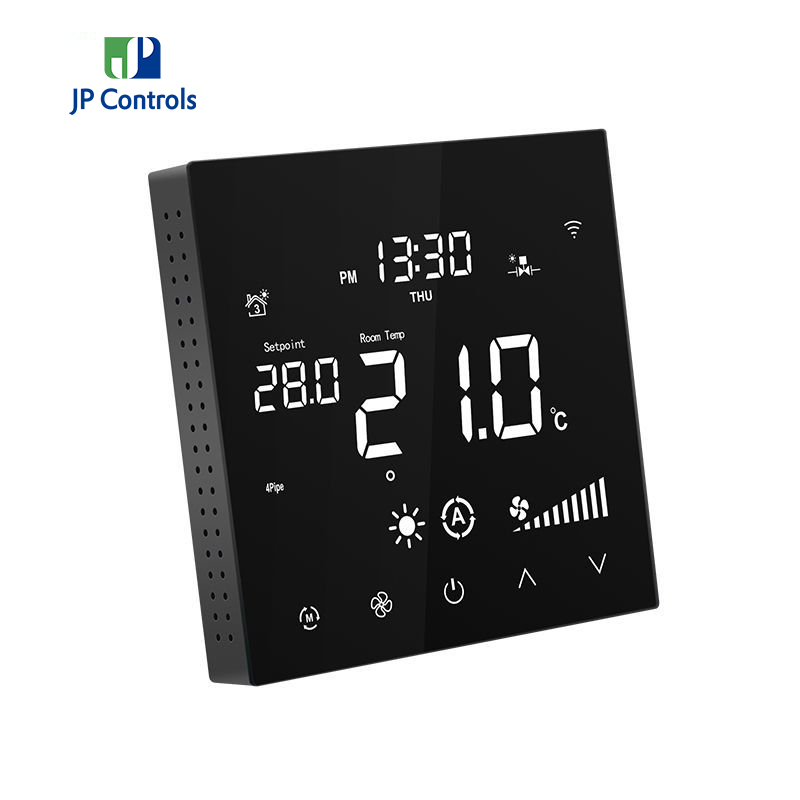

ST-C85 Smart Wi-Fi Touch Screen Heating Thermostat 3A, 16A
| FOB Price: | 15.00 - 25.00 USD/Piece |
|---|---|
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Type: HVAC Systems
- Brand Name: JP Controls
- Certification: CE, Rohs
- Size: 86*86*12
- color: black
Specifications
Features:
New designed smart FCU thermostat
Detect and display room Temperature & humidity
Tuya WiFi APP
OCC/ESI/DP, external sensor
Cooling, heating, ventilating or auto mode
Fan 3 speed & auto mode
7+4 periods programming
2-pipe or 4-pipe fan coil unit
Connect 2-wire or 3-wire valves
Key lock function to avoid mistake operation
Output: relays or analog siganl 0-10V
Celsius (°C)/Fahrenheit (F°) set
Specifications:
| Power Supply | 100-250VAC, 50/60Hz | |||||||||
| Self comsumption | <3W | |||||||||
| Load current | Max 3A | |||||||||
| Setpoint Range | 1-50°C ( Default 16-30°C) | |||||||||
| Set Unit | 1°C/step | |||||||||
| Display Accuracy | ±0.1°C | |||||||||
| Networking | Modbus RS485 | |||||||||
| Fan type | 3-speed fan or EC motor fan | |||||||||
| Outputs | Relays or 0-10V analog signal | |||||||||
| Temperature Sensor | NTC 10K | |||||||||
| LCD | LCD 77x57 mm, black background white lignting | |||||||||
| Enclosure | Fire proof ABS, white or black color optional | |||||||||
| Ambient Condition | -10°C~60°C, 5-95% RH (non-condensing) | |||||||||
| Dimension | 86*86*14.3mm | |||||||||
| Mounting | Wall mounted with standard EU box | |||||||||
| Wiring | Terminal block max. 1.5 mm2 | |||||||||
| Installation hole distance | 60mm | |||||||||
| Protection | IP20 | |||||||||
