Home >Products Catalog > ductile iron elbow > Wholesale Products 90 45 22.5 11.25 Degree Elbow Ductile Iron Pipe Fittings

Wholesale Products 90 45 22.5 11.25 Degree Elbow Ductile Iron Pipe Fittings

Supply Ability:	10,000 Carton(s) per Week
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	cartons

Quick Details

Connection: grooved
Brand Name: Lulin
Type: Coupling
Technics: Casting
Material: ductile iron
Material: Ductile Iron
Working Pressure: 300 PSI
color: red

Specifications

90 degree 45 degree 22.5 degree Elbow

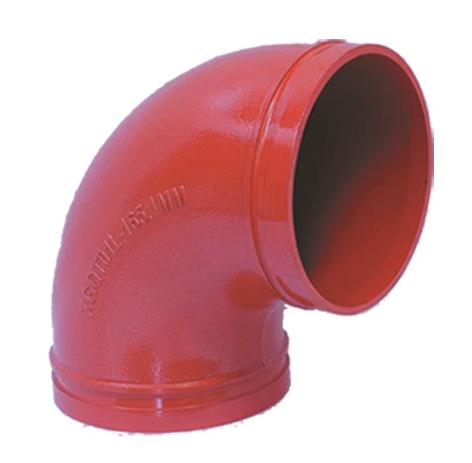

Ductile Cast 90° Elbow:
Wholesale Products 90 45 225 1125 degree Elbow ductile Iron Pipe Fittings

Nominal Size(mm/in) 50/2 65/2 65/2 80/3 100/4 100/4 125/5 125/5 125/5 150/6 150/6 150/6 200/8 250/10 300/12

Pipe O.D Pressure(mm) 60.3/2.375 73.0/2.875 76.1/3 88.9/3.5 108/4.25 114.3/4.5 133/5.25 139.7/5.5 141.3/5.563 159/6.25 165.1/6.5 168.3/6.625 219.1/8.625 273/10.75 323.9/12.750

Working PSI/MPa(mm/in) 300/2.07

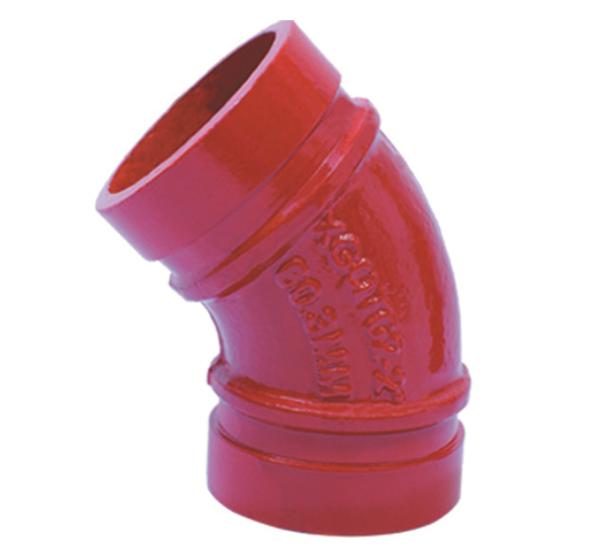

Ductile Iron 45 degrees elbow:
Wholesale Products 90 45 225 1125 degree Elbow ductile Iron Pipe Fittings

Nominal Size(mm/in)

25/1 32/1 40/1 50/2 65/2 65/2 80/3 100/4 100/4 125/5 125/5 125/5 150/6 150/6 150/6 200/8 250/10 300/12

Pipe O.D Pressure(mm)

33.7/1.327 42.4/1.669 48.3/1.9 60.3/2.375 73.0/2.875 76.1/3 88.9/3.5 108/4.25 114.3/4.5 133/5.25 139.7/5.5 141.3/5.563 159/6.25 165.1/6.5 168.3/6.625 219.1/8.625 273/10.75 323.9/12.750

Working PSI/MPa(mm/in) 300/2.07

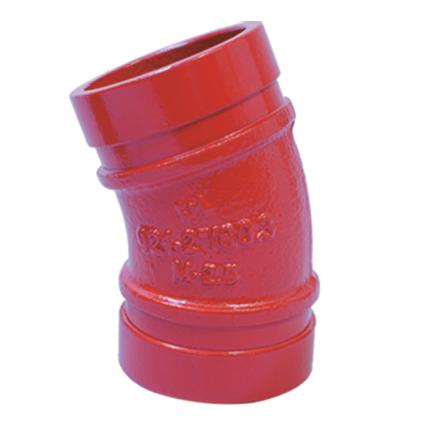

Ductile Cast 22.5 degrees Elbow:
Wholesale Products 90 45 225 1125 degree Elbow ductile Iron Pipe Fittings

Nominal Size(mm/in)

50/2 65/2 65/2 80/3 100/4 100/4 125/5 125/5 125/5 150/6 150/6 150/6 200/8

Pipe O.D Pressure(mm)

60.3/2.375 73.0/2.875 76.1/3 88.9/3.5 108/4.25 114.3/4.5 133/5.25 139.7/5.5 141.3/5.563 159/6.25 165.1/6.5 168.3/6.625 219.1/8.625

Working PSI/MPa(mm/in) 300/2.07

Ductile Iron 11.25 Degrees Elbow:
Wholesale Products 90 45 225 1125 degree Elbow ductile Iron Pipe Fittings

Nominal Size(mm/in)

50/2 65/2 65/2 80/3 100/4 100/4 125/5 125/5 125/5 150/6 150/6 150/6 200/8

Pipe O.D Pressure(mm)

60.3/2.375 73.0/2.875 76.1/3 88.9/3.5 108/4.25 114.3/4.5 133/5.25 139.7/5.5 141.3/5.563 159/6.25 165.1/6.5 168.3/6.625 219.1/8.625
