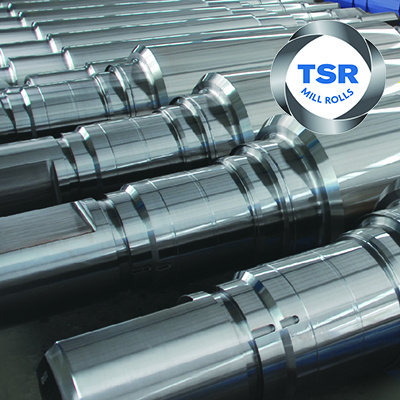

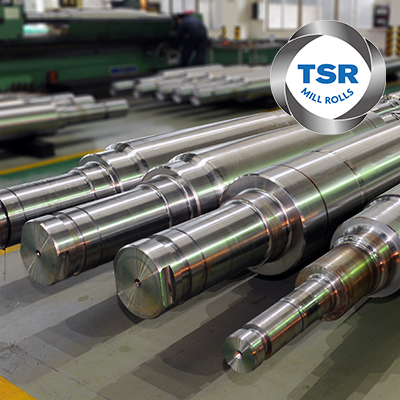

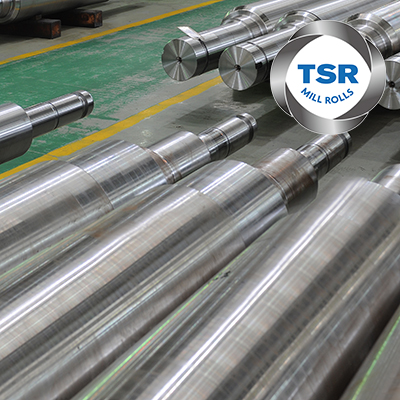

Forged Steel Rolls For Cold Rolling Mills, 3% Cr 5% Cr Mill Rolls, Forged Work Rolls, Intermediate Rolls & Backup Roll

FOB Price:	3000.00 - 100000.00 USD/Piece
Supply Ability:	20,000 Ton(s) per Year
Shipping:	By sea / railway
Payment Terms:	L/C, D/A, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China

Quick Details

Certification: GBT-13314
Plating: N/A
Material: Alloy
Type: Machining Parts
Brand Name: TSR
Model Number: 3%Cr, 5%Cr
Delivery time: 120 days to 180 days
Packing: Steel pallets

Specifications

Product Description

Forged Steel Rolls for cold rolling mill (3%Cr & 5%Cr) Chemical Composition & Property

Material	Chemical Composition
Material	C	Si	Mn	Cr	Ni	Mo	V	P	S
3%Cr Series	0.75-0.95	0.2-0.9	0.2-0.6	2.5-3.2	0.2-0.8	0.2-0.6	<0.25	≤0.02	≤0.015
5%Cr Series	0.7-0.95	0.2-0.9	0.2-0.6	4.5-5.4	0.1-0.8	0.1-0.6	<0.25	≤0.02	≤0.015

Material	Tensile Property Mpa	Barrel Hardness HSD	Working Layer Composition	Hardening Depth mm	Roller Application
3%Cr Series	≥850	88-100	Martensite+M3C (few M7C) and Ar	20-28	Single stand mill, skin pass mill, tandem mill
5%Cr Series	≥950	90-100	Martensite+M7C and few Ar	30-50	Single stand mill, skin pass mill, tandem mill

Maximum product dimensions

Maximum product dimensions	Work rolls	Back-up rolls
Total length	6000 mm	6500 mm
Body length	3500 mm	2500 mm
Diameter	910 mm	1500 mm
Hardening depth (Single side)	50 mm	100 mm
Maximum product weight	13000 kg	50000 kg
Capacity (ton/year)	8000	1000

TECHNOLOGY VC + ESR

VC casting is carried out under vacuum in a vacuum degassing unit.

Dissolved Hydrogen is controlled to 1.0-1.5 ppm.
to minimise gas pickup (oxygen and hydrogen).
Clean ingot.
Homogeneous and refining microstructure.
ESR roll has the advantages of high wear-resistance, high anti-accident and high uniformity of surface hardness.
We TSR rolls, Only provide ESR roll for customers.

Forged Steel Rolls for Cold Rolling Mills3 Cr 5 Cr mill rolls forged work rolls intermediate rolls and backup roll
FORGING

Typical forging reductions for work rolls is 3:1, to avoild the loose structure defect,optimize the microstructure.
Forged Rod Blanks Standard GB/T15547-2012.

QUENCHING and MACHINE

Automatic control induction heating power, stable quenching heating temperature.
Quenching by Constant temperature cooling water, steady quenching cooling intensity.
Multi-heating induction rings design to ensure the heating depth and meet the customer 's Working Layer Requirements.

Forged Steel Rolls for Cold Rolling Mills3 Cr 5 Cr mill rolls forged work rolls intermediate rolls and backup roll

TSR Roll has a machining shop of more than 15.000 square meters, including the lathe, boring machine, grinding machine and other modern processing equipment for rolls. Thanks for the first-class operator working on high-precision CNC equipment, it is easy to produce the rolls with various kinds of grooves and precise tolerances.

CK61160 CNC Lathe, Maximum capacity: 32T
MK84200 CNC Grinding machine, Maximum capacity: 50T
C9125*6/63 Turing and Boring machine, Maximum capacity: 63T
T6920D Boring machine

Forged Steel Rolls for Cold Rolling Mills3 Cr 5 Cr mill rolls forged work rolls intermediate rolls and backup roll
QUALITY ASSURANCE

the high performance requirements of today's mills require reliable rolls capable of remaining in the production cycle longer than ever while still assuring a high quality of the rolled products. TSR Rolls has built a consistent quality control throughout the manufacturing process. Our aim is supplying the customer with reliable rolls capable to perform better, contributing to customer benefit, cost reduction and satisfaction.

since the beginning TSR Rolls obtained the ISO 9001:2008 Quality Management System Certification. Based on our consistent adherence to the quality management, TS Roll products quality has been universally acclaimed by dozens of customers worldwide.

Emission Spectrometer ARL - 3460; Two sets
Carbon & Sulphur Analyzer CS-80
Hydrogen & Oxygen Analyzers
Thermal Analyzer
Hardness Testers (Portable and Laboratory sets)
Ultrasonic Testing Equipments (Several units)
Material Testing Machine WAW-600
Charpy Impact Test Machine JSB-300

Forged Steel Rolls for Cold Rolling Mills3 Cr 5 Cr mill rolls forged work rolls intermediate rolls and backup roll

SERVICE and SUPPORT

at TSR Roll, we are focused on the roll service. Our Technical Service will help you to solve questions about roll maintenance, roll wear, roll damages, roll configuration, shape of the roll, surface hardness, roughness, temperature distribution and damage inspection among others. The aim is reducing the Total Cost of Operation for the customer by supplying reliable rolls and advanced roll service always with strict adherence to the delivery time.
