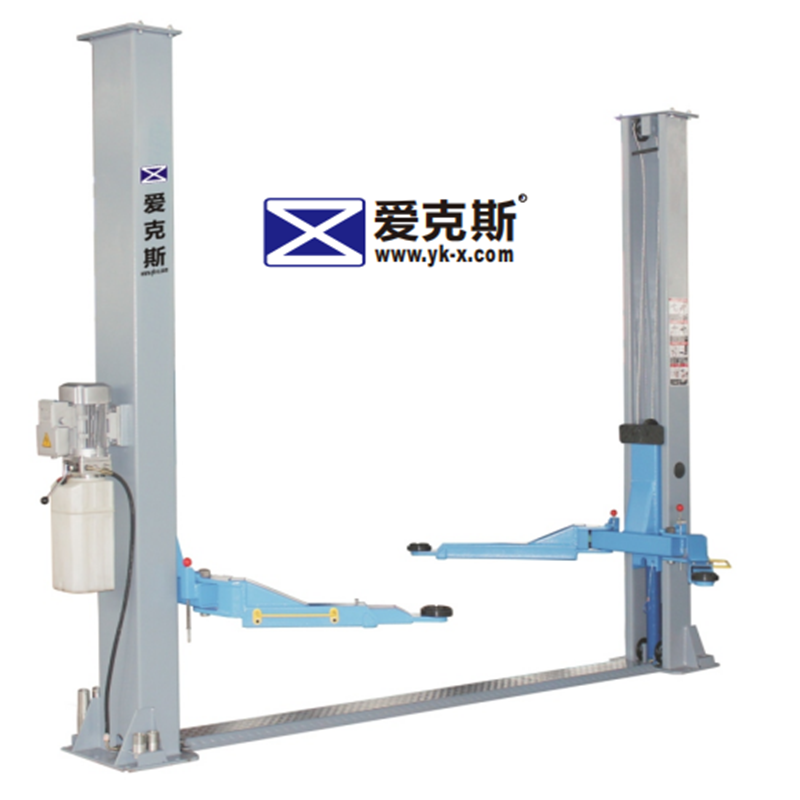

Factory Price Cylinder Floor Plate Two Post Lift for Low Ceiling Shop
| FOB Price: | 1000.00 - 2500.00 USD/Set |
|---|---|
| Supply Ability: | 12,000 Set(s) per Year |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Liaoning in China |
| Packaging Details: | Iron Frame Packing 2900*530*770mm |
Quick Details
- Warranty: 1Years
- Brand Name: X
- Lifting Capacity: 3200/4000KG
- Type: Double Cylinder Hydraulic Lift
- Design: Two Post
- Model Number: XL-2P32FA/40FA
- Overall Width(mm): 3420
- Lifting Height(mm): 1900
- Minimum height: 110mm
- Lifting time: 40-45s/50s
- Overal height: 2830mm
- Width between columns: 2820mm
- Motor power: 2.2kw
- Weight: 555kg/585kg
- Power supply: 220V/240V/380V/415V
- Packing size: 2900*530*770mm
Specifications
Features:
1. Floor plate design is ideal choice for low ceiling shop;
2. by two cylinder,plate and wire rope balance system,lifting and lowering smooth;
3. Hydraulic power unit configuration throttling device,can always adjust the rate of decline.Manual mechanical lock release from two sides;

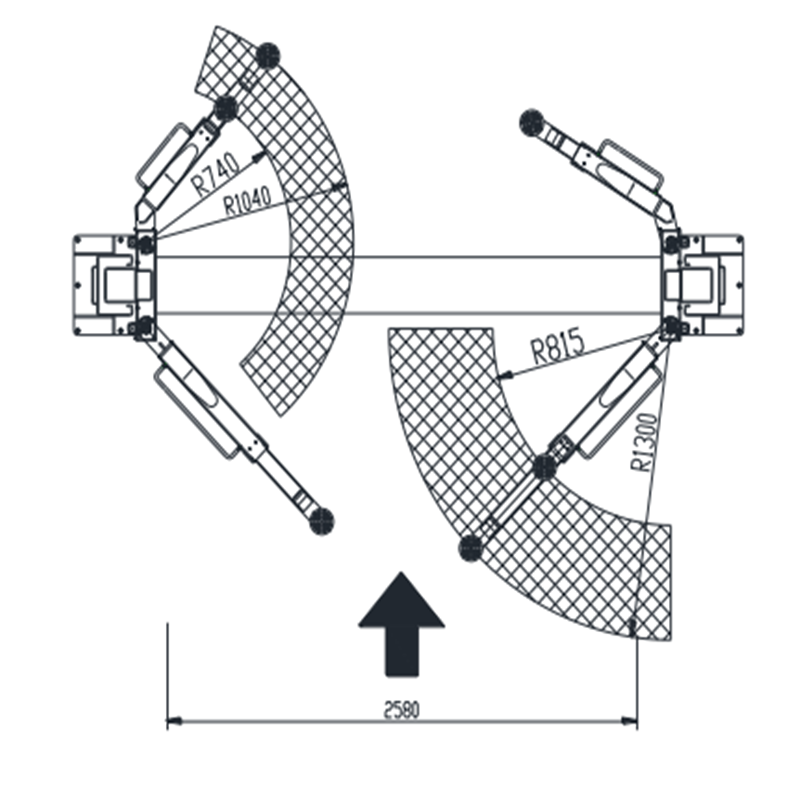

4. 24V height limit switch.Asymmetric arm design,leaves more space for the cars;
5. Rubber pad with spiral adjust the height and in stages adjust the height;
6. Rubber pad door-opening protection;
7. Feet-protection safety guardrails;
8. It has adopted 115%dynamic loading capacity and 150% staic loading capacity tested;
9. CE certificated.

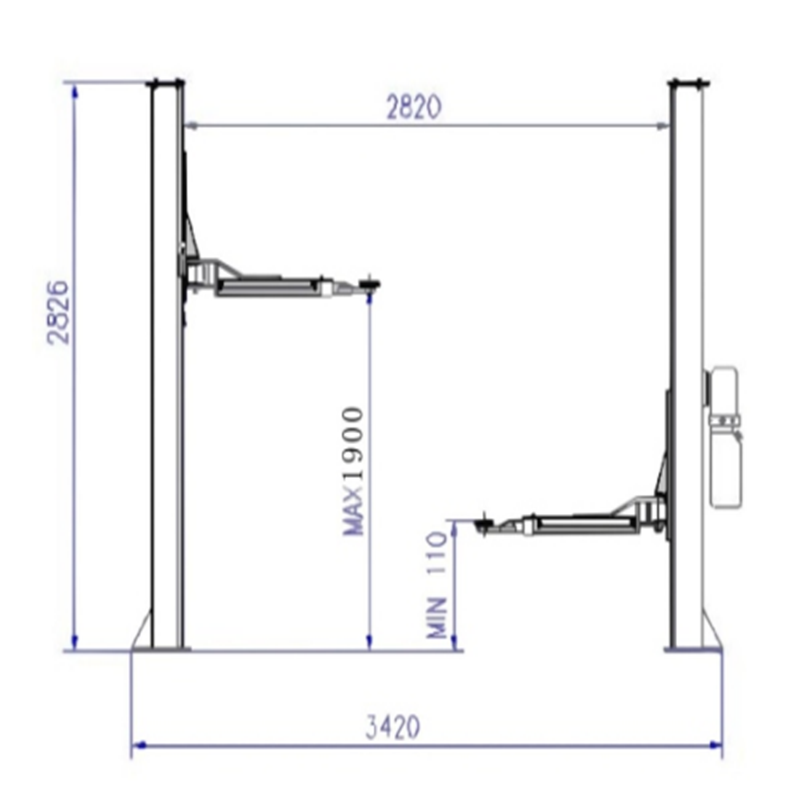

Technical specification:
Lifting capacity-------------------------------------------3200Kg/4000Kg
Lifting height----------------------------------------------1900mm
Minimum height-----------------------------------------110mm
Lifting time-------------------------------------------------40-45s/50s
Overall height----------------------------------------------2830mm
Overall width-----------------------------------------------3420mm
Width between columns--------------------------------2820mm
Motor power-----------------------------------------------2.2kw
Power supply-----------------------------------------------220V/240V/380V/415V
Weigh---------------------------------------------------------555kg/585kg
Packing size--------------------------------------------------2900*530*770mm
20'FCL----------------------------------------------------------24Sets
