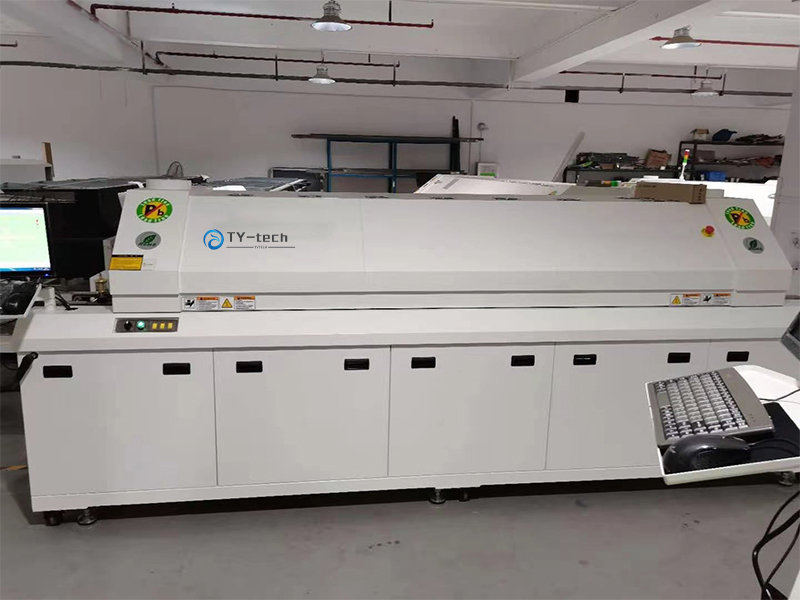

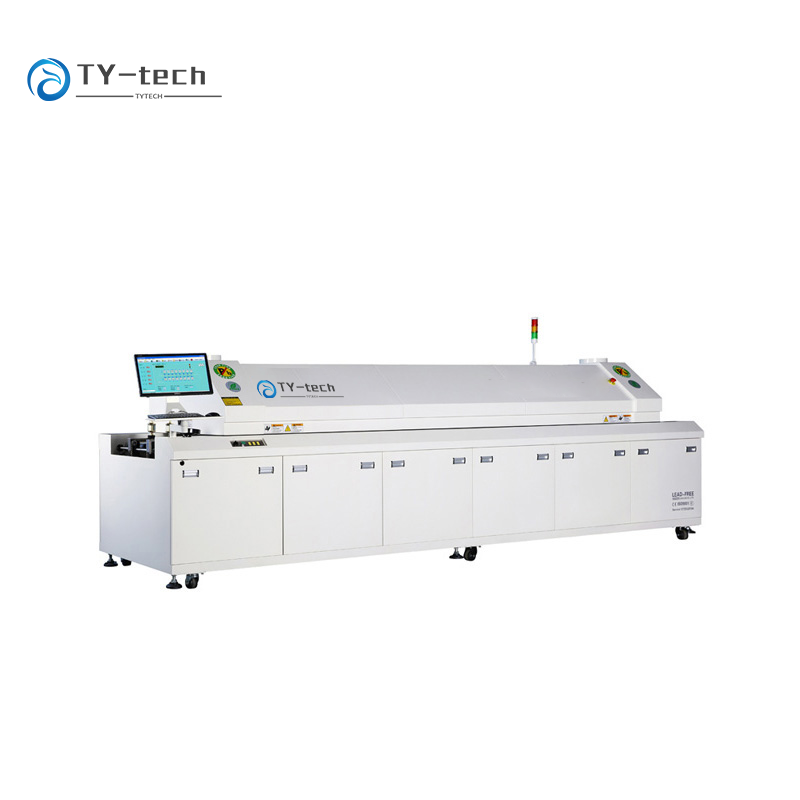

Advanced Intelligent Automatic Reflow Oven with 12 Independent Heating Zones for SMT Line PCB Welding

FOB Price:	1800.00 - 20000.00 USD/Unit
Supply Ability:	100 Unit(s) per Month
Shipping:	Optional
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Export wooden packaging standard

Quick Details

Brand Name: TY-tech
Warranty: customize
Certification: customize
COLOR: white
Lead time: customize
Model Number: TY6010
Number of Heating Zones: 12
Length of heating zones: 4640mm
Max. Width of PCB: 400mm
Mesh belt width: 450mm
Transmission type: Mesh and chain
Transmission Net Height: 900mm
Conveyor speed: 0-2000mm/min
Auto/manual Lubrication: Standard
Fixed rail side: Front rail fixed(option: rear rail fixed)
Components high: Top and bottom 25mm

Specifications

Feature

1. Control system: Computer PLC control system, good stability and compatibility, reliability, and improve the anti-interference of the whole system, make the system run well.

2. Heating system: New energy-saving furnace design, four sides return air, the best temperature uniformity. 6 heating zones, 12 heating modules (up 6/bottom 6), independent temperature control and switch, best heat preservation performance, substrate lateral temperature deviation: ±2℃.

3. Transmission speed: frequency converter speed adjustment 0.35M-1M/Min, precision ± 2mm/min

4. Axial flow fan forced air cooling (up 1/bottom 1 cooling zones)

5. Protection system: temperature over-tolerance alarm, transmission speed over-tolerance alarm, built-in computer and transmission UPS, delayed shutdown function.

Specification:

Model	TYtech 6010
Heating System	Number of heating zones	up 6/BOTTOM 6
	Number of cooling zones	up 1/BOTTOM 1
	Length of heating zones	2500MM
	Heating mode	Hot air
	Cooling Mode	Force air
Conveyor System	Max. Width of PCB	300mm
	Mesh belt width	400mm
	Transmission Direction	L→R(or R→L)
	Transmission Net Height	880±20mm
	Transmission type	Meshand chain
	Range of rail width	0-300mm
	Conveyor speed	0-1500mm/min
	the component height	Top 35mm,bottom 25mm
	Auto/manual Lubrication	Standard

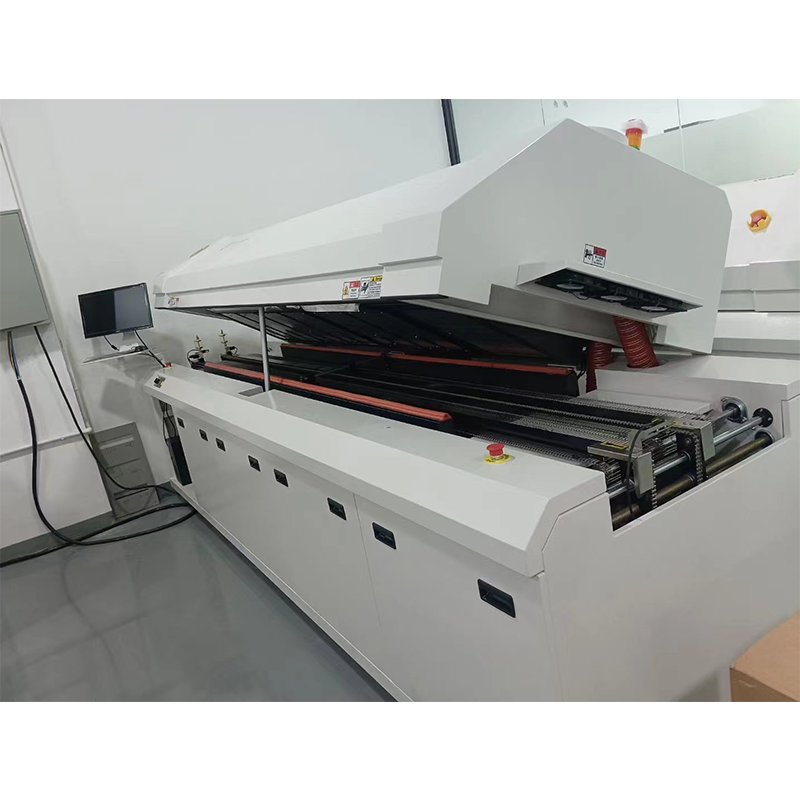

	Upper hood method	Auto electric hood
	Fixed rail side	Front rail fixed(option: rear rail fixed)
	Components high	Top and bottom 25mm
Control system	Power supply	5line 3phase 380V 50/60Hz
	Starting power	18kw
	Normal power consumption	4-7KW
	Warming time	about 20 mins
	Temp. Setting range	Room temperature-300℃
	Temp. Control method	PLC & PC
	Temp. Control precision	±1℃
	Temp. Deviation on PCB	±2℃
	Data storage	Process Data and status storage(80GB)
	Nozzle plate	Aluminum Alloy Plate
	Abnormal Alarm	Abnormal temperature. (extra-high/extra-low temp.)
	Board dropped alarm	Tower light: Yellow-warming, Green-normal, Red-abnormal
General	Dimension(LWH)	370011001490mm
	Weight	900KG
	Color	Computer gray
