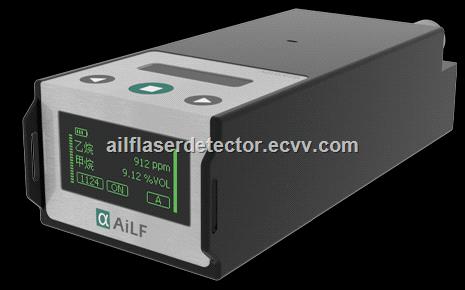

Trolley Installed Portable Laser Methane Detection Combustible Natural Gas Leakage Detector

FOB Price:	7500.00 - 11000.00 USD/Set
Supply Ability:	3,000 Set(s) per Year
Shipping:	DHL Fedex Ups SF

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Place of Origin:	Shandong in China
Packaging Details:	Each unit loads into a suitcase

Quick Details

Brand Name: AiLF
Weight: 1.1kg
Sampling Method: Pump
Size: 208x78x53mm
Alarm type: Light
Name: Portable Laser methane detector
Target Gas: Methane(CH4)
Principle: Laser Absorption Spectrum
Respond time: 0.1s
Range: 0~100%vol
Resolution: 0.5ppm
Power supply: 10Hour
Protection level: IP66
Display Unit: PPM, %LEL, %VOL

Specifications

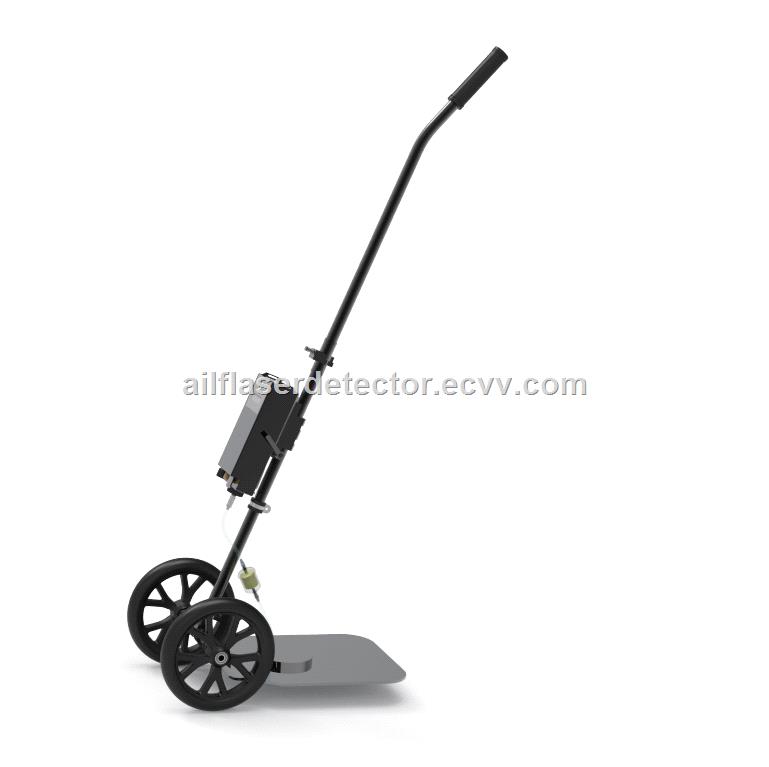

Trolley installed Portable Laser Methane Detection Combustible Natural Gas Leakage Detector

Nationally approved metrological instrumEnts,with accurate and reliable measurements,and clear traceability of metrological standards.
Trolley Installed Portable Laser Methane Detection Combustible Natural Gas Leakage Detector

Laser Absorption Spectroscopy (TDLAS):
the core of these systems is often TDLAS (Tunable Diode Laser Absorption Spectroscopy). this technology emits a laser beam and measures how much of the laser light is absorbed by methane molecules in the air.

Laser technology provides better detection Performance and long service life that tradItional equipments don't have; Combined with mature sampling methods by a trolley or a probe, it makes leak detection rapider and more accurate.
Trolley Installed Portable Laser Methane Detection Combustible Natural Gas Leakage Detector

with the built-in gas reference, the unit Can continuously self-calibrate during Operation to ensure accurate detection.

Full-range detection supports readings of Concentration in ppm, % LEL and %VOL.

Model	G10	Detection Subject	Methane(CH4)
Measuring Principle	Laser Absorption Spectrum	Display Unit	Ppm, %LEL, %VOL
Resolution	0.5 ppm	Explosion-Proof Grade	ATEX Exib IIC T4 GB
Response Time	0.1 s	Operating Temperature	-20 ~ 50 C
Concentration Range	0~100%VOL	Operating Humidity	< 98%RH, no condensation
Enclosure Protection Class	IP66	Main Unit Dimension	208 x 78 x 53 mm
Power supply and Endurance	Lithium battery >10h	Main Unit Weight	1.1 kg
Accessories	Strap, hand-held probe	Optional Accessories	Bell-shaped probe, trolley

Equipped with the gas pump with a higher Flow and efficient filtering system, G10 can Be mounted on an electric bicycle. Combined to be a flexible and convenient Low-speed inspection platform G10V, by Additionally using a L series remote detector.

AlphaOne Intelligent Inspection app Record inspection routes, alarm points and note points. Generate a report after inspection.

Support system integration with outside or customer's network platform.

Examples of applications:
Natural Gas Leak Detection:
Identifying leaks in pipelines, storage tanks, and other natural gas infrastructure.
Industrial Monitoring:
Detecting leaks in chemical plants, refineries, and other industrial facilities.
Environmental Monitoring:
Measuring methane emissions from various sources, including landfills and agricultural activities.
