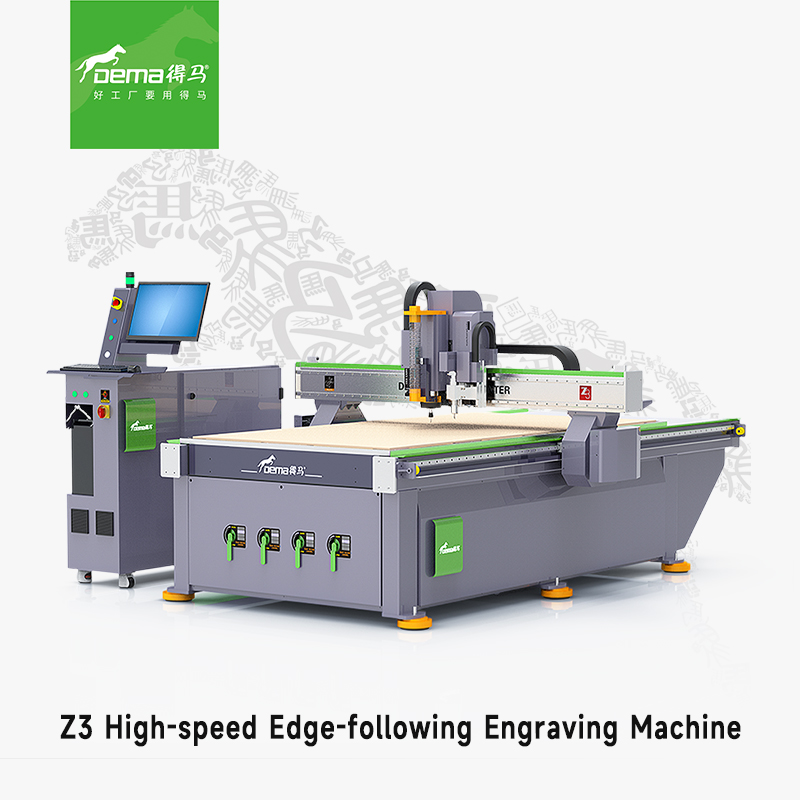

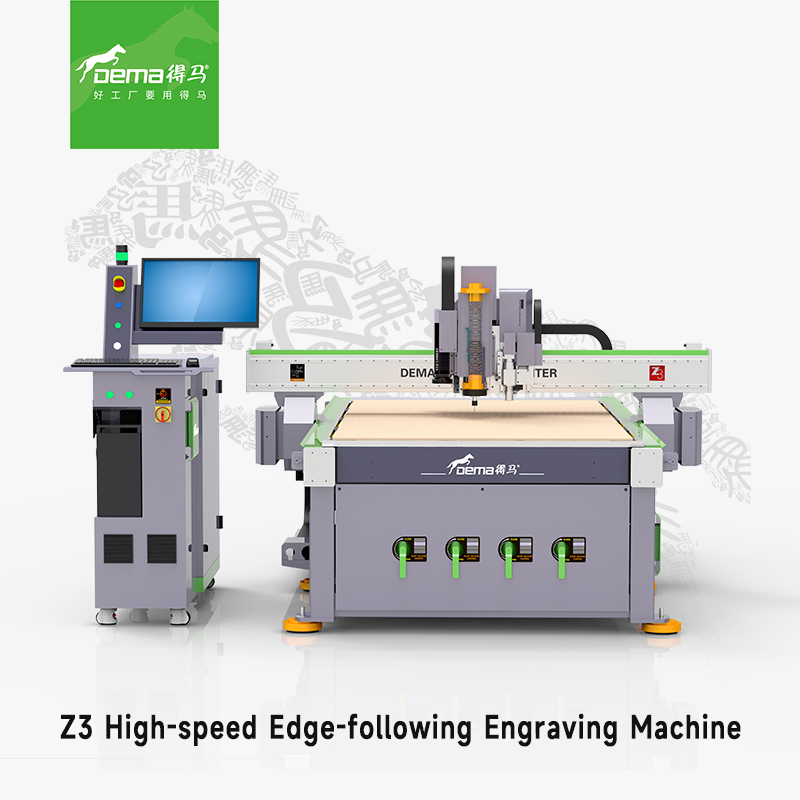

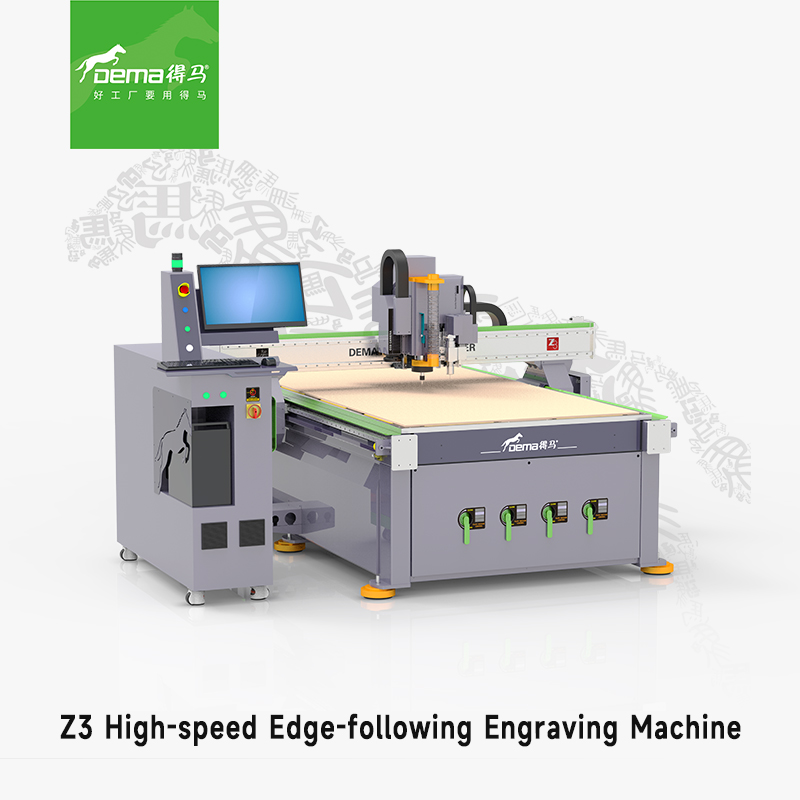

DEMA Z3 High-Speed Edge-Following Engraving Machine

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

After-sales Service Provided: Overseas third-party support available
Warranty: 1 year
Certification: CE
Brand Name: DEMA
Condition: New
Dimension(L*W*H): 2100mm*3300mm*2000mm
Power(W): AC380V/50Hz
Model Number: Z3
CNC or Not: CNC
Machining Dimensions: 1220mm*2400mm
Control system: DEMA V9 Vibration Knife Edge-following Control System
X/Y Transmission Mode: Ground Rack

Specifications

[Parameter]

Z3 High-speed Edge-following Engraving Machine
Model	Z3-1325
Equipment Dimensions	2100mm3300mm2000mm
Machining Dimensions	1220mm*2400mm
Control system	DEMA V9 Vibration Knife Edge-following Control System
X/Y Transmission Mode	Ground Rack
Z Transmission Mode	High-precision Ball Screw
Drive Motor	High-precision Servo
Spindle Motor	4.0kW High-speed Water-cooled Spindle
Vibration Knife	Multi-function Vibration Cutting Module
CCD	Vision Positioning System
Table Structure	Zoned Vacuum Suction
Working Voltage	AC380V/50Hz

[Core Component Configuration]

Rack Dual-drive Structure
the entire machine adopts a unique rack dual-drive structure, which significantly enhances the stability and tensile resistance of the machine tool.

High-flex cable with unyielding durability
Crafted from imported materials, this high-flex cable is engineered to withstand extreme stress, ensuring reliable performance even after millions of repetitive motions. Its robust construction prevents breakage during continuous, high-frequency operations, extending service life and minimizing downtime.

Vacuum-Suction & Clamping Dual-Function Worktable
the worktable features a PVC vacuum-suction surface combined with aluminum alloy clamping grooves, enabling both strong adsorption of materials with varying areas and mechanical clamping.

High-frequency Vibrating Knife
Replaces manual cutting, increasing efficiency by 4 to 6 times compared to manual operations, reducing material waste, and improving material utilization by over 10%. It solves the production challenges of small-batch orders, and is environmentally friendly with no smoke or dust, requiring minimal consumables.

High-speed Machining
Equipped with CCD automatic edge-following control system, featuring high detection accuracy, fast processing speed, strong anti-interference capability, and safe-stable operation.

[Application Industries]

Advertising Industry Applications
Suitable for processing advertising materials such as acrylic, MDF (Medium-Density Fiberboard), double-color board, and PVC foam board.

Sheet Metal Processing Industry
Suitable for processing plastic chemical components, PCB (Printed Circuit Boards), compact laminate sheets, epoxy resin, ABS, PP, PE, and other carbon-based composites.

Craft Industry
Suitable for processing materials such as artificial stone, PVC, wood, bamboo, plexiglass, copper, and aluminum in the craft manufacturing sector.

Furniture Industry
Ideal for cutting and engraving various composite panels used in cabinet doors, wooden doors, rosewood furniture, antique-style furniture, and other woodworking applications.

Decoration Industry
Capable of engraving intricate patterns and text on materials such as screens, wave boards, bamboo, marble, and acrylic sheets for decorative applications.

Electrical Appliance Industry
Suitable for processing insulation structural components commonly used in motors and electrical appliances.

[Sample Display]
DEMA Z3 Highspeed Edgefollowing Engraving Machine
