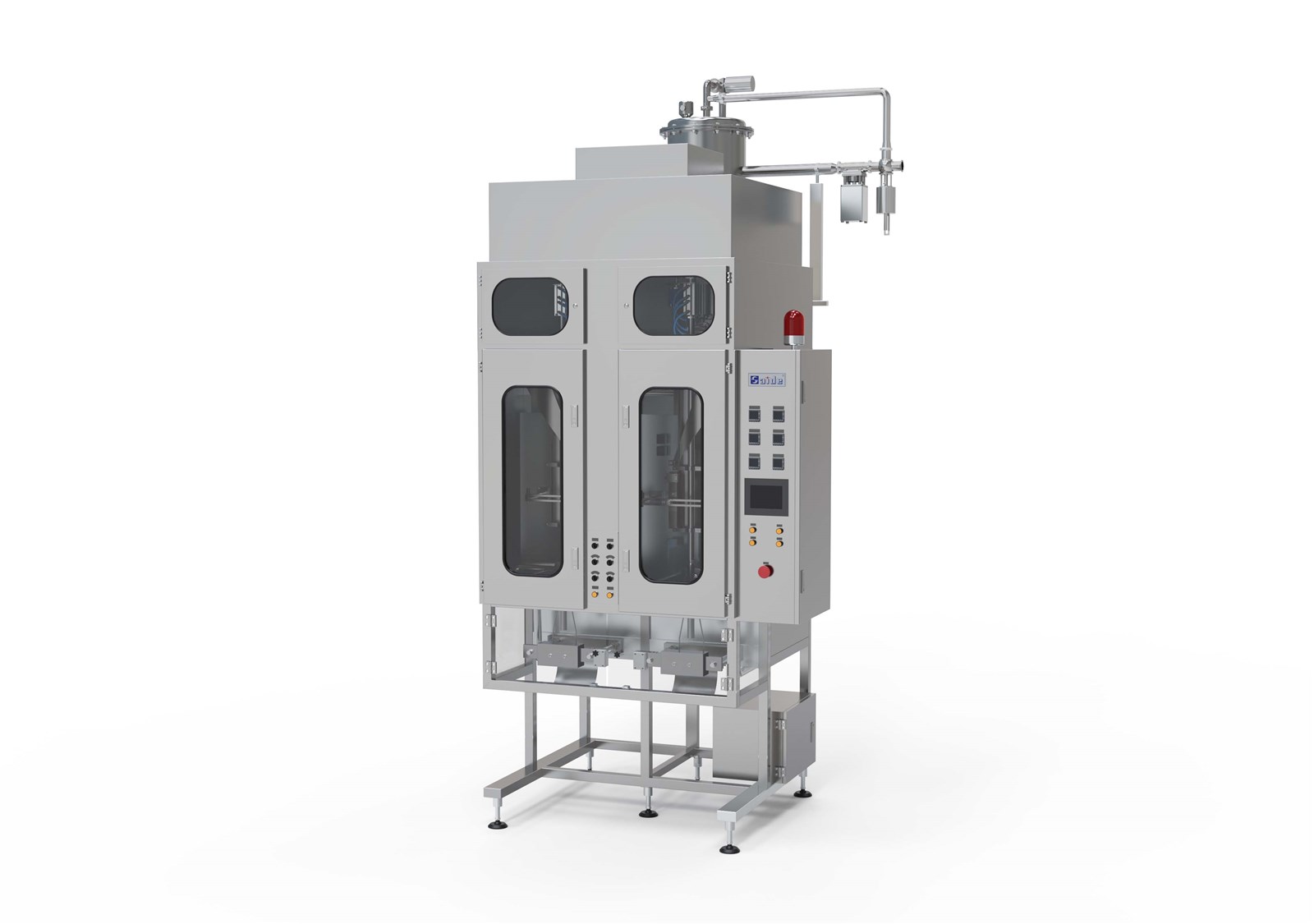

Class 100 Cleanroom Grade Side-Sealing Dual-Head Fully Automatic Liquid Packaging Machine Filling Machines

FOB Price:	25000.00 - 30000.00 USD/Set
Supply Ability:	15 Set(s) per Quarter
Shipping:	FOB
Payment Terms:	T/T

In Stock

Inquiry Now Start Order

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Heilongjiang in China

Quick Details

Type: Filling Machine
Brand Name: saide packaging
Packaging Material: Plastic
Packaging Type: Bags
Application: Beverage,Chemical,Food
Condition: New
Model Number: SJY-IIISC
Automatic Grade: Automatic

Specifications

the following example is for you reference.

1.Brief Introduction:

Main Applications

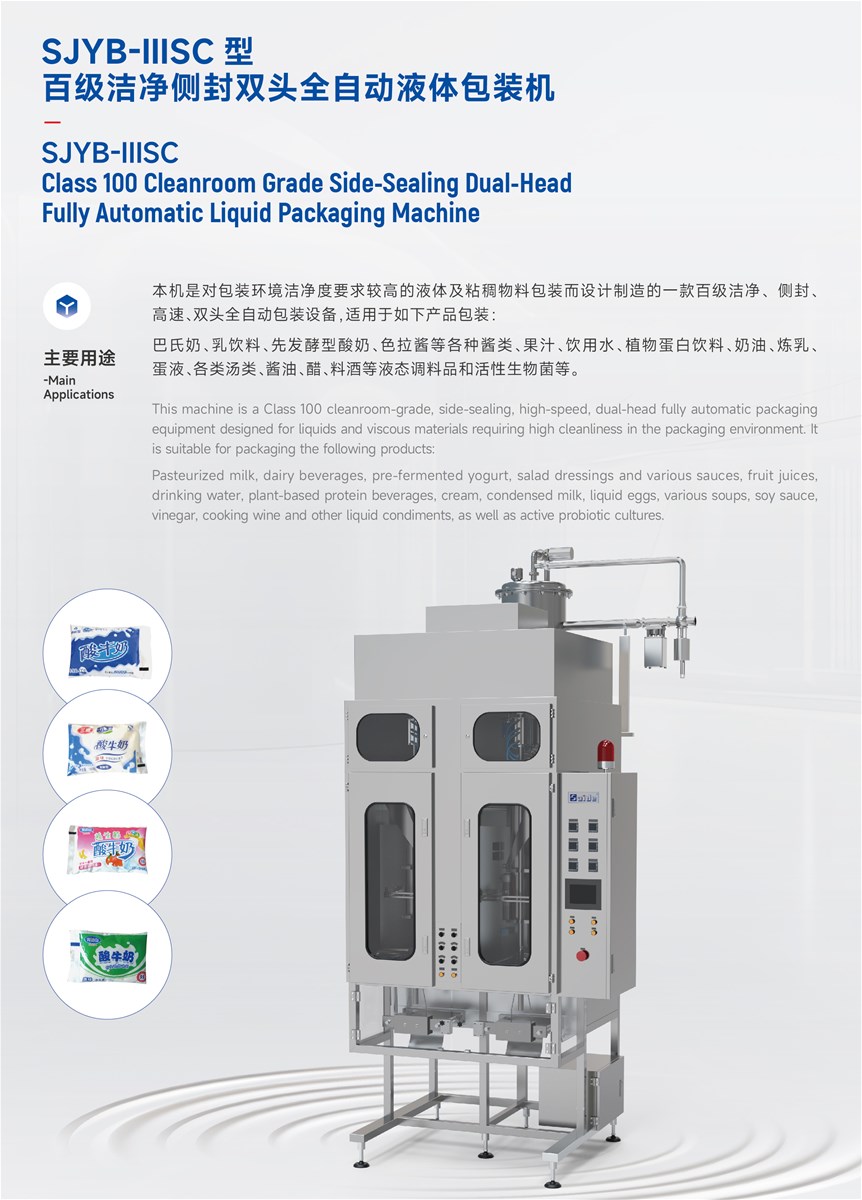

this machine is a Class 100 cleanroom-grade, side-sealing, high-speed, Dual-head fully automatic packaging equipment designed for liquids and viscous Materials requiring high cleanliness in the packaging environment. It is Suitable for packaging the following products:
Pasteurized milk, dairy beverages, pre-fermented Yogurt, salad dressings and various sauces, fruit juices, drinking water, Plant-based protein beverages, cream, condensed milk, liquid eggs, various Soups, soy sauce, vinegar, cooking wine and other liquid condiments, as well as Active probiotic cultures.

Class 100 Cleanroom Grade SideSealing DualHead Fully Automatic Liquid Packaging Machine Filling Machines

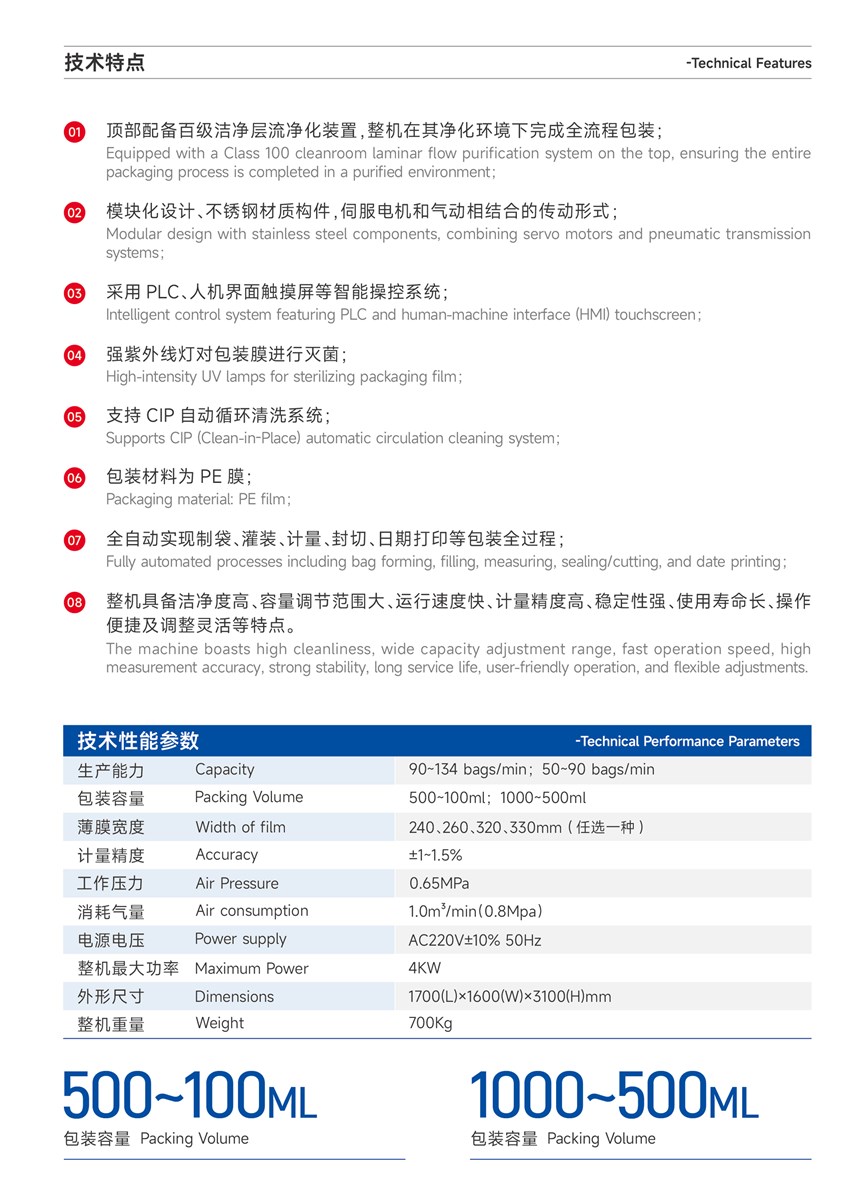

2.Techincal parameters:

Capacity:90~134 bags/min;50~90 bags/min

Packing Volume:500~100ml;1000~500ml

Width of film:240-350mm

Accuracy:±1~1.5%

Air Pressure:0.65MPa

Air Consumption:1.0m3/min(0.8Mpa)

Power supply:AC220V±10% 50Hz

Maximum Power:4KW

Dimensions:1700(L)1600(W)3100(H)mm

Weight:700Kg

3.Performance features:

Technical Features

1. Equipped with a Class 100 cleanroom laminar flow purification system on the top, Ensuring the entire packaging process is completed in a purified environment.

2. Modular Design with stainless steel components, combining servo motors and pneumatic Transmission systems.

3. Intelligent Control system featuring PLC and human-machine interface (HMI) touchscreen.

4. High-intensity UV lamps for sterilizing packaging film.

5. Supports CIP (Clean-in-Place) automatic circulation cleaning system.

6. Packaging Material: PE film.

7. Fully Automated processes including bag forming, filling, measuring, sealing/cutting, and date printing.

8. the Machine boasts high cleanliness, wide capacity adjustment range, fast operation Speed, high measurement accuracy, strong stability, long service life, User-friendly operation, and flexible adjustments.
