Jiangsu Bright Optoelectronic Technology Co,.LTD.

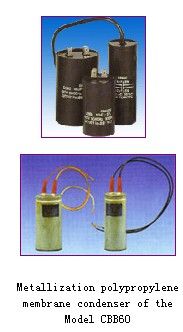

CBB60

Detailed Product Description

Features and Purposes of usage:1.Cylindrical fire-retardant plastic outer case. Welded pads or leads lead-out.2.Small bulk volume. Light weight. Easy and reliable installation. Good spontaneous cure.3.Application of ZnAI edge thickened evaporation technology. Good electric feature. High reliability.4.Large resistance to electric shock. High electric resistance.5.Suitable for start and running of 50Hz/60Hz AC motor. Especially suitable for electric appliances with small motors such as fans.Technical standards:GB3667-97,IEC252-93,UL810,EN60252(VDE0560-8)-91Technical features:1.Climate type:40/070/212.Rated voltage:250VAC,450VAC,500VAC3.Capacity scope:1μF--150μF4.Capacity error allowance:±5%, ±10%5.Loss angle tangent value:≤0.002 (100HZ)6.Withstand voltage:interstage U=1.75Un 10s7.Withstand current:tactful currency I=In X 1008.Inflaming retarding:UL94V-0 level
Specs and Size
Rating Voltage(VAC)
Standard Capability μF
Shape Size
D(mm)
H(mm)
250
1
25
40
2
25
40
4
26
40
6
26
40
8
26
40
10
26
40
12
30
40
15
30
45
20
42
45
25
42
56
30
42
56
35
42
56
450
1
25
56
2
25
40
4
42
40
6
42
56
8
42
56
10
42
66
12
42
66
15
45
80
20
45
80
25
45
100
30
45
100
500
1
25
40
2
25
40
4
42
56
6
42
66
8
42
66
10
42
80
12
42
80
15
45
80
20
45
100
Model No:CBB60
