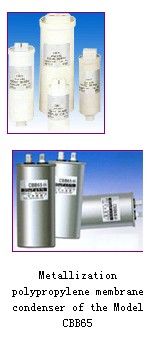

CBB65

Detailed Product Description

Features and Purposes of usage:1.Cylindrical aluminium outer case. With pressure-isolation explosion-proof device. Welded pads lead-out.2.Small bulk volume. Light weight. Easy and reliable installation. Good spontaneous cure.3.Application of P-ZnRx and many other high-tech results. Good electric feature. High reliability.4.Large resistance to electric shock. High electric resistance.5.Suitable for start and running of 50Hz/60Hz AC motor. Especially suitable for application in series-parallel networks of domestic electric appliances such as air conditioners, refrigerators, washing machines and lights.Technical standards:GB3667-97,IEC252-93,UL810,EN60252(VDE0560-8)-91 Technical features:1.Climate type: 40/070/212.Rated voltage:400VAC，450VAC，500VAC3.Capacity scope:1μF-60μF4.Capacity error allowance:±5％, ±10％5.Loss angle tangent value:≤0.002 (100HZ)6.Withstand voltage : interstage U=1.75Un 10s intercase: 2000VAC 10s7.Withstand current: tactful currency I=In X1508.Inflaming retarding: UL94V-0 level
Specs and Size
Rating Voltage
（VAC）
Standard Capability μF
Shape Size
D(mm)
H(mm)
400
10
42
80
12
42
80
15
42
80
18
42
80
20
45
80
22
45
80
25
45
100
30
45
100
33
50
100
35
50
100
40
50
100
45
50
100
450
10
42
80
12
42
80
15
42
80
18
42
80
20
45
80
22
45
80
25
45
100
30
45
100
33
50
100
35
50
100
40
50
100
45
50
100
500
10
42
80
12
42
80
15
42
80
18
45
80
20
45
80
22
45
100
25
45
100
30
50
100
33
50
100
35
50
100
40
50
100
45
55
100

Model No:

CBB65
