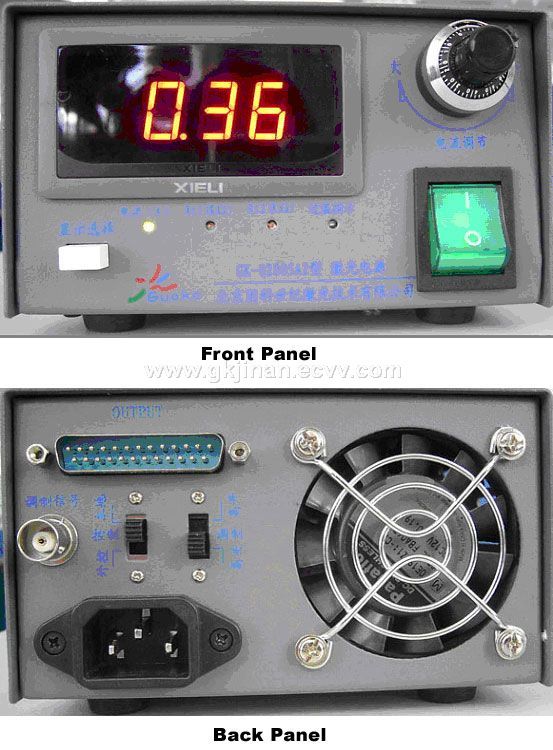

Laser Power Supply

Input voltage :220VAC±15%; Output current:0~5A Current stability: <0.1% Temperature control 1 stability: =0.1KO 5) temperature control 1 adjust range: 5K~20K 6) temperature control 1 maximum voltage:12V Temperature control 1 maximum current :3A Temperature control 2 stability:=0.1KO Temperature control 2 adjust range: 5K~20K Temperature control 2 maximum voltage:12V Temperature control 2 maximum current :3A precision of current display :0.01A TTL modulation maximum frequency :20kHz Analog modulation maximum frequency: 2 kHz TTL high/low level control: ok Voltage surge: no Current surge: no Superheat alarm: ok LD open protection :ok Ripple current : =1% Size:157mm?80mm?55mm

Model No:

GKD-0205M
