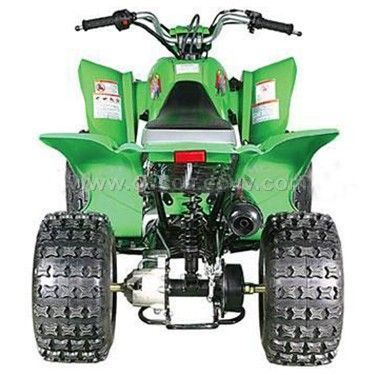

ATV /Quad (ATV-203A)

Specifications: 1) Engine: 110cc, 4-stroke, single cylinder, air cooled 2) Engine displacement(ml): 149/199 3) Bore x stroke(mm): 52 x 49.5 4) Max power(km/rpm): 6/8000 5) Max torque(rpm): 7/6000 6) Minimum fuel consumption(g/kW.h): 367 7) Starting mode: electric start 8) Transmission mode: shaft driven 9) Brake type(front/rear): drum/disc 10) Brake distance(m/30km): 7 11) Shift speed type: four speed gear, with reverse gear 12) Clutch mode: manual clutch 13) Minimum turning radius(mm): 3000 14) Climbing degree: 27 15) Seat height(mm): 670 16) Minimum ground clearance(mm): 120 17) Top speed(km/h): 55 18) Tire dimension(front/rear): AT19 x 7-8/AT18 x 9.5-8 19) Cover material: PP 20) Available colors: red, yellow, blue, green, black Packing: Product dimensions: 1590 x 870 x 990mm Carton dimensions: 1480 x 860 x 760mm N.W.: 130kg G.W.: 155kg Conveyance: Qty/20 GP: 27pcs Qty/40 GP: 64pcs Qty/40 HQ: 64pcs
