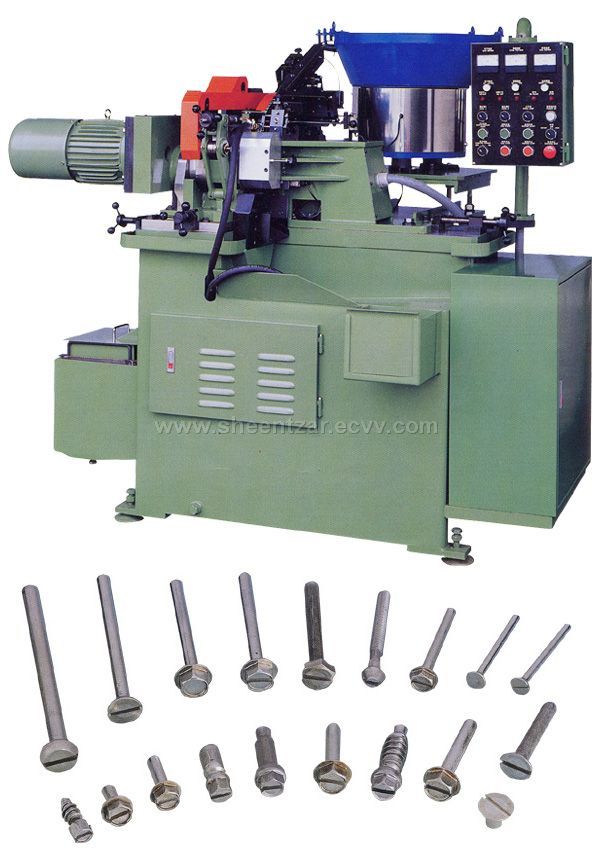

Slotting Machine(two cutter)

Key Specifications/Special Features: 1.Height adiustable items: oscillating platc, track set, material catch, push feeder, and triangular damp set. 2.The material catch can lock up materials to allow for adiustment of the machine. 3.High speed, high accuracy; ensures low wear rates of dies. We have five kinds of Slotting machines: Model Outer Diameter Length (mm) Thread Length (mm) Capacity Thread Die ST-05-38 M2-M5 6-38 25 220-500 75/90x25 ST-06-80 M3-M6 8-80 50 220-350 90/105x25 ST-08-80 M4-M8 10-80 60 160-330 108/127x25 ST-10-105 M5-M10 12-105 60 120-280 150/165x25 ST-12-105 M6-M12 15-105 75 100-200 190/215x25 Standard attachment: cooling system Optional attachments: PLC system, clutch/braking device, inverter speed-changing system, and metal chip separator.
