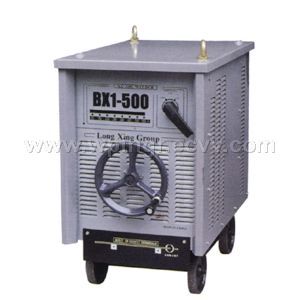

Gas Shield Welder

Model No: BX1-500 Technical Data: Input power (V/Hz)：380V 50Hz Rated input capacity (KVA)：36.5 Rated welding current (A)：500 Open circuit voltage (V)：65-72 Work voltage (V)：40 Current adjust range (A)：90-550 Rated duty cycle (FSe)：60% Insulation：H Weight (Kg)：Horizontal:145 Vertical:141 Dimensions (mm)：Horizontal:810?55?80 Vertical:630?60?30 Feature and Performance: Vertical and horizontal type, adopts high magnetic-flux-leakage transformer, stepless regulation of current, compact structure for easy moving. Applications - low-carbon, medium carbon and low alloy steel.
