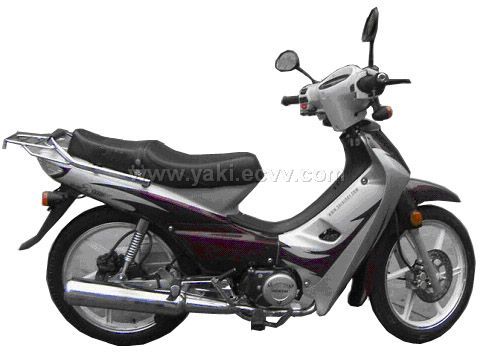

Cub

Detailed Product Description

Model: YK110CB-EC
Engine: 1P52FMH
Engine Type: single cylinder, air-cooled, 4-stroke
Displacement(ml): 107
Bore X Stroke: 52.4 X 49.5mm
Standard Power: 4.5kw/7500r/min
Max. Torque: 7.0N. m/5000r/min
Engine oil capacity(g/kW.h):≤367
Starting: electric/kick
Drive: chain drive
Brake(front/rear):disk/drum
Brake Distance(m/30km):≤7.00
Gearshift model: 4 forward
Clutch: automatic clutch
Dimension(L X W X H)(mm):1835 X 715 X 1100
Turning radius(mm):1240
Climbability:≥18°
Ground clearance mini(mm):135
Max.Speed(km/h): ≥75
Tyre Size(front/rear):250-17 / 275-17
Net Weight(kg):89
Gross Weight(kg):114
Packing Size (mm) 1660 X 460 X 760

Model No:
