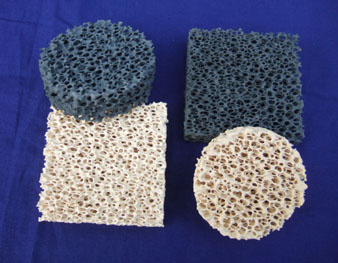

Ceramic Foam Filter

CERAMIC FOAM FILTER is been made by specific procedures and have peculiar bone-frame holes just like the shape of foam(Called three-dimensional connected channel) and myriad eyelets which only been found in big times microscope. Its function and advantages are listed as below: 1.Mechanic deterring: removing big oxidated impurities
2.Filter function: filtrate small inclusions
3.Deep absorbability: the eyelets which only been found in big times microscope can absorb smaller impurities, make the metal liquid more purged
4.Commutated function: calm down turbulent ?laminar flow
5.Prevent whirlpool
6.Ease-up impact, decrease drop gravel We can get these results after using our products:
7.Improve the rate of measuring up availably
8.Ameliorate product's crystalloid structure
9.Improve machine function 10.Predigest moulding system CFS
Technical data
Material Silicon carbide  Fused
            Zirconia-alumina
Density
(PPI)    8-30      8-30
Porosity(%) 90       80-90
Refractoriness
(℃)     1450      1600
Rending Strength
(MPa)     1.0      0.8-1.0
Thermal Shock
Resistance
(次/1100℃)  ≥6       ≥7
The dimension is acted by your request

Place of Origin:	China
Model No:	ZSJ-2006
Brand Name:	"Huling" Brand in Chinese
