Detailed Product Description

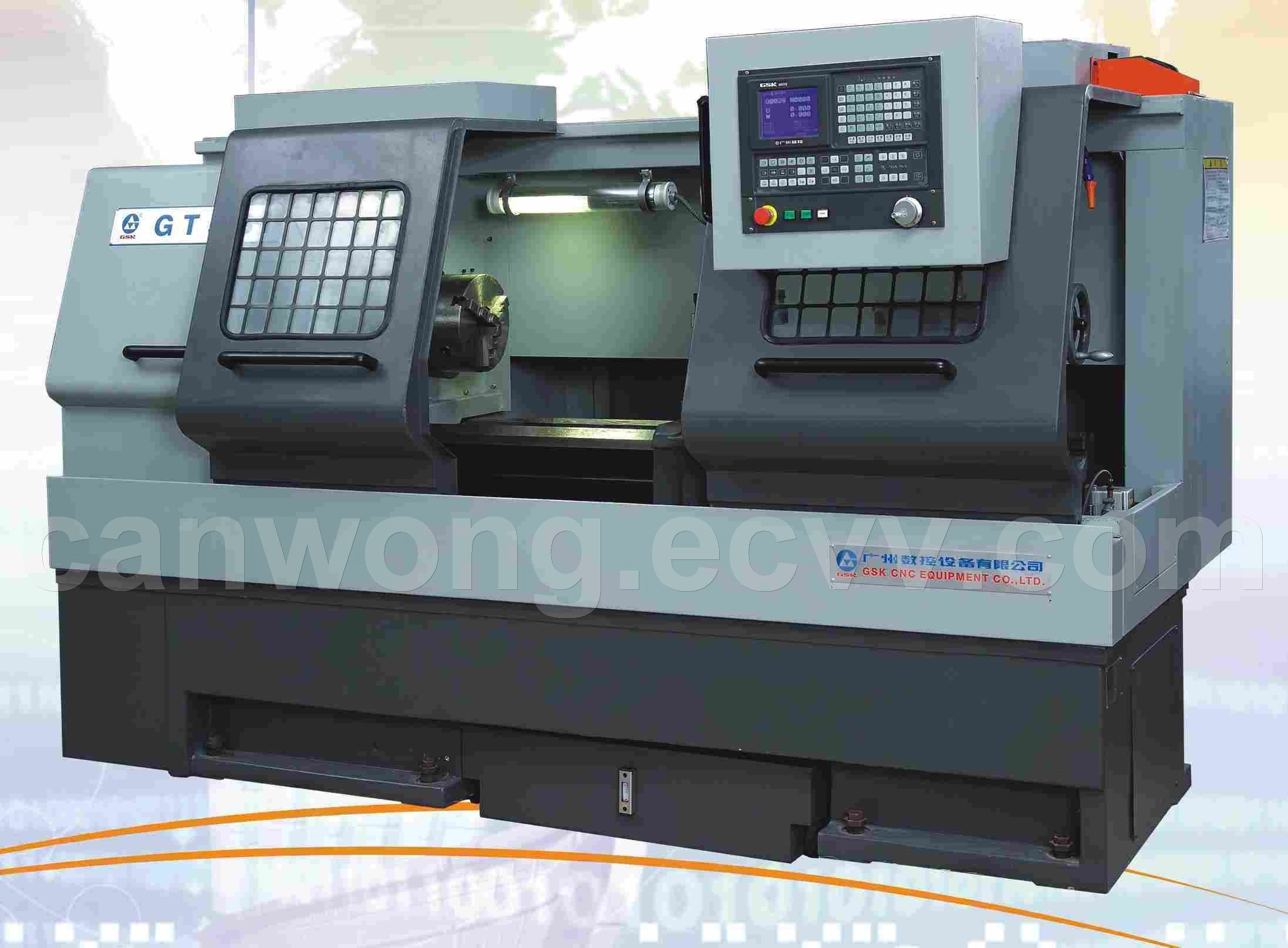

GT53i CNC Lathe
Specification (GT53i)
Capacity:
1. Max. swing over bed (mm)530
2. Max. swing over carriage (mm) 280
3. Max. turning Dia. (mm) Shaft:280 Disk:370
4.Distance between centers (mm) 860 (or 1000 or 1500 optional)
5.Max. turning length (mm) 770 (or 930 or 1440 optional)
Spindle:
1. Spindle speed (r/min) Manual four step 25~2000 (150~3000 frequency convert, Optional)
2. Max. bore Dia. (mm) 80
3. Spindle bore taper (MT) Type A (C) ASA350
4. Power of spindle motor (Kw) 7.5
Chuck:
1. Dia. of chuck (mm) 250 manual; (Hydraulic, Optional)
2. Bar machining ability (mm) 80
Travel:
1. Rapid speed of X. Z axis (m/min) X: 6 Z: 10
2. Max. Travel of X. Z (mm) X: 260 Z: 770 (or 930 or 1440, Optional)
3.Servo motor power (kW) X: 1.2 Z: 1.8
Tool post
1. Turret: 4-station (or 6-station 8-station, Optional)
2. Tool size (mm) 25x25 for turning; 32 for boring
Sleeve:
1.Dia. (mm) 65
2.Travel (mm) 180
3.Taper (MT) 4
Others:
1. Overall dimension (L*W*H) (mm) 2930/3440*1502*1750
2. Machine weight (Kg) 3400
3. CNC system GSK 980TD/DA98
| Place of Origin: | Guangdong Guangzhou in China |
| Model No: | GT53i |
| Brand Name: | GSK |
| Minimum Order: | 1PC |
| Supply Ability: | 80PCS/YEAR |
| Package: | Standard export packing |
| Delivery Time: | 70 |
