CNC Milling Machine

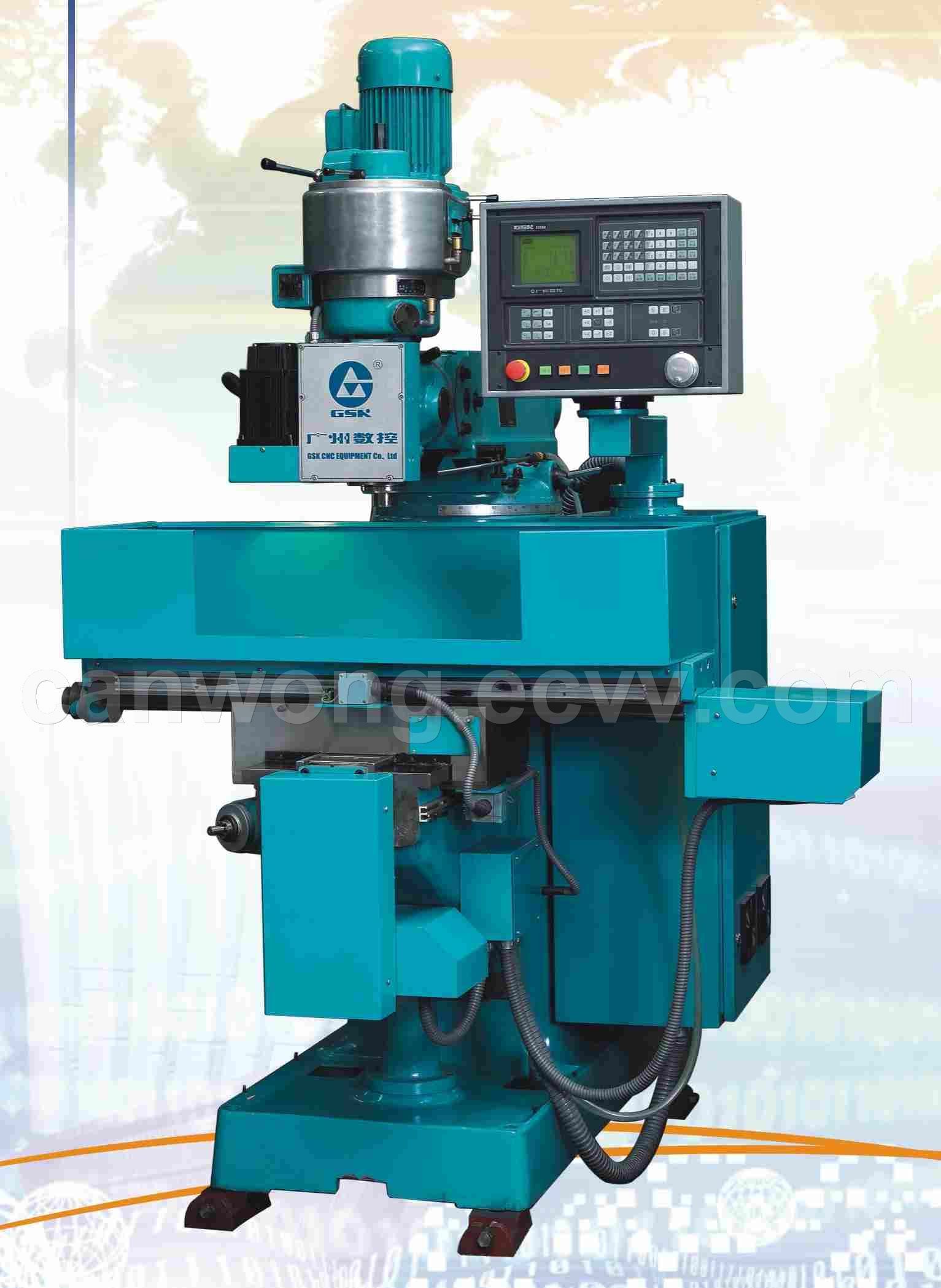

XJK6330A CNC milling machine
Specification:
CAPACITY
1.Worktable Size (mm) 300x1270
2.Amount/Width/Pitch of T-slot (mm) 3/14/80
3.Max. worktable load (kg) 400
MAX. TRAVEL
1.X-axis 850/950mm
2.Y-axis 300mm
3.Z-axis 110mm
4.Beam travel: 580mm
5.Beam rotation angle: +-30 degree
SPINDLE
1.Distance from spindle nose to worktable 42~442mm
2.Distance from Spindle center to column 205-605mm
3.Speed (rpm) 65~4760; 16 grades
4.Motor power: 2~2.4kw
5.Spindle nose taper: R8
6.Rotation angle of milling head (ZX/ZY-face): 90/45 degree
OTHERS
1.Overall dimension(LxWxH) 2005x1895x2090mm
 weight: 1400kg
C system: GSK218M or GSK983M

Place of Origin:	Guangdong Guangzhou in China
Model No:	XJK6330A
Brand Name:	GSK
Minimum Order:	1PC
Supply Ability:	150PCS/YEAR
Package:	VENEER BOX
Delivery Time:	50
