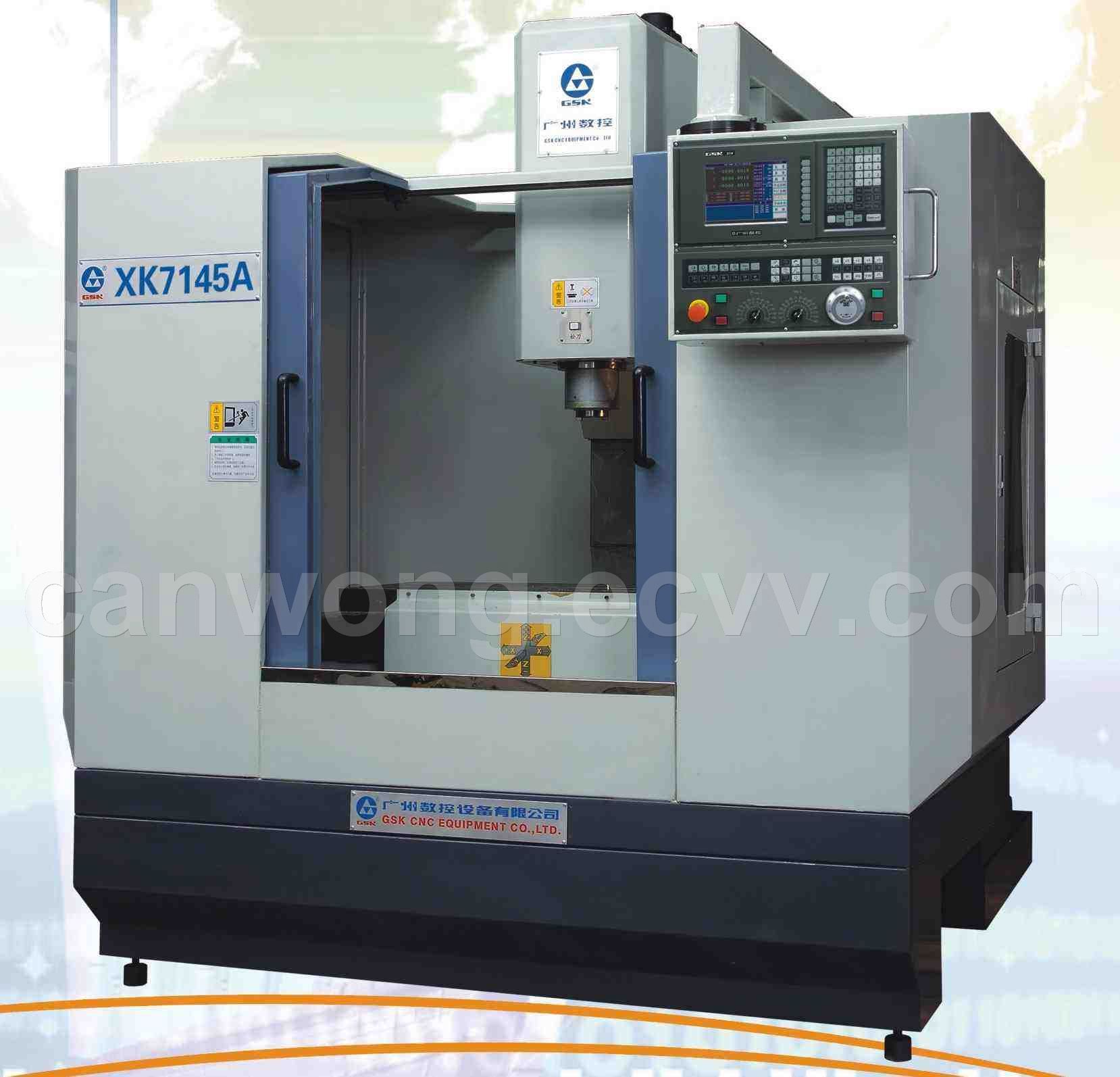

CNC Milling Machine/machining center

Detailed Product Description

CAPACITY of XK7145A
1. Worktable Size (mm) 1000x450
2. Amount/Width/Pitch of T-slot (mm) 3/18/125
3. Max. Worktable load (kg) 600
MAX. TRAVEL
1. X-axis 600mm
2. Y-axis 450mm
3. Z-axis 460mm
RAPID SPEED (m/min)
1. X-axis 12
2. Y-axis 12
3. Z-axis 10
SPINDLE
1. Distance from spindle nose to worktable 145~645mm
2. Distance from Spindle center to column 460mm
3. Speed (rpm) 6000
4. Motor power: 5.5kw
5. Spindle nose taper: BT40
OTHERS
1. Positioning accuracy: (mm) 0.008
2. Repositioning accuracy: (mm) 0.004
3. Overall dimension(LxWxH) 2500x2000x2450mm
4. Net weight: 4400kg
5. CNC system: GSK983M
Remark: Machining center XH7145A is adding 16-tool umbrella type based on above specification.

Place of Origin:	Guangdong Guangzhou in China
Model No:	XK7145A
Brand Name:	GSK
Minimum Order:	1PC
Supply Ability:	80PCS/YEAR
Package:	VENEER BOX
Delivery Time:	90
