CNC Lathe

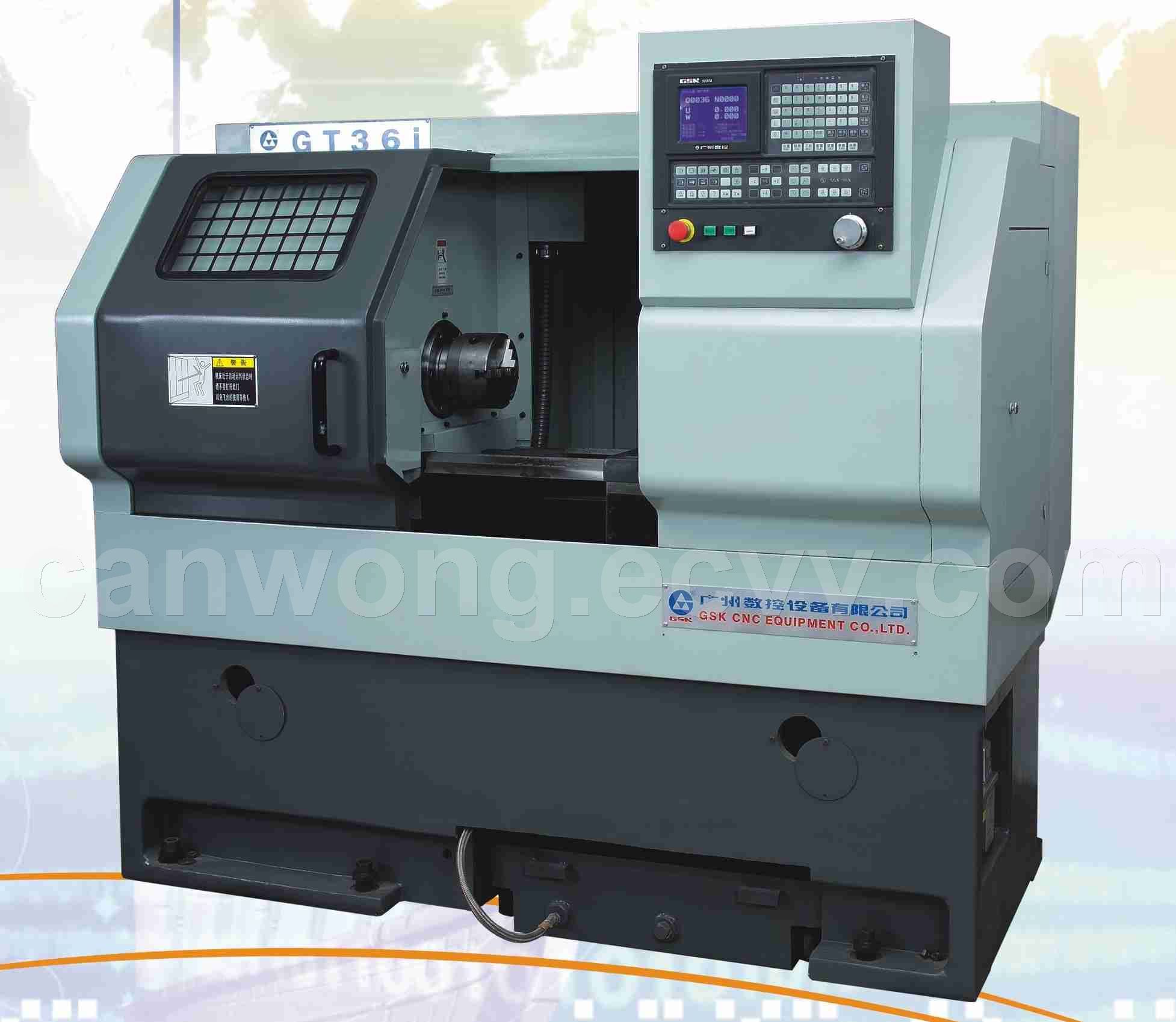

GT36i CNC Lathe
This is a very good CNC lathe machine with high accuracy and stability.
Specification (GT36i)
Capacity:
1. Max. swing over bed (mm)360
2. Max. swing over carriage (mm)160
3. Max. turning Dia. (mm)360
4.Distance between centers (mm) 570 or 1000 (optional)
Spindle:
1. Spindle speed (Stepless) (r/min)150~3000
2. Max. bore Dia. (mm)52
3. Spindle bore taper (MT) No. 5
4. Power of spindle motor (Kw) 5.5
Chuck:
1. Dia. of chuck (inch) 6
2. Bar machining ability (mm) 28
Travel:
1. Rapid speed of X. Z axis (m/min) X: 6 Z: 8
2. Max. Travel of X. Z (mm) X: 210 Z: 490
3.Servo motor power (KW) X:0.5 Z:0.9
Tool post
1. Turret: 4-station or 6-station (optional)
2. Tool size (mm) 20x20
Sleeve:
1.Dia. (mm) 60
2.Travel (mm) 120
3.Taper (MT) 4
Others:
1. Bearing: NSK
2. Overall dimension (L*W*H) (mm) 2120*1330*1790
3. Machine weight (Kg) 1750
4. CNC system GSK 980TD/DA98

Place of Origin:	Guangdong Guangzhou in China
Model No:	GT36i
Brand Name:	GSK
Minimum Order:	1PC
Supply Ability:	150PCS/YEAR
Delivery Time:	60
