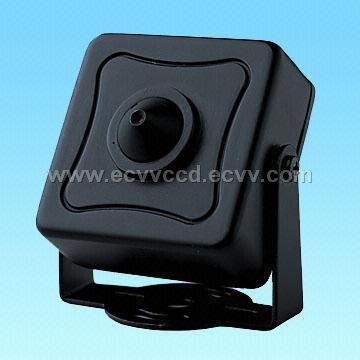

CCTV Miniature Cameras with Pinhole Lens

Model

UV-8001

UV-8002

UV-8003

UV-8008

UV-8005

UV-8006

Pickup device

1/3" Color Sony CCD

1/3" Color Sony CCD

1/3" Color Sharp CCD

1/4" Color Sharp CCD

1/4" Color Sharp CCD

1/3" Color LG CCD

Number of pixels

PAL:752(H) x 582(V) NTSC: 768(H) x 494(V)

PAL:512(H) x 582(V) NTSC: 512(H) x 492(V)

System of signal

PAL/NTSC

Horizontal resolution

520TV Line

420TV Line

Minimum illumination

0.8Lux

Lens

3.7mm Pinhole lens or 3.6mm lens optional

Backlight compensation

Auto

Electronic shutter

NTSC: 1/60~1/10.000Sec  PAL: 1/50~1/10.000Sec

AGC

Auto

White balance

Auto

S/N ratio

More than 48Db (AGC off)

Gamma correction

>0.45

Operation temperature

-20℃~50℃

Sync system

Internal/System

Video output

1.0Vp-p (75Ω, composite)

Power consumption

DC12V, ≤500mA
