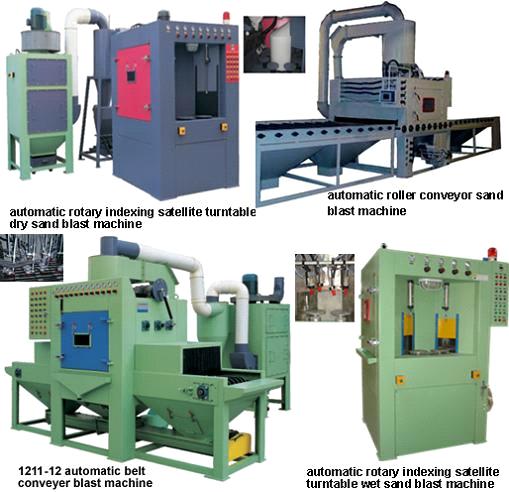

Automatic belt conveyer blast machine consists of cabinet enclosure, oscillating system, twelve automatic suction blast guns, one manual blow-off gun, two cyclone reclaimers, dust-collector, belt conveyer system and control system, etc. It's suitable for automatica precise repeatable blast processing surface of small size components with or without complex profiles with no part-on-part contact possible, application ranges from delicate deburring to shot peening for small to middle scale production. Large working chamber allows more options for gun placement and more room for maintenance. Product Feature Capability to blast all sides of part simultaneously except for bottom Sturdy,3mm thick mild steel blast cabinet for reduced maintenance and long life Single and multiple nozzle manipulation to direct media stream at specific part locations Adaptability for different size (46#-90#) of nonmetal media to meet different process needs Belt Conveyers to move parts through the cabinet Two adjustable cyclone reclaimers and one helix reclaimer for handling blasting media to reduce mdeia consumption. Integral ventilation and dust collection Product Specification/Models Processable Components: Length: 150mm max, Width: 650mm max, Height: 200mm max. Process capability: 0.2～2m/min Dimension: 3400mm x 1100mm x 2510mm（L x W x H） Main cabinet: 1200 x 1100 x 1730mm （L x W x H） Working chamber: 1200mm x 1100mm x 700mm （L x W x H） Window: 315 x 215 x 3mm. Conveyor frame: 1100 x 800 x 950mm, 2pc Cyclone reclaimer: dia 500 x 650mm, 2 pcs Blasting gun: 12 pcs, boron carbode nozzle, dia 8mm Blowoff gun: 1pc, nozzle dia 4mm Illuminance: 220V, 15W. Exhauster motor: 3KW. Conveyer moto: 750W. oscillating motor: 750W. Helix reclaimer motor: 750W. Reclaimer: 44～87m3/min. Duct colletor: 1000 x 1000 x 1860mm, 4 filter cartridges dia 325 x 600mm, pneumatic shake dust. Weight: 1350kg. Compressed air source requirement: 5-7bar; 10-15m3/min.
Automatic Roller Conveyor sand Blasting Machine is specially Developed for processing of long and flat steel sheets, glass sheet. The Sheets are ontinuously passing through the basting Chamber on a special roller Conveyor.
Automatic Roller Conveyor sand Blasting Machine consists of a big cabinet enclosure, oscillating system,multiple automatic suction blast guns, one manual blow-off gun, two cyclone reclaimers, dust-collector, roller conveyer system and control system, etc.
Multiple blast automatic guns are fixed on the blast cabinet move horinzlly over the sheet to produce a smooth, a sericeous surface, a bright shine appearance.
Specification:
Model: 1821-4
1) Processable component
Length x Width x Thickness: 2200 x 1300mm x 0.5mm-22mm
Process capability: 30 SQM/h approx.
Dimension: 10300mm x 2100mm x 2300mmL x W x H
Main cabinet: 1800 x 2100 x 2010mm L x W x H
Working chamber: 1800mm x 2100mm x 1000mm L x W x H
Conveyor frame: 4000mm(L)x2300mm(W)x960mm(H), 2PC
Cyclone reclaimer: Dia 500 x 1500mm
Blasting gun: 4 PCS, moving horizontally
Blow-off gun: 2 PCS.
Illuminance and control: 0.2W.
Exhauster motor: 5.5kw.
Conveyer motor: 0.75kw.
Gun oscillating motor: 0.4kw.
Duct colletor: 1300 x 1200 x 2170mm, 6 filter cartridges, pulse cleaned.
Compressed air source requirement: 5-7bar; 8cbm/min.
Electrical configurations are available to customers' system compatible with local power systems.
Automatic rotary indexing satellitic turntable sand blast machine consists of cabinet enclosure, a indexing turntable with eight or twelve rotary satellites, oscillating system, eight automatic suction blast guns, one automatic blow-off gun, reclaimer separator, dust-collector and control system, etc.
It's suitable for automatica precise repeatable blast processing surface of small size components with cones or cylinder shape with no part-on-part contact possible, application ranges from delicate deburring to shot peening for small to middle scale production.
Large working chamber allows more options for gun placement and more room for maintenance.
Turntable comes either for two-station or three-station indexing. Two-station indexing puts two parts in each of the blast, blow-off, and load positions, three-station indexing puts three parts in each of the blast, blow-off, and load positions.
| Model |
1820 |
1518 |
1416 |
| Cabinet (WxDxH mm) |
1800x2000x2000 |
1500x1800x2000 |
1400x1600x2000 |
| Blast Chamber (WxDxH mm) |
1750x1950x800 |
1450x1750x800 |
1350x1550x800 |
| Loading area |
380x380 |
310x310 |
280x280 |
| Turntable |
dia,mm |
1350 |
1150 |
1050 |
| loading kg max |
250 |
200 |
200 |
| processed parts(DiaxH mm max) |
350x350 |
280x280 |
250x250 |
| Satellite |
8 |
8 |
8 |
| Blast gun |
8 |
8 |
8 |
| Blow-off gun |
2 |
2 |
2 |
| Reclaimer (Kw) |
7.5 |
5.5 |
5.5 |
| Air source: |
Pressure bar |
0-7 |
| Flow m3/min |
8 |
8 |
8 |
| |
| Model |
1316 |
1014 |
1212 |
| Cabinet (WxDxH mm) |
1300x1600x2000 |
1000x1400x2000 |
1200x1200x2000 |
| Blast Chamber (WxDxH mm) |
1250x1550x800 |
950x1350x800 |
1150x1150x800 |
| Loading area |
260x260 |
180x180 |
180x180 |
| Turntable |
dia,mm |
1000 |
800 |
800 |
| loading kg max |
200 |
150 |
150 |
| processed parts(DiaxH mm max) |
230x230 |
150x150 |
150x150 |
| Satellite |
8 |
8 |
8 |
| Blast gun |
8 |
4 |
4 |
| Blow-off gun |
2 |
2 |
2 |
| Reclaimer (Kw) |
5.5 |
3.0 |
3.0 |
| Air source: |
Pressure |
5-7 bar |
| Flow |
8 m3/min |
4 m3/min |
4 m3/min |
Automatic rotary indexing satellite table wetblast machine consists of cabinet enclosure, a indexing turntable with eight rotary satellites, oscillating system, four automatic suction blast guns, sand pump and PLC control system, etc
It's suitable for automatica precise repeatable blast processing surface of small size components with cones or cylinder shape with no part-on-part contact possible, used for cleaning and finishing all kinds of parts, produce a smooth, a sericeous surface, a bright shine appearance.
Large working chamber allows more options for gun placement and more room for maintenance.
Turntable comes two-station indexing, two parts in each of the blast, and load positions.
PLC controlled Wetblast Cabinet with 8 work piece holding satellites.
two blast sections with automatic oscillating guns angled for targeted blasting.
Workpiece moves in a rotary motion during oscillated blasting for complete coverage.
During blasting the 2 processed work piece stops at the entry bay for unloading and 2 new work pieces can be loaded.
Features:
100% 304 stainless steel construction
Pnueumatic & electrical control panel for work piece door entry
PLC controls work piece rotary motion, blast gun oscillation for effective blasting. Indication panel displays all ovements
Sepcifications:
Main cabinet: L1200xW1200xH2000
Indexing table: dia 800mm, Speed: 3rpm, motor 750W
satellite: dia 150mm, speed: 0-60rpm, motor: 750W
Blasting gun oscillating system: motor 750W, spped: 6.5rad/s
Blast gun: 4
Application parts: Dia150mm x H200mm max, weight" 200kg max.
| Place of Origin: | Shenzhen in China |
| Model No: | 1820, 1212 |
| Brand Name: | Shenzhen kaite |
