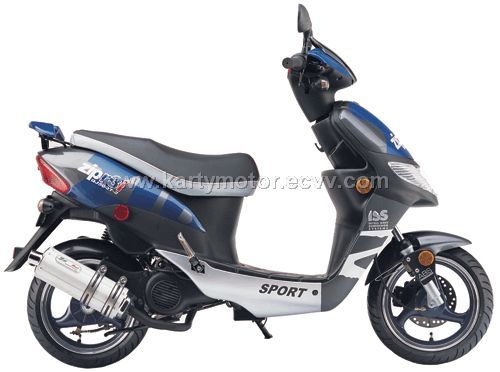

Engine Horizontal, single cylinder - 4 stroke - 50cc
Cooling system air cooled
Bore x stroke 39 x 41.4 mm
Cylinder capacity 49.5 ml
Compression ratio 9.2 : 1
Fuel unleaded petrol
Ignition electronic CDI
Start electric and kick start
Clutch Automatic centrifugal dry clutch
Rated power 2.0kw(7000r/min)
Max power 2.4kw (8000r/min)
Max torque 3.0N.m (6000r/min)
Frame steel tube jointing structure
Front brake disc
Rear brake drum
Front tyre tubeless 3.50-10
Rear tyre tubeless 3.50-10
Rim material aluminium alloy
Front suspension telescopic hydraulic fork
Rear suspension single hydraulic helix spring
Max length 1740mm
Max width 620mm
Max height 1035mm
Wheelbase 1210mm
Max speed 60km/h
Dry weight 76 kg
Max load 80kg

Place of Origin:	Wuxi in China
Model No:	KT50QT-A
Brand Name:	Karty
