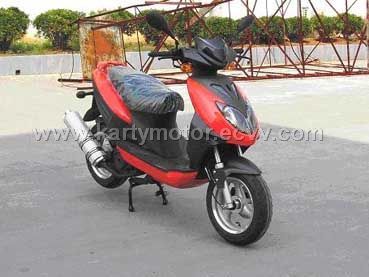

B09

L*W*H:  1840*680*1190mm
Wheel Base:  1265mm
Dry Mass:  100Kg
Ground Clearance:  110kg
Engine Style:  Single cylinder,4 stroke, air-cooling
Engine Type:  152QMI,157QMJ
Bore * Stroke:  52.4mm*57.8mm, 57.4mm*57.8mm
Compression Ratio:  9.2 ：1
Rated Power:  5.2kw/7000r/min, 5.9kw/7000r/min
Ignition:  CDI
Starting Mode:  Electric and kick starter
Clutch Dry:  centrifugal
Front Tire:  120/70-12
Rear Tire: 120/70-12
Battery:  12V 7Ah
Max Speed:  80km/h, 85 km/h
Economic Fuel Consumption:  2.8L/100km, 2.9L/100km
Max Load:  150kg
Fuel Tank:  5L

Place of Origin:	Wuxi in China
Model No:	KT150T-9
Brand Name:	Karty
