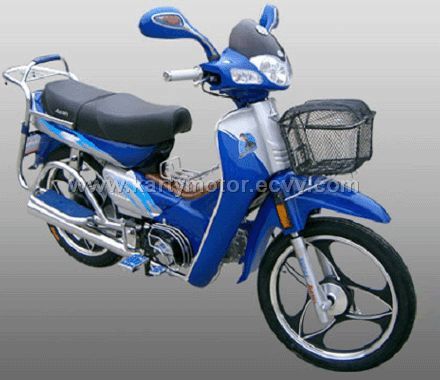

Kt110-d

L x W x H: 2020x740x1130(mm)
Wheelbase: 1250mm
Max speed: 75km/h
Dry weight: 88kg
Max load: 150
Front brake: drum by handle
Rear brake: drum by pedal
Ignition: electronic CDI
Front tyre: 2.50-17
Rear tyre: 2.75-17
Engine: laying,1 CYL,4 stroke
Cylinder capacity: 97.2ml
Bore x stroke: 50x 49.5 mm
Rated power: 4.8kw/7000(r/min)
Max power: 5.3kw/8000(r/min)
Max torque: 6.8N.m/5500(r/min)
Cooling system: air cooled
Start: electric and kick start

Place of Origin:	Shanghai Shanghai in China
Model No:	KT110-D
