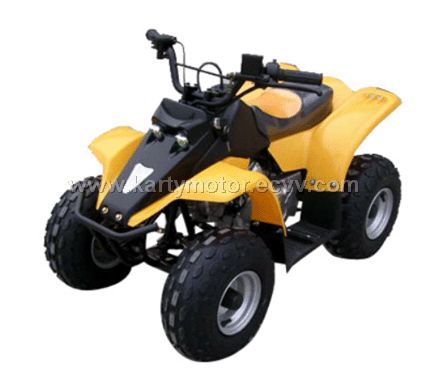

KT ATV-50S

Dimension 1100 x 650 x 750 mm Net Weight: 69Kgs Max Speed: > 40km/h Climbing ability: > 15 Degree Max loading: 80kgs Distance between axles: 690 mm Distance between front wheels: 420 mm Distance between rear wheels: 510 mm Ground clearance: 110 mm Specification of Front Wheel: 145/70-6 Specification of rear Wheel: 145/70-6 Type of Engine: 50cc single-cylinder,4 stroke Displacement: 49ml Rated Power and Rotate Speed 2.3kw/8500rpm.approx Max Torgue and Rotate Speed: 2.7N.m/6500r/min compressing Ratio: 7:1 Transmission:fully auto clutch & 4speeds semi auto Starting system: electric start and kick-back start Cooling system: Air cooling Oil Tank: 3.4L Carton: 1140 x 670 x 640 mm Gross Weight: 84Kgs 20' container 48 units 40?ft container 102 units 40'HQ container 136 Units

Place of Origin:	Wuxi in China
Model No:	KT-50S
Brand Name:	Karty
