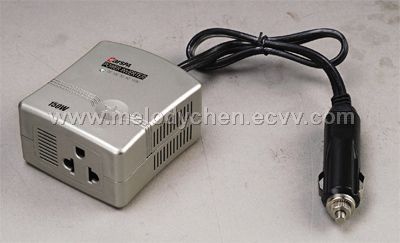

Auto Power Inveter(150W)

Model:Auto Power Inveter(150W)
Product Features :
1,Low voltage alarm and shutdown.
2,Over voltage shutdown.
3,Over load protect.
4,Short-circuit protect.
5,Over heat protect.
6,Reverse polarity protect.
7,Advanced heatsink design and optimum component layout.
8,Standard AC outlet.
9,LED red/green indicator.
10,Super Surge capacity to start difficult loads.

  Name of product   Power Inverter(DC-AC)
  Specification Type   CAR1500
  Max long term power output   150 watt
  Spike output power(peak)  300 watt
  Input voltage range   DC 10V~15V
  Output frequency   AC110-120v/AC 220-240V
  Output waveform   50Hz?
  Output waveform   Modified sine wave
  Optimum efficiency   More than 90.5%
  No load current draw   Less than or equal to 0.25A
  Cooling Fan   Yes
  Input over voltage shutdown   15~15.8V
  Input under voltage shutdown   9.5~10V
  Overload shutdown  More than 250 Watt
  Working Temperature  -5~50 degrees centigrade
 Measurement(mm) 80?0?2.5

Place of Origin:	Zhejiang Yueqing in China
Model No:	150W
Brand Name:	OEM
