Detailed Product Description
Optical Infinity Corrected Optical System
Head Gemel type of binocular head,30'' inclined
Gemel type of trinocular head, 30'' inclined
Gemel type of binocular head, 30'' ~60'' inclined(Designing)
Eyepiece PL10X22mm high eye-point plan eyepiece
Nosepiece Reversed quintuple nosepiece, reversed quadruple nosepiece for optional.
Objective Infinity plan achromatic objective 4X,10X,20X,40X,100X.
Plan phase contrast objective 10X,20X,40X,100X
Focus lowerness locate Coaxial focus system
Stage 175mm *145mm mechanical stage, adjusting for right or left hand.
75mm * 50mm moving range.
Condenser N.A.1.2/0.22 swing achromatic condenser
N.A.1.25 five position phase contrast condenser
N.A.0.9 dry darkfiled condenser.
N.A. 1.25 wet drakfiled condenser.
Illuminator Built-in koehler illuminator systems. 6V/30W halogen bulb,adjustment of brightness.

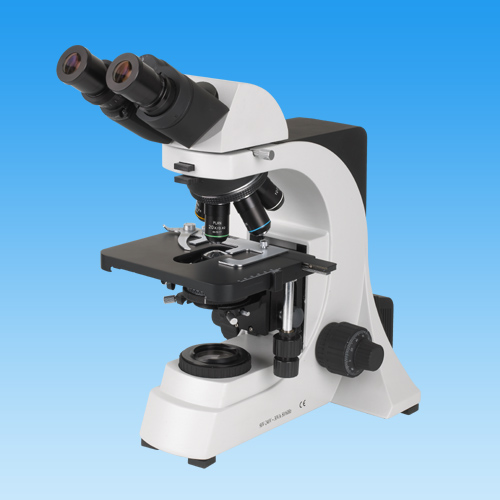

| Model No: | XY series clinical biological microscope |
